8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching

China 8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching supplier
8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching supplier 8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching supplier 8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching supplier 8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching supplier 8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching supplier 8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching supplier

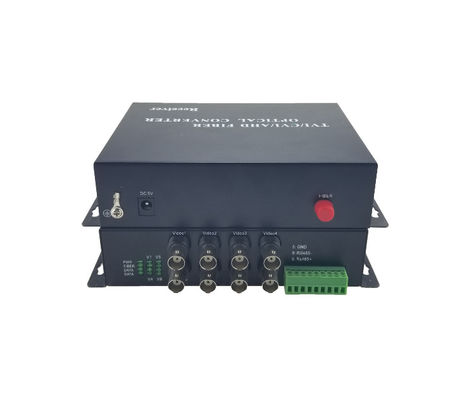

Large Image :  8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Quality: 3 Year Size: 180*85*32
Sample Order: WELCOME Others: TVS For Surge Protection
Application: CCTV/Protection/monitor Ect Fuction Support: Video,Audio,date,hd-sdi,AVI,AHD,HDMI
Network Port: WDM Optical Video Port: 1 Channel 1080P High Resolution
Control Port: RS-485

8CH AHD HD-AHD Video/Audio/Data Fiber Optical Transmitter and Receiver for fiber optical long distance range



Product Description



Introduction



Video Converter can simultaneously transmit 1-16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.



Devices are available for either standalone or rack-mount installation, which is suitable for

different working environment .



Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.

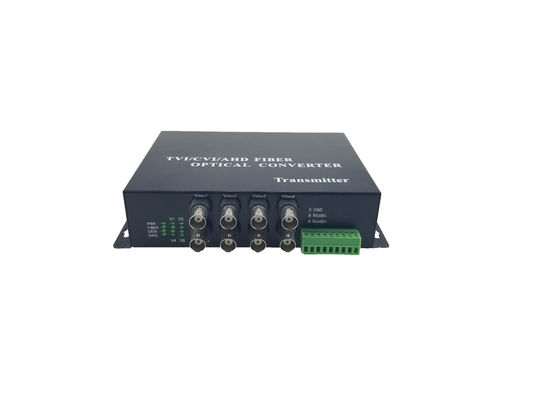

8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching



Feature

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~16 channel AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation







Application



² City traffic monitoring system

² Public security, safe city monitoring system

² Highway security protection, charging system

² Building, campus monitoring net

² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)

² electric power, oilfield, television program transmission system

² Gymnasium (live video, audio transmission)







AHD TO Fiber Converter System connection diagram

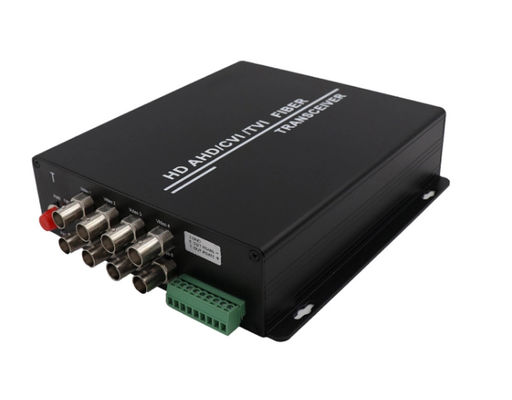

8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching









Technical Specification

Opitcal:



Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~80KM (SM)



Video:



Number of Channels 1~16
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC












Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching





Payment



8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching



Our Services



Welcome to inquire!



8 channels video multiplexer CVI TVI AHD Video Converter for Long distance multimedia teaching
