AHD cctv camera video converter , 19 inch 2U Rack design audio over Fiber Optical Transceiver

China AHD cctv camera video converter , 19 inch 2U Rack design audio over Fiber Optical Transceiver supplier
AHD cctv camera video converter , 19 inch 2U Rack design audio over Fiber Optical Transceiver supplier AHD cctv camera video converter , 19 inch 2U Rack design audio over Fiber Optical Transceiver supplier AHD cctv camera video converter , 19 inch 2U Rack design audio over Fiber Optical Transceiver supplier AHD cctv camera video converter , 19 inch 2U Rack design audio over Fiber Optical Transceiver supplier AHD cctv camera video converter , 19 inch 2U Rack design audio over Fiber Optical Transceiver supplier AHD cctv camera video converter , 19 inch 2U Rack design audio over Fiber Optical Transceiver supplier

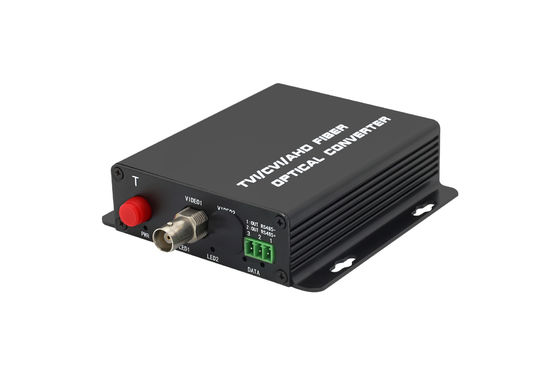

Large Image :  AHD cctv camera video converter , 19 inch 2U Rack design audio over Fiber Optical Transceiver

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Video Compression: H.264 Main Profile Level 3 Analog To IP: CCTV To IP
Date Support: RS232,RS422,485 Rise And Fall Time: <0.8ns
Application: CCTV/Protection/monitor Ect Fuction Support: Video,Audio,date,hd-sdi,AVI,AHD,HDMI
Network Port: WDM Optical

1CH AHD CCTV fiber video converter Video to fiber converter,

adopts 1-channel digital video and 1-channel data to optica



Product Description


1. The new project can use this device with the 4 coaxial video cable becomes a coaxial video cable, saving cable usage.

2. Reconstruction project in the newly added point, you can access nearby.

3. Compatible HD-CVI / AHD / TVI / analog video signals.

4. Wide voltage input, multi-stage power supply filter design. (DC 5V-12V input)

5. Built-in ESD protection circuit module signal the effective protection of the principle Cockpit equipment from outside electrostatic interference.

6. Modular design and installation, bi-directional transmission of video signals

7. No need adjustment.

8. The use of advanced digital compression technology.

9. The full real-time video transmission, no dropped frames without delay, broadcast-quality image index.

10. The simple wiring structure, easily obtained, low cost, simple construction, reduced working hours.

11. The product uses the patch installation process to ensure its stability.

12. The aluminum alloy shell. 19-inch 2U Rack design







Opitcal:



Wavelength 1310nm&1550nm
Output Power -8~-3dBm
Rx sensitivity -25dBm
Transmission Distance

50/125u multimode,0.5km

62.5/125u multimode,300m

9/125u single mode, 20km

Optical connector FC,ST,SC (optional)



Video:



Number of Channels 1
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC



Data:



Data protocol RS485
Data rate 0~200 Kbps
Error rate < 10-9
Connector Standard terminal lead



Other



Power DC5V 2A
Power Consumption ≤5W
Temperature -30ºC ~75ºC
Humidity 10%~90% RH
Unit Weight 0.75kg (pair)
Dimension 104mm×104mm×28mm
Package size 23×19×9cm
Installation Wall mount
MTBF ≥ 100000Hours
Case material Aluminum













Packaging & Shipping



Packing Details: Box or Carton or As your required



Delivery Details: Samples order within one workday



AHD cctv camera video converter , 19 inch 2U Rack design audio over Fiber Optical Transceiver



Photo Display



AHD cctv camera video converter , 19 inch 2U Rack design audio over Fiber Optical Transceiver

Competitive Advantage:

Ho-Link AHD Video Over Fiber Converter can simultaneously transmit 1~16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.



Company Photo



AHD cctv camera video converter , 19 inch 2U Rack design audio over Fiber Optical Transceiver





AHD TO Fiber Converter System connection diagram

AHD cctv camera video converter , 19 inch 2U Rack design audio over Fiber Optical Transceiver
