Home ProductsHDMI Video to Fiber Converter

Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data

Certification
Good quality HD SDI Video to Fiber Converter for sales
Good quality HD SDI Video to Fiber Converter for sales
Our main concern before ordering products was the longevity and quality. product works good. We will consider more of your products in my projects.

—— Ilan

works great easy to use, I recommend seller

—— paul rusnock

inexpensive product, fast delivery, and does its job.Very good service fast shipping.Thank You

—— Cal T.

I'm Online Chat Now

Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data

China Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data supplier
Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data supplier Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data supplier Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data supplier Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data supplier Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data supplier

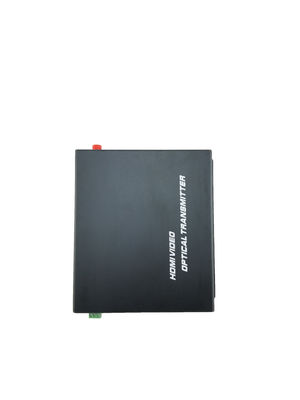

Large Image :  Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/FCC/ROHS
Model Number: HHDMI1V1D1AT/RL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: International Standard Package
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 3,000pair per month
Contact Now
Detailed Product Description
Product Type: 1 Channel HDMI Converter RS232 & RS485 & Audio Transmission Distance: 20Km
Bandwidth: 3G Video Resolution: 1920X1080P@60Hz
Video Type: HDMI Port Video System: PAL/NTSC/SECAM

Campus/Metro CCTV Security HDMI to Video Converter 1920*1080P&60hz for Advertising,Low Cost,3G Fiber Bandwidth







Overview:



     H-HDMI-1V1D1A-T/RL Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source(computer signal source,VGA signal source high digital DVD/DVR and various resolution HDMI signal…) to long distance terminal easily,with strong anti-interferance performance,ensure the signal completed and stable



Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data





Specifications:



Parameter Description
Video Standards HDMI 1.3; HDCP 1.2
Maximum pixel clock 165MHz
Maximum data rate 6.75Gbps
Resolution 1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz
Connector Female HDMI type A
Impedance 100
Audio Interface 3.5mm earphone seat
Signal type Stereo
RS232 Interface Industrial terminal
Signal direction Unidirectional
Baud rate Self-adaptive, Max:115200bps
Data bits 8
Optical Fiber Interface LC connector
Fiber type Single-mode single fiber
Wavelength Single-mode 1310nm
Interface bandwidth 2.97Gbps
Transmission distance Standard 10km
Other Power supply The power adapter: DC 5V/2A
Power dissipation MAX 6W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 136*130*30mm
The warranty 1 year free warranty






Applications:

Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data

1, Extends HDMI video and embedded audio signals to
2, very long distances over a single fiber via 3G video Optical Transceiver
3, Complies with HDMI 1.3b and earlier standards
4, Real-time status LED indicators for troubleshooting and monitoring
5, Hot-Swappable
6, Available with DVI, VGA interfaces and features



How to control quality?



Every products must be tested one by one before shipment.Your any question will be responed within 24 hours.









Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data





Payment



Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data



Our Services



Welcome to inquire!



Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data


Ho-Link Technology Co.,Ltd



TVI/AHD/HD CVI fiber optical converter 1 to 16 channels HD coaxial Fiber video converter









Company Information

Company Profile



Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.

Company Photo

Two-way road digital audio video converter1080P HDMI Fiber optic Converter with 2channel RS232 data
