16CH HD 1080p Video Converter for PTZ Camera self adaptive 300pbs ~ 115.2kpbs self-adaptive 300pbs~115.2kpbs

China 16CH HD 1080p Video Converter for PTZ Camera self adaptive 300pbs ~ 115.2kpbs self-adaptive 300pbs~115.2kpbs supplier
16CH HD 1080p Video Converter for PTZ Camera self adaptive 300pbs ~ 115.2kpbs self-adaptive 300pbs~115.2kpbs supplier 16CH HD 1080p Video Converter for PTZ Camera self adaptive 300pbs ~ 115.2kpbs self-adaptive 300pbs~115.2kpbs supplier 16CH HD 1080p Video Converter for PTZ Camera self adaptive 300pbs ~ 115.2kpbs self-adaptive 300pbs~115.2kpbs supplier 16CH HD 1080p Video Converter for PTZ Camera self adaptive 300pbs ~ 115.2kpbs self-adaptive 300pbs~115.2kpbs supplier

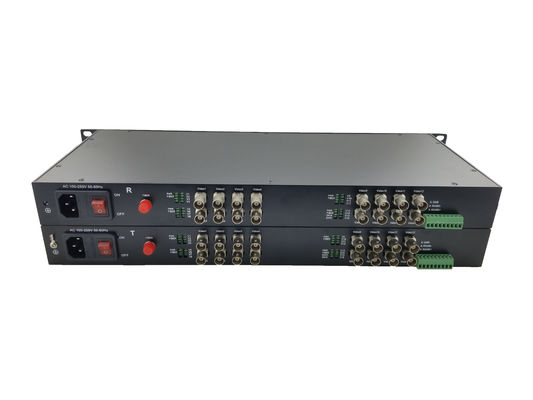

Large Image :  16CH HD 1080p Video Converter for PTZ Camera self adaptive 300pbs ~ 115.2kpbs self-adaptive 300pbs~115.2kpbs

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Operating Mode: Full Duplex/Half Duplex Fiber Type: Multi-mode Fiber Or Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Input Level: >500mVp-p Certification: CE FCC ROHS Compliant
Physical Interface: 1channels BNC Connector

16CH 1080P HDCVI Video to Fiber Converter for PTZ Camera Combined Video Over Fiber Optic Digital Converter



Product Description
  • Excellent performance with good price
  • High-quality metal case
  • Professional package & fast delivery
  • Fiber Modem with 2 years warranty
  • Long service life
  • CE/FCC/ROHS approved



This Fiber Modem implements advanced optic transmission technology to extend signal transmission distance up to 120km on single-core fiber. It can convert data type among RS232, RS422 and RS485 by one circuit or multi-circuit. With features of HV-free,electromagnetic-free and thunder-lightning protection, fiber modem is widely used in industrial control, automatic electricity system, and traffic control, etc.







Features:



  • Comply with EIA RS-232/485/422 standard.
  • Industrial-grade design, SMT arts and crafts.
  • Self- negotiate without delayed.
  • Asynchronous transmission, In point-to-point mode, RS422 connector convert with fiber optic.
  • Self-detect the rate of serial port, distinguish and control direction of data transmission.
  • The largest communication rate:120Kbps.
  • External power supply 5V DC or 220V AC, dispense with steeling electricity of serial port, high adaptability.
  • Single or multimode optional, FC/SC/ST optional.
  • Operating Wavelength:1310nm/1550nm(single mode), 1310nm, 1550nm.
  • Supply 1500W surge protection, 15KV static protection, with thunder and lightning protection.
  • Multimode communication reach 2 km, single mode reaches 120 km.
  • Power and video status indicators LED can monitor the system operating conditions.
  • Plug and play , Hot-swap function.
  • Supports for centralized management 19" 2U or 16 rack-mount chassis.





Specifications:


  • Optic wavelength: 1310/1550nm, 1310nm, 1550nm
  • Optic interface: FC/SC/ST
  • Transmission rate: self-adaptive 300pbs~115.2kpbs
  • Operating mode: fiber to RS-232/422/485 and vice versa.
  • Power: DC 5V /1A
  • Operating temperature:-0~70°C;
  • Operating humidity: 0~95%(no-condensing)





 Specifications


Data Connector: Terminal Blocks
Encoded type: RS485 / RS422 / RS232 / Manchester
Data rate: DC ~ 300Kbps
BER: ≤10-9
Audio Connector: Terminal Blocks
Audio input / output impedance: 600Ω(Balance/ unbalance)
Audio input / output voltage: 2Vp-p ( typical value)
Audio input / output level: 0dBm ( typical value)
Video bandwidth: 20HZ~20KHZ
Audio digital encoded bandwidth: 24bit
Audio signal-to-noise ratio: S/N≥85dB
Telephone Connector: RJ11
Bandwidth: 8KHZ
Features: Support call-showing function ;support H-F
Operating mode: Point to point hot-line mode / FXS-FXO
Ethernet Connector: RJ45
Support mode: Half duplex or Full duplex
Standards: IEEE802.3
Data rate: 10M / 100Mbps
Bandwidth: 25M
Contact Closure Physical connector: Industrial standard connector port
Alarm output: Support any type of active or passive alarm output
Data Interface: Support TTL, RS232/485/422 or relay output
Optical Budget Multi-mode / 20dBm / 2KM
Single mode / 20dBm / 20KM
Single mode / 22dBm / 40KM
Single mode / 25dBm / 60KM







  • 8-bit or 10-bit digitally encoded and non-compression video transmission
  • Directly compatible with NTSC, PAL and SECAM CCTV camera systems and support RS-232, RS-422
  • and RS-485 data protocols
  • Power supply and other parameter state indication, which can monitor the operation condition of system
  • Support no-damage regenerative trunk of video
  • Constant input optical power, and large dynamic range, no electrical or optical adjustments required.
  • Special ASIC design
  • Industry-grade of operating temperature from 10 to 75, which is applied to the different working environment
  • Hot-swap function
  • Stand-alone type or card-type installed in 19" 2U or 4U rack-mount chassis.
  • Optical interface: FC, ST, SC(optional)
  • Abundant signal interface, such as video, data, audio, telephone, Ethernet, binary input/output and talkback

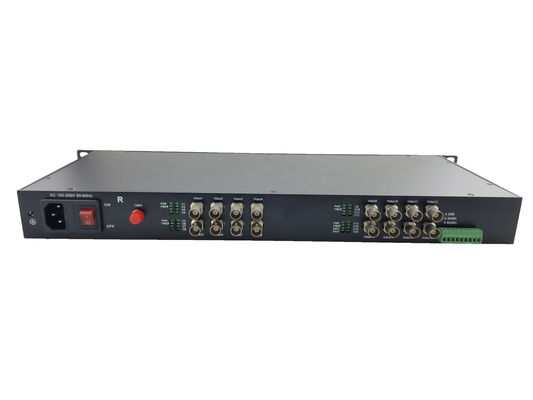

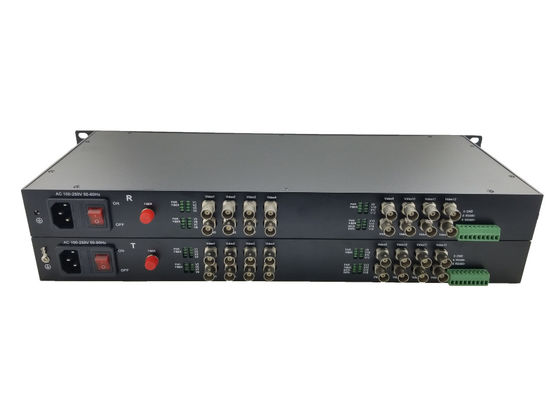

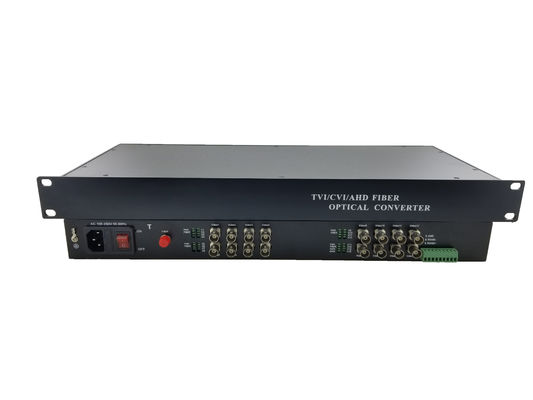

Product Display

16CH HD 1080p Video Converter for PTZ Camera self adaptive 300pbs ~ 115.2kpbs self-adaptive 300pbs~115.2kpbs

Competitive Advantage:
Holink HDCVI Video Over Fiber Converter adopt the advanced uncompressed
HD composite video and high velocity digital optical transmission technologies which convert the HDCVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.

Company Photo

16CH HD 1080p Video Converter for PTZ Camera self adaptive 300pbs ~ 115.2kpbs self-adaptive 300pbs~115.2kpbs

HDCVI TO Fiber Converter System connection diagram

16CH HD 1080p Video Converter for PTZ Camera self adaptive 300pbs ~ 115.2kpbs self-adaptive 300pbs~115.2kpbs
