CCTV video transmitter full hd video converter Support SMPTE 259M with LED indicator

China CCTV video transmitter full hd video converter Support SMPTE 259M with LED indicator supplier
CCTV video transmitter full hd video converter Support SMPTE 259M with LED indicator supplier CCTV video transmitter full hd video converter Support SMPTE 259M with LED indicator supplier CCTV video transmitter full hd video converter Support SMPTE 259M with LED indicator supplier CCTV video transmitter full hd video converter Support SMPTE 259M with LED indicator supplier

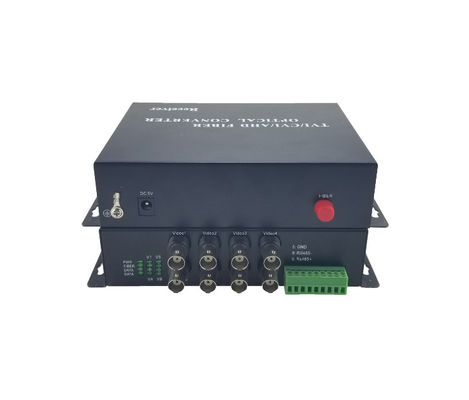

Large Image :  CCTV video transmitter full hd video converter Support SMPTE 259M with LED indicator

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Power Supply: DC5V Video: 720P,1080P
Distance: 10km~80km (Optional) Input Level: >500mVp-p
Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m Input/Output Impedance: 75 Ω
Physical Interface: 1channels BNC Connector Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm

4 Channel HD-CVI Video Over Converter new model CVI converter with 1xlooping TVI output Fiber Optic Video, CCTV Video



Product Description

Features


  • Support 16 channel SD/HD video embedded audio signal via fiber
  • SD,HD auto-detection, supported transmission rate from 270M bit/s to 1.485G bit/s
  • Transmission distance is from 0km to 40KM via multimode fiber or single mode fiber.
  • Support SMPTE 259M (1.485Gbps),SMPTE 259M (270Mbps) and DVB-ASI
  • Support plug and play function
  • Operation status indication by LED



HD-SDI Fiber Optic
Model/Name ATD610-SDI-2T/R
Quantity/Type Single Mode, Single Fiber
Transmission Distance 0m-20Km/40km/60KM optional
Fiber Connector FC
Wave Length 1310nm/1550nm
Transmitted power -10dbm~-3dbm
Maximum Receiving Sensitivity <-34dbm
Signal Type SD-SDI(270Mbps)/ HD-SDI(1.485Gbps)
Support Input Format

SD: 525i @ 59.94Hz, 625i @ 50Hz

<p >HD: 720p @ 25Hz / 29.97Hz / 30Hz <p > 720p @ 50Hz / 59.94Hz / 60Hz <p >1080i @ 50Hz / 59.94Hz / 60Hz <p >1080p @23.98Hz/24Hz/25Hz/29Hz/30Hz
Video Standard SMPTE 292M and SMPTE 259M
DATA comm. method 1CH RS-485/Half duplex/ Industrial terminals
Power Supply 5~24DC
Power Consumption 3~5 Watts
Operating Temperature 0°C ~ 60°C / 32°F ~ 140°F
Storage Temperature -30°C ~ 70°C / -22°F ~158°F
Relative Humidity 20~90% RH (Non-condensation)
Dimension <p >176 x 146 x 30 mm / 6.97x 6.75x 1.18 in
Weigh 900g (Tx and Rx)
In-out electrical level 800mVp-p±10%
In-0ut Ohm 75Ohm
Digital Audio 48KHz
AES digital audio channel 16CH



Specifications



a, 1-16 HDCVI optional
b, LED indicator
c, Compatible 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f
d, Real time transmission





16 CH HDCVI over Fiber Transceiver can simultaneously transmit 16 channels HDCVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission.




Specifications



video digital optical converter
1. 8 bit Video Signal digital sampling
2. For CCTV Camera Monitor
3. OEM service





16 Channel single mode RS 422 data Video Digital Optical Converter for IP surveillance

  • 8-bit or 10-bit digitally encoded and non-compression video transmission
  • Directly compatible with NTSC, PAL and SECAM CCTV camera systems and support RS-232, RS-422
  • and RS-485 data protocols
  • Power supply and other parameter state indication, which can monitor the operation condition of system
  • Support no-damage regenerative trunk of video
  • Constant input optical power, and large dynamic range, no electrical or optical adjustments required.
  • Special ASIC design
  • Industry-grade of operating temperature from 10 to 75, which is applied to the different working environment
  • Hot-swap function
  • Stand-alone type or card-type installed in 19" 2U or 4U rack-mount chassis.
  • Optical interface: FC, ST, SC(optional)
  • Abundant signal interface, such as video, data, audio, telephone, Ethernet, binary input/output and talkback

Specification

Video Audio
Port 16 Audio channel Forward/reverse audio
Video interface BNC In/output impedance 600Ω
Video in/output impedance 75Ω In/output voltage 2.0Vp-p(max)
Video in/output voltage (typical)1.0Vp-p/max 1.5Vp-p Frequence response 10Hz- 20Hz
Bandwidth 5-8MHz Audio digital bit wide 25Bit DVD
Differential gain <1% (typical) SNR ≥80dB
Differential phase <0.6° Non-linear distortion factor 1%
SNR ≥68dB Data interface type

Industrial standard

interface port

Field tile <0.5%
Data Switching Value
Physical connector phoenix contact (DATA) Physical connector

Industrial standard

connector port

Data connector RS-485/422,RS232 Alarm output

Support any type of active or

passive alarm output

Channels of data

Forward and reverse

path data multi-channels

Data interface Support TTL RS-232/485/422 or relay output
Interface port Industrial standard interface port
Ethernet Environment
Physical connector Cat5 RJ45 port Working temperature -30 °C ~ +75 °C
10/100M interface

Full/half duplex,MDX

Support IEEE802.3

10/100Base-T

ethernet standard

Storage temperature -40 °C ~ +85 °C
Relative humidity 0~95%
Telephone Optical
Connector Standard RJ11 Fiber type MM SM SM SM
Phonetic bandwidth 8KHz Budget 20dBm 20dBm 22dBm 25dBm
Distortion < 1% Transmission Distance 2km 20km 40km 60km
Other
Input rating voltage AC220V/50Hz
Power supply DC 5V/1A
Power ≤5W
Sampling rate 15MHZ
MTBF ≥100,000h

Product Display

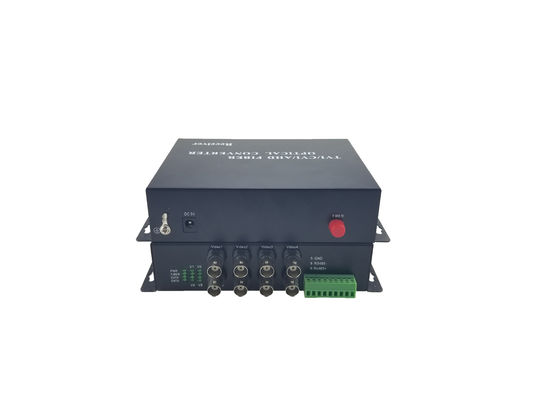

CCTV video transmitter full hd video converter Support SMPTE 259M with LED indicator

Competitive Advantage:
Holink HDCVI Video Over Fiber Converter adopt the advanced uncompressed
HD composite video and high velocity digital optical transmission technologies which convert the HDCVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.

Company Photo

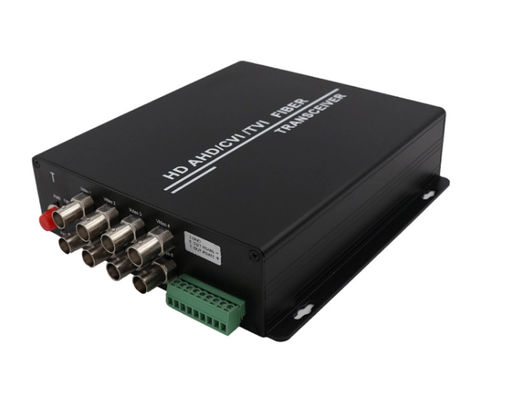

CCTV video transmitter full hd video converter Support SMPTE 259M with LED indicator

HDCVI TO Fiber Converter System connection diagram

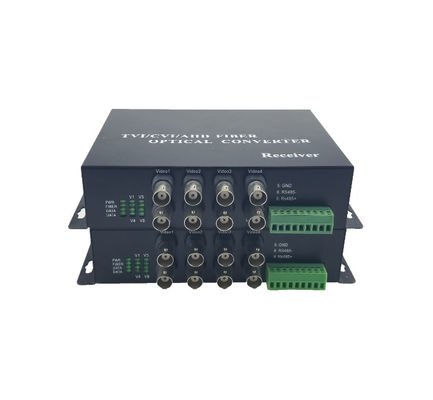

CCTV video transmitter full hd video converter Support SMPTE 259M with LED indicator
