4ch AHD Over Fiber Optic,4 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter

China 4ch AHD Over Fiber Optic,4 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter supplier
4ch AHD Over Fiber Optic,4 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter supplier 4ch AHD Over Fiber Optic,4 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter supplier 4ch AHD Over Fiber Optic,4 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter supplier 4ch AHD Over Fiber Optic,4 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter supplier 4ch AHD Over Fiber Optic,4 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter supplier 4ch AHD Over Fiber Optic,4 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter supplier

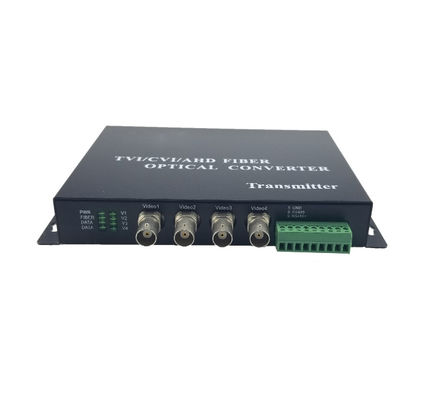

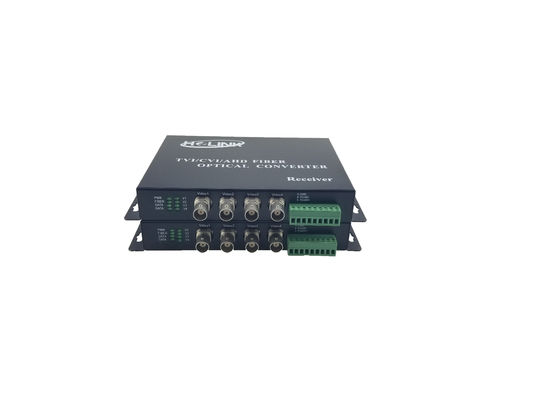

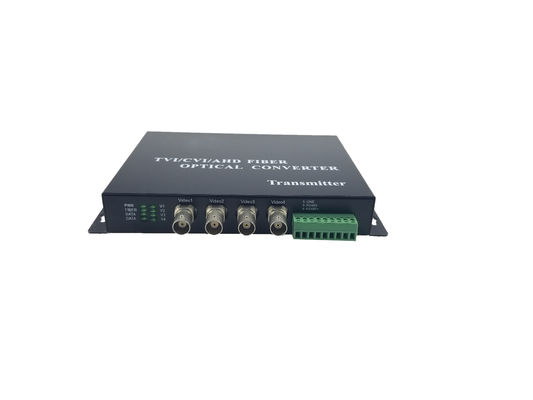

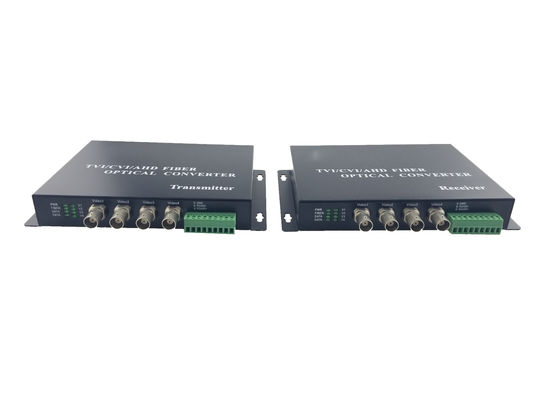

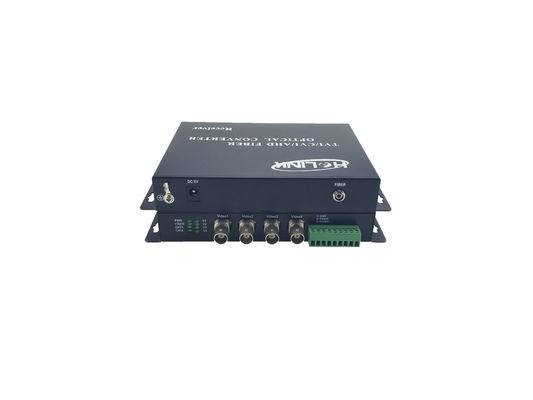

Large Image :  4ch AHD Over Fiber Optic,4 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Storage Humidity: 10%~90% RH Optical Connector: FC/ST/SC (optional)
Distance: 10km~80km (Optional) Input Level: >500mVp-p
Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m Input/Output Impedance: 75 Ω
Physical Interface: 1channels BNC Connector

4ch AHD Over Fiber Optic,4 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter





Product Description:



    AHD Video Over Fiber Converter can simultaneously transmit 1~64 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.









Feactures:

  • Digital uncompres

  • sed technology, broadcasting level transmission,

  • Point to point, cascade, distributed network connection are supported, SNR value doesnt go down.

  • Automatically compatible with PAL, SECAM, NTSC and other video formats.

  • Lightning protection.

  • All the high-resolution video signal are supported.

  • Automatic power mediation, automatic temperature compensation circuitry, auto-recovery overload protection.

  • Support no-damage regenerative trunk of video.

  • Super optical dynamic range without adjustment.

  • Surface mount technology.

  • With hot-plugging.

  • Optical fiber WDM/CWDM/DWDM technology.

  • 1000M optical fiber transmission technology, large capacity, easy upgrades.

  • Industrial level temperature range (-40℃~+85℃), suitable for different environments.

  • Wall-mounted, 2U rack chassis or 4U plug-in.

  • Customized or OEM service are supported.





Specifications:



Video
Video Port Quantity 16 ports
Bandwidth of video 8MHz
Video Input/Output Impedance 75 Ω (unbalanced), BNC
Differential gain DG <1% (typical value)
Differential phase DP <0.6 o (typical value)
SNR S/N ≥67 dB
Data
Interface Port RJ45,industrial standard port
Interface Signal Type RS485/RS422/RS232/Manchester
Code Rate 0-400Kbps
BER < 10 -9
General Index
MTBF ≥100.000 hours
Working Temperature -40 ℃- +85℃
Humidity 0-95%, non-Condensing
Voltage 220V,+5,+9,24V optional
Fiber Index
Fiber Connector FC/ST/SC optional
Transmission distance Multi-mode:0-3KM Single-mode:0-100KM
wavelength Multi-mode: 850/1310nm Single-mode: 1310/1550nm
Dimension
Wall-mounted type size 21.1(L)x16.2(W)x3.0(H)cm
2U Standard 2U
4U Standard 4U





Application Diagram:





4ch AHD Over Fiber Optic,4 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter



  • Ø City traffic monitoring system
  • Ø Public security, safe city monitoring system
  • Ø Highway security protection, charging system
  • Ø Building, campus monitoring net
  • Ø Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Ø Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • Ø electric power, oilfield, television program transmission system
  • Ø Gymnasium (live video, audio transmission)



Order Information:


Part No. Description
H-TVI/CVI/AHD-1V-T/RF 1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF 1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF 2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF 2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF 4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF 4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF 8 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-8V1D-T/RF 8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-16V-T/RF 16 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-16V1D-T/RF 16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-32V-T/RF 32 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-32V1D-T/RF 32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data







16ch AHD Over Fiber Optic,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter





We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
