|Number Of Channels:||8||Fiber Type:||Single Mode Fiber|
|Fiber Connector:||FC Or ST Or SC||Distance:||10km~80km (Optional)|
|Input Level:||>500mVp-p||Self-adaption Cable Equilibrium:||1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m|
|Input/Output Impedance:||75 Ω||Wavelength:||Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm|

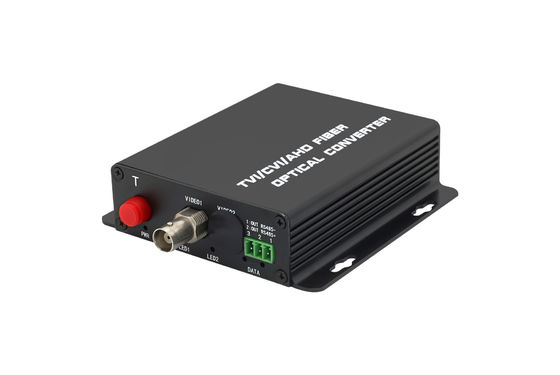

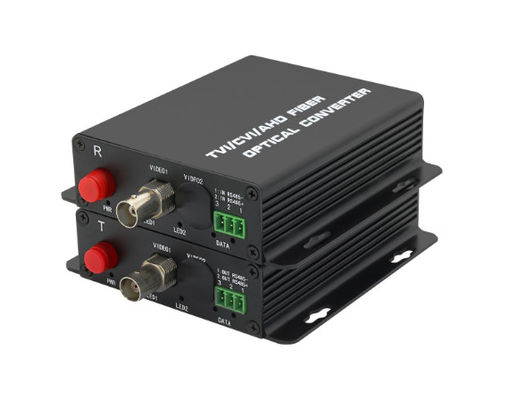

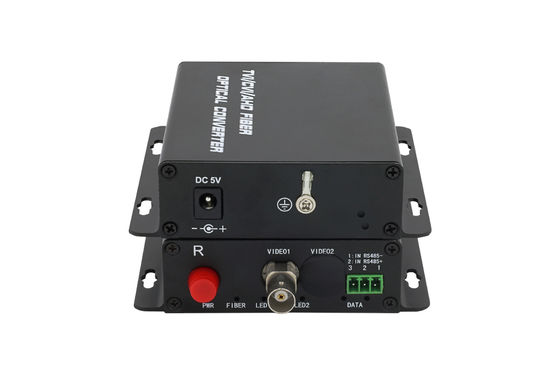

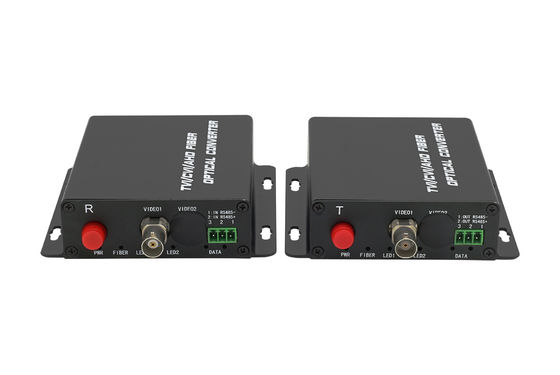

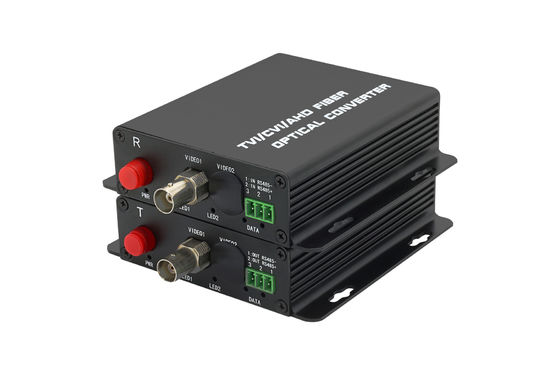

1Ch 720P/960P/1080P TVI Converter, Fiber Optic to BNC Digital Video Converter, fiber optical Standalone Converter
HD CVI /AHD /TVI video converter is designed for long-distance optical fiber transmission.
It adopt the advanced uncompressed HD composite video and high velocity digital optical
transmission technologies which convert the high definition signals to optical signals.
HD CVI /AHD /TVI video converter can simultaneously transmit 1/2/4/8/16 CH composite video.
Feature is real-time, synchronous, lossless, high reliability, coaxial point to point transmission.
The play-and-plug design makes the installation more convenient and easier for our customer.
|Optic fiber||50/125u multimode,62.5/125u multimode,9/125u single mode|
|Optical connector||FC,ST,SC (optional)|
|Distance||0~550M (MM) / 0~20KM (SM)|
|Number of Channels||8|
|Input/output impedance||BNC 75Ω (unbalance)|
|Standard video input/output voltage||1.0Vp-p|
|Rise and Fall time||<0.8ns|
|Optical Signal Intrinsic Jitter||<0.2 UI|
|Differential Gain||< ±1.5%|
|Differential Phase||< ±1°|
|Unit Weight||1ch :0.75kg, 2ch/4ch/8ch: 1.5KG(pair)|
1 : 104mm×104mm×28mm
2ch /4ch/8ch: 183mm×154mm×30mm
Can be customized the customer brand or without a trademark
• The Optical Power Budget data fit Mulit-mode(62.5/125 μm),Single-Mode(9/125 μm).
• When using 50/125 μm multimode fiber, subtract 3 dB from the optical power budget.
• Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
• Maximum transmission distance is also limited by fiber bandwidth.
• Power adapter is manufactured by third party and is supplied with fitted screw-terminal output cables.Power adapter included (for standalone) US, European, UK or Australian power plug.
• Please feel free to consult factory for any special requirement and customization.
• Due to continuous improvement, all fiber optic transmission systems and video over fiber product specifications are subject to change without further notice.
Ho-Link HDTVI Converters adopt the advanced uncompressed HD composite video and
high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.
HDTVI TO Fiber Converter System connection diagram
