Hot Sale 1 CHANNEL HD-CVI TVI AHD to video converter for dahua camera

China Hot Sale 1 CHANNEL HD-CVI TVI AHD to video converter for dahua camera supplier
Hot Sale 1 CHANNEL HD-CVI TVI AHD to video converter for dahua camera supplier Hot Sale 1 CHANNEL HD-CVI TVI AHD to video converter for dahua camera supplier Hot Sale 1 CHANNEL HD-CVI TVI AHD to video converter for dahua camera supplier Hot Sale 1 CHANNEL HD-CVI TVI AHD to video converter for dahua camera supplier Hot Sale 1 CHANNEL HD-CVI TVI AHD to video converter for dahua camera supplier Hot Sale 1 CHANNEL HD-CVI TVI AHD to video converter for dahua camera supplier

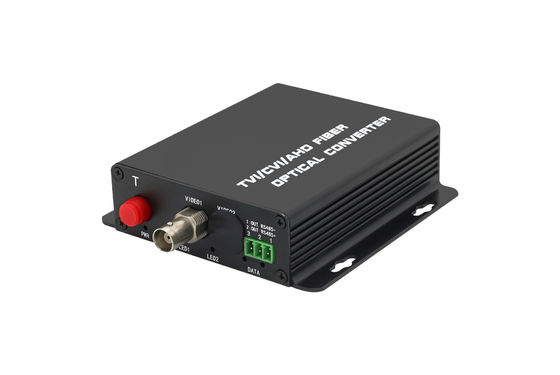

Large Image :  Hot Sale 1 CHANNEL HD-CVI TVI AHD to video converter for dahua camera

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: HL-1V1D-20T/R-1080

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 5000pairs per month
Contact Now
Detailed Product Description
Number Of Channels: 1 Fiber Type: Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Physical Interface: 1 Channels BNC Connector
Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm EPS: DC5V

Overview



Ho-link HD-AHD/HD-CVI/HD-TVI Optical Transceiver adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD, HDCVI or HD-TVI composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers. Ho-link AHD/CVI/TVI Fiber optic transceiver can simultaneously transmit 1-8 channels AHD, HD-CVI or HD-TVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports input video format as 25/30/50/60fps@720P & 25/30fps@1080P.





Features





  • Non-compression coding technology
  • Automatically identify formats of input videos.
  • Support transmission of AHD, HDCVI or HD-TVI signal and controlling PTZ data RS485 simultaneously though fiber optical cable
  • Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.
  • Through LED indicators to inform its functional mode
  • Industrial wide range of operational temperature
  • Plug and play, simple installation.
  • Wide-range temperature application: -40ºC ~75ºC



Technical Indexes





Fiber FC, Single Mode Single Fiber
Transmission Distance 0-120km (Optional)
Wavelength Transmitter: 1310nm(Tx)/1550nm(Rx)
Receiver: 1550nm(Tx)/1310nm(Rx)
Transmitter Input Level >500mVp-p
Receiver Output Level 1Vp-p
Self-adaption cable equilibrium 1080p: 75-5 coaxial cable, 300m
720p: 75-5 coaxial cable, 500m
Transmitter Input Return Loss >15dB
Input/Output Impedance 75Ω
Video Physical Interface BNC
Video Channel 1-Ch~8-Ch
Video bandwidth 50MHz
Sampling Bandwidth 10 bit
RS485 1-Ch Backward RS485 (Optional)
Indicators OPT, PWR, DATA, VIDEO
Power DC 5V2A or AC220V
Power Consumption ≤7W
Operation Humidity 10%~90%
Operation Temperature -40°C~75°C



Hot Sale 1 CHANNEL HD-CVI TVI AHD to video converter for dahua camera



AHD TO Fiber Converter System connection diagram



1 CHANNEL TVI/CVI/AHD video converter for hd cameras Dahua / Hikvision with data function
