2 channel 1080p/60hz HD Digital Video Optical Transceiver AHD CVI TVI

China 2 channel 1080p/60hz HD Digital Video Optical Transceiver AHD CVI TVI supplier
2 channel 1080p/60hz HD Digital Video Optical Transceiver AHD CVI TVI supplier 2 channel 1080p/60hz HD Digital Video Optical Transceiver AHD CVI TVI supplier 2 channel 1080p/60hz HD Digital Video Optical Transceiver AHD CVI TVI supplier 2 channel 1080p/60hz HD Digital Video Optical Transceiver AHD CVI TVI supplier 2 channel 1080p/60hz HD Digital Video Optical Transceiver AHD CVI TVI supplier 2 channel 1080p/60hz HD Digital Video Optical Transceiver AHD CVI TVI supplier

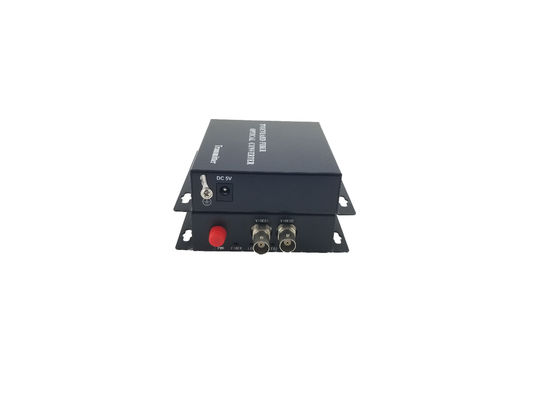

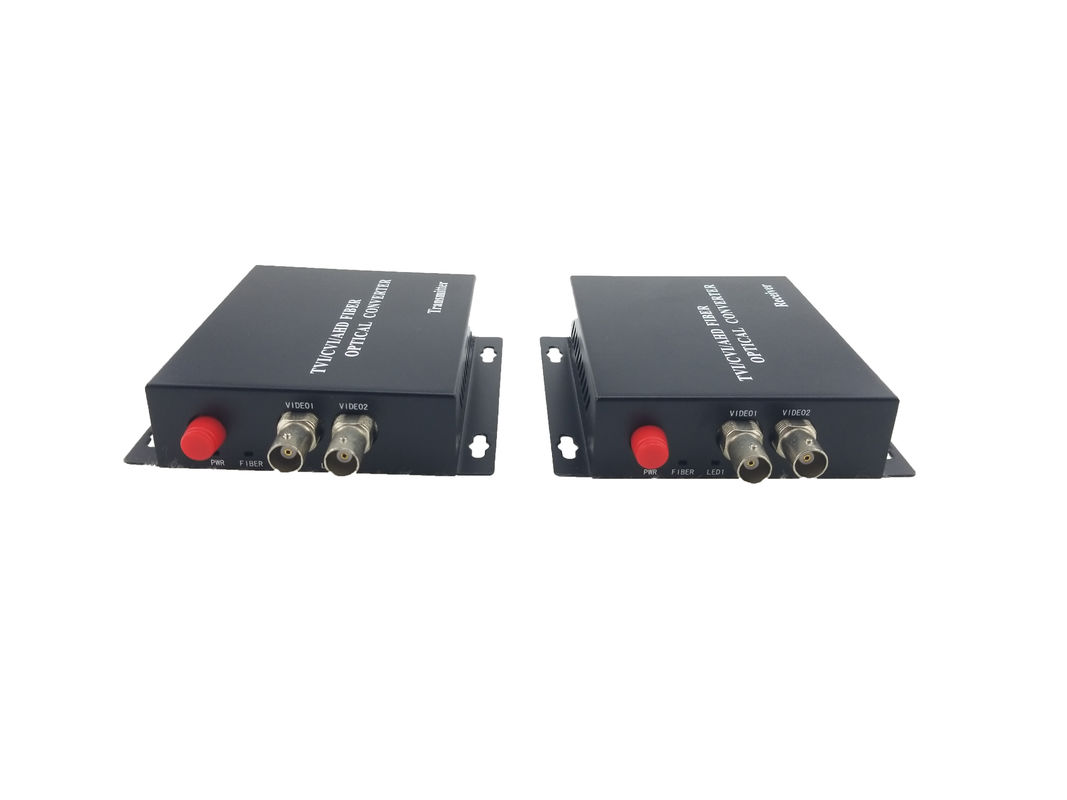

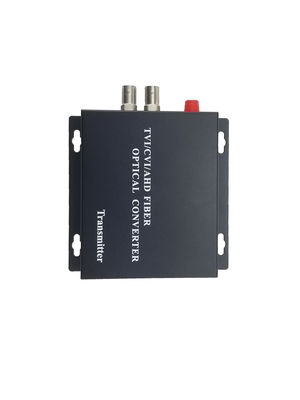

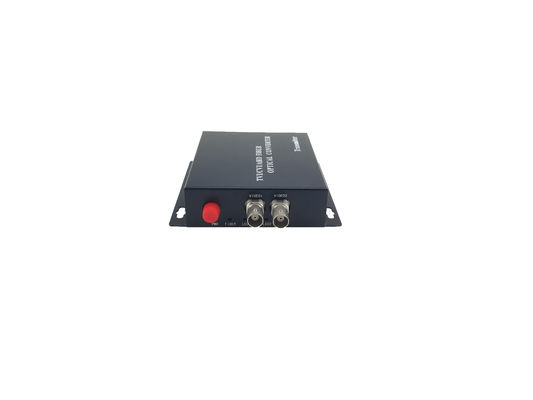

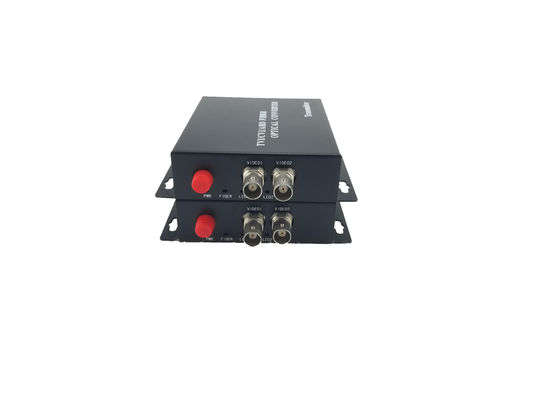

Large Image :  2 channel 1080p/60hz HD Digital Video Optical Transceiver AHD CVI TVI

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/ROHS/FCC/SGS
Model Number: HL-2V1D-20T/R-1080

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: shipped within 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 3,000pairs per month
Contact Now
Detailed Product Description
Number Of Channels: 2 Fiber Type: Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Physical Interface: 2 Channels BNC Connector
Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm EPS: DC5V

2 channel 1080p HD Digital Video Optical Transceiver AHD CVI TVI




     The Product provides customer with the most cost-effective solution for transmission of 2 channel 960P High resolution uncompressed digital video and 1 reversed RS485 data over one single fiber cable.
It is an easy installation and adjustment free device while providing high quality, real-time video Applications for this product include CCTV, video surveillance, homeland security, ITS and etc.







Feature

  • Transports 2 channel
  • all-digital without compression digitized, high quality, Single directional or both directional optional
  • video 8MHz video bandwidth, Compatible with NTSC, PAL and SECAM
  • 1 reversed data transmission (single directional or both directional optional) over same optical fiber to control camera
  • Easy installation and adjustment free
  • Transmission range 20,40,60,80 up to 120KM depending on model
  • RS485 compatible data interfaces
  • Stand alone operation or mount in chassis





Specification

  • Power:
    220VAC/50Hz, standalone device
    0.2A@12VDC for rack card
  • Indicators:
    Power, Link Status, Video Signal
    Audio status, Data traffic
  • Video:
    Format: PAL/NTSC/SECAM
    Video Signal: Vp-p, 75ohm ,single directional or both directional optional
    Digitization: 8bits/10bits
    Bandwidth: 8MHz
    DG <1%
    DP <1 degree
    SNR >60dB(weighted)
    Connectors: BNCs
  • Channel: 1, Reversed , single directional or both directional optional

Data Rate: 0~~23.04Kbps/channel

Terminal Block with Screw Clamps










2 channel 1080p/60hz HD Digital Video Optical Transceiver AHD CVI TVI



Application

2 channel 1080p HD Digital Video Optical Transceiver AHD CVI TVI









Order Information:


Part No. Description
H-TVI/CVI/AHD-1V-T/RF 1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF 1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF 2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF 2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF 4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF 4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF 8 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-8V1D-T/RF 8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-16V-T/RF 16 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-16V1D-T/RF 16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-32V-T/RF 32 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-32V1D-T/RF 32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data





Shipping:

2 channel 1080p/60hz HD Digital Video Optical Transceiver AHD CVI TVI







2 channel 1080p/60hz HD Digital Video Optical Transceiver AHD CVI TVI





Company Information



     Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

     Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore, Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.

HD video AHD CVI TVI Fiber optical converter, 16-CH 720P 960P video fiber optic transmitter, single-mode single fiber 20KM
