8 Channels HD BNC AHD CVI TVI combined RS485 bnc connector 1080P fiber optic video converter

China 8 Channels HD BNC AHD CVI TVI combined RS485 bnc connector 1080P fiber optic video converter supplier
8 Channels HD BNC AHD CVI TVI combined RS485 bnc connector 1080P fiber optic video converter supplier 8 Channels HD BNC AHD CVI TVI combined RS485 bnc connector 1080P fiber optic video converter supplier 8 Channels HD BNC AHD CVI TVI combined RS485 bnc connector 1080P fiber optic video converter supplier 8 Channels HD BNC AHD CVI TVI combined RS485 bnc connector 1080P fiber optic video converter supplier 8 Channels HD BNC AHD CVI TVI combined RS485 bnc connector 1080P fiber optic video converter supplier

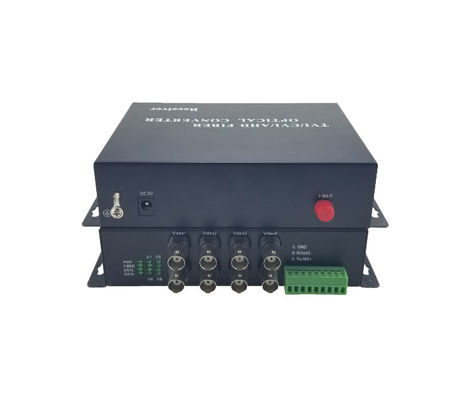

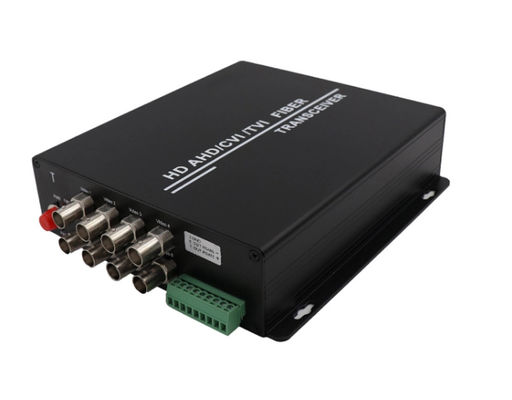

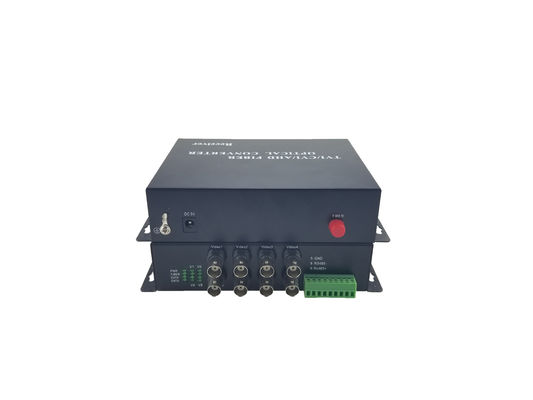

Large Image :  8 Channels HD BNC AHD CVI TVI combined RS485 bnc connector 1080P fiber optic video converter

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: HL-8V1D-20T/R-1080

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000pairs per month
Contact Now
Detailed Product Description
Fiber Connector: FC Or ST Or SC Number Of Channels: 8
Distance: 10km~80km (Optional) Input Level: >500mVp-p
Fiber Type: Single Mode Fiber Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Physical Interface: 1 Channels BNC Connector
Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm EPS: DC5V

OEM 8 channel HDTVI Video fiber optical transmitter and receiver,TVI fiber optic 8Ch HD TVI Video+1Ch RS485 data



8 Channels HD BNC AHD CVI TVI combined RS485 bnc connector 1080P fiber optic video converter
Product Description


TVI video converter is designed for long-distance optical fiber transmission.
It adopt the advanced uncompressed HD composite video and high velocity digital optical
transmission technologies which convert the high definition signals to optical signals.

TVI video converter can simultaneously transmit 1/2/4/8/16 CH composite video.
Feature is real-time, synchronous, lossless, high reliability, coaxial point to point transmission.
The play-and-plug design makes the installation more convenient and easier for our customer.


TVI Fiber to Converter is designed for long-distance optical fiber transmission HD-CVI/AHD/TVI composite video and design, the use of non-compressed digital video technology, the use of point to point optical fiber coaxial transmission megapixels level HD video, the delay-free, high reliability video transmission. Single fiber can simultaneously transmit 1/2/4/8/16 road HD-CVI/AHD/TVI composite video.

Can effectively solve the long-distance optical fiber transmission Dahua HD-CVI , Hikvision HD-TVI and XM HD-AHD camera signals, including 1280H, 1920H of 1,000,000, 1,300,000, 2,000,000 HD-CVI/AHD /TVI signal can also be transmitted to other technical standards HD-CVI /AHD/TVI same camera signal.




Key features



1. Automatically identify formats of input videos.

2. Support 1~8ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable reach to 20km.

3. With 1-CH reverse RS485 data or without data for optional.

4. DC 5V power supply.

5. Support 720p, 960p, 1080p video etc.

6. Through LED indicators to inform its functional mode.

7. Industrial wide range of operational temperature.

8. Plug and play, simple installation.






Product parameters

CCTV HD TVI/HDCVI/AHD 1/2/4/8/16/ch fiber optic video converter 8Ch HD TVI Video+1Ch RS485 data

Data
Connector: Terminal Blocks
Encoded type: RS485 / RS422 / RS232 / Manchester
Data rate: DC ~ 300Kbps
BER: ≤10-9
Audio
Connector: Terminal Blocks
Audio input / output impedance: 600Ω(Balance/ unbalance)
Audio input / output voltage: 2Vp-p ( typical value)
Audio input / output level: 0dBm ( typical value)
Video bandwidth: 20HZ~20KHZ
Audio digital encoded bandwidth: 24bit
Audio signal-to-noise ratio: S/N≥85dB
Telephone
Connector: RJ11
Bandwidth: 8KHZ
Features: Support call-showing function ;support H-F
Operating mode: Point to point hot-line mode / FXS-FXO
Ethernet
Connector: RJ45
Support mode: Half duplex or Full duplex
Standards: IEEE802.3
Data rate: 10M / 100Mbps
Bandwidth: 25M
Contact Closure
Physical connector: Industrial standard connector port
Alarm output: Support any type of active or passive alarm output
Data Interface: Support TTL, RS232/485/422 or relay output
Optical Budget
Multi-mode / 20dBm / 2KM
Single mode / 20dBm / 20KM
Single mode / 22dBm / 40KM
Single mode / 25dBm / 60KM




Certificates
Fiber optic video transmitter & receiver stand-alone AHD converter


Shipping
Fiber optic video transmitter & receiver stand-alone AHD converter


  1. Packaging : bags&caron box
  2. Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
  3. FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  4. DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.




HDTVI TO Fiber Converter System connection diagram

8 Channels HD BNC AHD CVI TVI combined RS485 bnc connector 1080P fiber optic video converter



8 Channels HD BNC AHD CVI TVI combined RS485 bnc connector 1080P fiber optic video converter



Company Profile



     Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

    Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.
