|Number Of Channels:||16||Fiber Type:||Single Mode Fiber|
|Fiber Connector:||FC Or ST Or SC||Distance:||10km~80km (Optional)|
|Input Level:||>500mVp-p||Self-adaption Cable Equilibrium:||1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m|
|Input/Output Impedance:||75 Ω||Physical Interface:||1 Channels BNC Connector|
|Wavelength:||Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm||EPS:||DC5V|

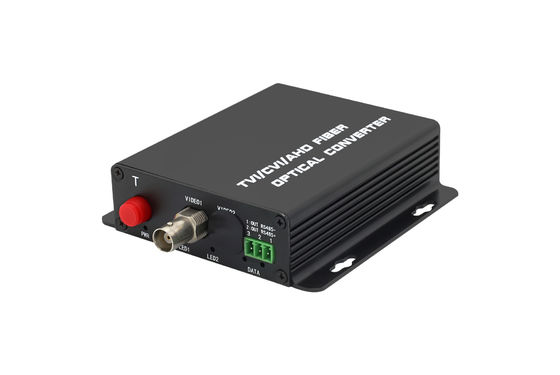

TVI Multiplexer over video/audio fiber optical to TVI converter bnc to fiber coaxial video converter
HD CVI /AHD /TVI video converter is designed for long-distance optical fiber transmission.
It adopt the advanced uncompressed HD composite video and high velocity digital optical
transmission technologies which convert the high definition signals to optical signals.
HD CVI /AHD /TVI video converter can simultaneously transmit 1/2/4/8/16 CH composite video.
Feature is real-time, synchronous, lossless, high reliability, coaxial point to point transmission.
The play-and-plug design makes the installation more convenient and easier for our customer.
² City traffic monitoring system
² Public security, safe city monitoring system
² Highway security protection, charging system
² Building, campus monitoring net
² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
² electric power, oilfield, television program transmission system
² Gymnasium (live video, audio transmission)
AHD TO Fiber Converter System connection diagram
|Optic fiber||50/125u multimode,62.5/125u multimode,9/125u single mode|
|Optical connector||FC,ST,SC (optional)|
|Distance||0~550M (MM) / 0~80KM (SM)|
|Number of Channels||1~16|
|Input/output impedance||BNC 75Ω (unbalance)|
|Standard video input/output voltage||1.0Vp-p|
|Rise and Fall time||<0.8ns|
|Optical Signal Intrinsic Jitter||<0.2 UI|
|Differential Gain||< ±1.5%|
|Differential Phase||< ±1°|
1 All of our package are international standard package
2 We will deliver our products as soon as the order confirmed
Welcome to inquire!
