8channnelCVI TVI AHD with RS485 Data digital video multiplexer 9 / 125u single mode fiber optic converter

China 8channnelCVI TVI AHD with RS485 Data digital video multiplexer 9 / 125u single mode fiber optic converter supplier
8channnelCVI TVI AHD with RS485 Data digital video multiplexer 9 / 125u single mode fiber optic converter supplier 8channnelCVI TVI AHD with RS485 Data digital video multiplexer 9 / 125u single mode fiber optic converter supplier 8channnelCVI TVI AHD with RS485 Data digital video multiplexer 9 / 125u single mode fiber optic converter supplier 8channnelCVI TVI AHD with RS485 Data digital video multiplexer 9 / 125u single mode fiber optic converter supplier 8channnelCVI TVI AHD with RS485 Data digital video multiplexer 9 / 125u single mode fiber optic converter supplier 8channnelCVI TVI AHD with RS485 Data digital video multiplexer 9 / 125u single mode fiber optic converter supplier

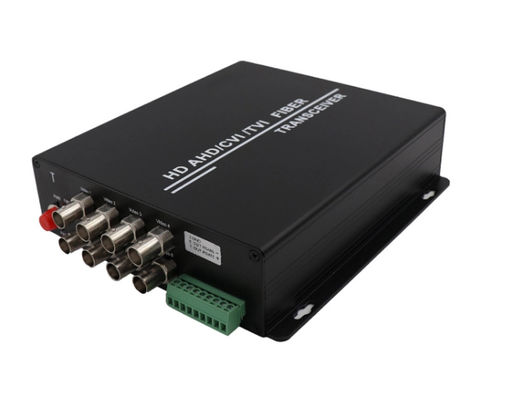

Large Image :  8channnelCVI TVI AHD with RS485 Data digital video multiplexer 9 / 125u single mode fiber optic converter

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-TVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Part Number: H-TVI-8V1D-T/RF Fiber Connector: FC Or ST Or SC
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Physical Interface: BNC Connector
Type Of Data: RS485

8 Channels HDTVI Video Fiber Optic Converter

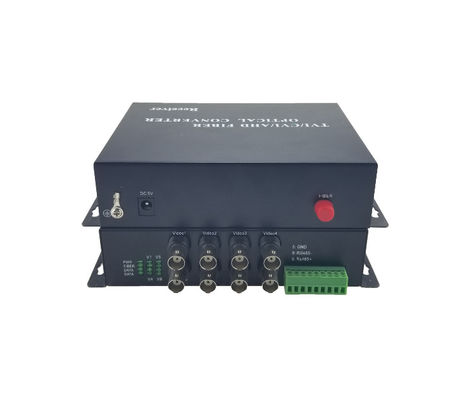

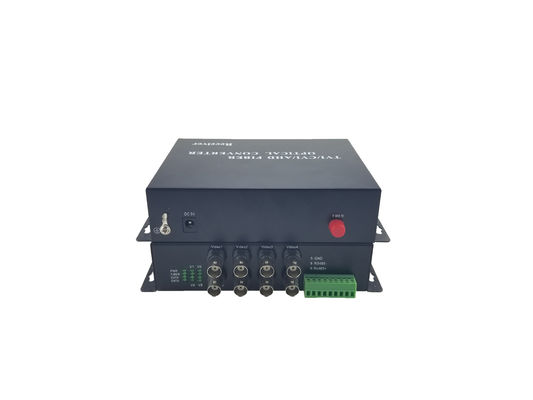

8channnelCVI TVI AHD with RS485 Data digital video multiplexer 9 / 125u single mode fiber optic converter





Specifications:



Opitcal Fiber:
Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,
62.5/125u multimode,
9/125u single mode
Rx sensitivity -25dBm
Optical connector FC (Default), ST, SC (optional)
Distance 0~550M (MM) / 0~20KM (SM)
AHD Video:
Number of Channels 1~8
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC
Other:
Power DC5V 2A
Power Consumption 6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Unit Weight(pair) 1/2-Ch:1.1kg,
4-Ch:1.8KG,
8-Ch:2.15KG
Dimension 1/2-Ch:108mm×106mm×27mm
4-Ch:173mm×173mm×30mm
8-Ch:173mm×167mm×45mm
Installation Wall mount
MTBF 100000Hours


Order Information:

Part Number Description Reach
HD-TVI-1VF-T/R 1ch CVI video 0~20Km
HD-TVI-1V1DF-T/R 1ch CVI video with 1ch data 0~20Km
HD- TVI-2VF-T/R 2ch CVI video 0~20Km
HD-TVI-2V1DF-T/R 2ch CVI video with 1ch data 0~20Km
HD-TVI-4VF-T/R 4ch CVI video 0~20Km
HD-TVI-4V1DF-T/R 4ch CVI video with 1ch data 0~20Km
HD-TVI-8VF-T/R 8ch CVI video 0~20Km
HD-TVI-8V1DF-T/R 8ch CVI video with 1ch data 0~20Km

Environmental Requirements:
Operating Temperature: 0 °C~+70 °C
Storage Temperature: -45 °C~+95 °C
Relative humidity: 0~95% (Non-condensing)
Power Voltage: AC85-260v/300mA
MTBF:≥105 hours
Power supplier:<3.5W

Product certification:
CE, FCC, ROHS, National certification



Competitive Advantage:



Ho-Link HDTVI Converters adopt the advanced uncompressed HD composite video and

high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.



HDTVI TO Fiber Converter System connection diagram:





8channnelCVI TVI AHD with RS485 Data digital video multiplexer 9 / 125u single mode fiber optic converter





We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
