4 Channel TVI video to fiber converter with 1 CH contact closure via single mode fiber transmitter+iRS485 data

China 4 Channel TVI video to fiber converter with 1 CH contact closure via single mode fiber transmitter+iRS485 data supplier
4 Channel TVI video to fiber converter with 1 CH contact closure via single mode fiber transmitter+iRS485 data supplier 4 Channel TVI video to fiber converter with 1 CH contact closure via single mode fiber transmitter+iRS485 data supplier 4 Channel TVI video to fiber converter with 1 CH contact closure via single mode fiber transmitter+iRS485 data supplier 4 Channel TVI video to fiber converter with 1 CH contact closure via single mode fiber transmitter+iRS485 data supplier 4 Channel TVI video to fiber converter with 1 CH contact closure via single mode fiber transmitter+iRS485 data supplier

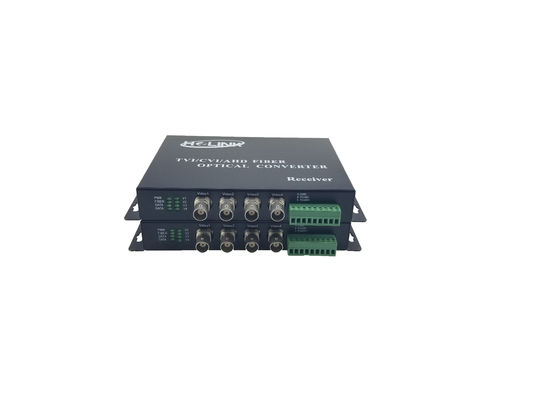

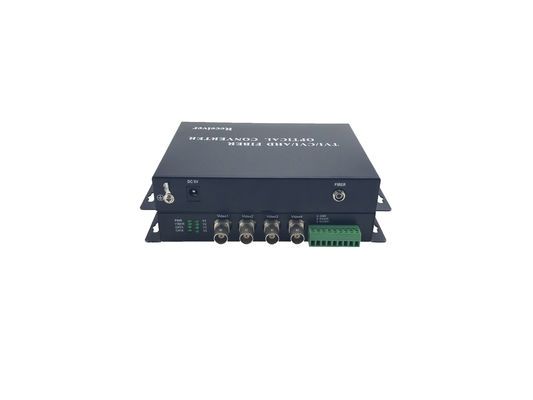

Large Image :  4 Channel TVI video to fiber converter with 1 CH contact closure via single mode fiber transmitter+iRS485 data

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-TVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Number Of Channels: 4 Fiber Type: Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Physical Interface: 1 Channels BNC Connector
Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm EPS: DC5V

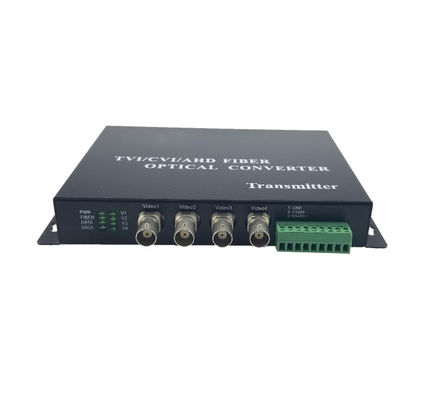

4 Channel TVI video to fiber converter with 1 CH contact closure via 1single mode fiber transmitter 20Km



Overview



     Fiber optical HDTVI converters adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.







Features



  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 8 channel HDTVI signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 1080p/25,1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation.





Opitcal:



Wavelength 1310nm&1470nm~1610nm
Output Power -14~ -8dBm / -5~0dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -30dBm
Optical connector FC,ST,SC (optional)
Distance 0~2KM (MM) / 0~120KM (SM)



Contact Closure:



Connector Standard terminal lead
Signal input alarm, Binary input, support TTL,RS-232/422/485 or passiveContact Closure
Signal output Arbitrary alarm, Binary output, support TTL,RS-232/422/485 or relay output



Input Power Requirements: DC 5V@2A
Power Adapter: AC 90V~240V
Power Consumption: < 3W
Stand-Alone Dimensions:

104mm × 104mm × 28mm or

175mm × 154mm × 30mm



Video:



Number of Channels 4CH TVI or normaol video
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC





2 Channel AHD/CVI/TVI video to fiber converter with 1 CH contact closure via 1single mode fiber transmitter 20Km







Packaging & Shipping
  1. Packaging : bags&caron box
  2. Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
  3. FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  4. DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.







Competitive Advantage:





     Ho-Link HDTVI Converters adopt the advanced uncompressed HD composite video and

high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.









HDTVI TO Fiber Converter System connection diagram



4 Channel TVI video to fiber converter with 1 CH contact closure via single mode fiber transmitter+iRS485 data











Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

4 Channel TVI video to fiber converter with 1 CH contact closure via single mode fiber transmitter+iRS485 data





Payment



4 Channel TVI video to fiber converter with 1 CH contact closure via single mode fiber transmitter+iRS485 data



Our Services



Welcome to inquire!



4 Channel TVI video to fiber converter with 1 CH contact closure via single mode fiber transmitter+iRS485 data
