2 channel video multiplexer Stand alone converter Three in One for 720P / 1080P HD CVI / TVI camera

China 2 channel video multiplexer Stand alone converter Three in One for 720P / 1080P HD CVI / TVI camera supplier
2 channel video multiplexer Stand alone converter Three in One for 720P / 1080P HD CVI / TVI camera supplier 2 channel video multiplexer Stand alone converter Three in One for 720P / 1080P HD CVI / TVI camera supplier 2 channel video multiplexer Stand alone converter Three in One for 720P / 1080P HD CVI / TVI camera supplier 2 channel video multiplexer Stand alone converter Three in One for 720P / 1080P HD CVI / TVI camera supplier 2 channel video multiplexer Stand alone converter Three in One for 720P / 1080P HD CVI / TVI camera supplier

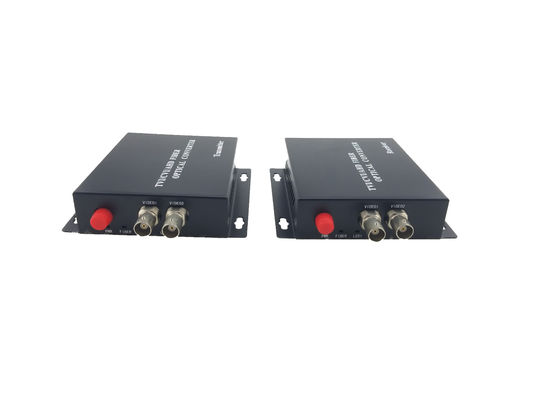

Large Image :  2 channel video multiplexer Stand alone converter Three in One for 720P / 1080P HD CVI / TVI camera

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-TVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Number Of Channels: 4 Fiber Type: Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Physical Interface: 1 Channels BNC Connector
Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm EPS: DC5V

CCTV HD TVI Video Converter Converters Three in One for 720P/1080P HD-CVI/TVI camera HD TVI Input (BNC) & Loop Out (BNC)


Product Description:



     AHD Video Over Fiber Converter can simultaneously transmit 1~64 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.






Descriptions

  1. Transmitter + Receiver
  2. Fiber Mode: Single-Mode
  3. Wavelengths: 1310nm/1550nm
  4. Optical Power Budget: 12dB
  5. Maximum Transmission Distance: 20km
  6. Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
  7. Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)





Key Features

  1. Support Point-to-Point or Daisy-Chain connection
  2. Uncompressed Digital Composite Video over one fiber
  3. Compatible with all PAL, NTSC,SECAM Video Systems
  4. Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
  5. Single-Mode Fiber Support for Distances up to 100 km
  6. LED Status Provide Rapid Indication of Operating Parameters
  7. No EMI or RFI and no ground loops
  8. Support Coarse Wavelength Division Multiplexing (CWDM)
  9. Stand alone
  10. Produce according to customer's specifications,providing OEM






Technical Indexes

Fiber FC, Single Mode Single Fiber
Transmition Distance 0-120km
Wavelength Transmitter: 1310nm(Tx)/1550nm(Rx)
Receiver: 1550nm(Tx)/1310nm(Rx)
Transmitter Input Level >500mVp-p
Receiver Output Level 1Vp-p
Self-adaption cable equilibrium



1080p: 75-5 coaxial cable,300m
960p: 75-5 coaxial cable,500m
720p: 75-5 coaxial cable,500m



Transmitter Input Return Loss >15dB
Input/Output Impedance 75Ω
Video Physical Interface BNC
Video Channel 1-Ch~16-Ch
Video bandwidth 50MHz
Sampling Bandwidth 10 bit
RS485 1-Ch Backward RS485 (Optional)
Indicators OPT, PWR, DATA, VIDEO
Power DC 5V2A
Power Consumption ≤7W
Operation Humidity 10%~90%
Operation Temperature -30°C~75°C





Packaging & Shipping
  1. Packaging : bags&caron box
  2. Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
  3. FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  4. DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

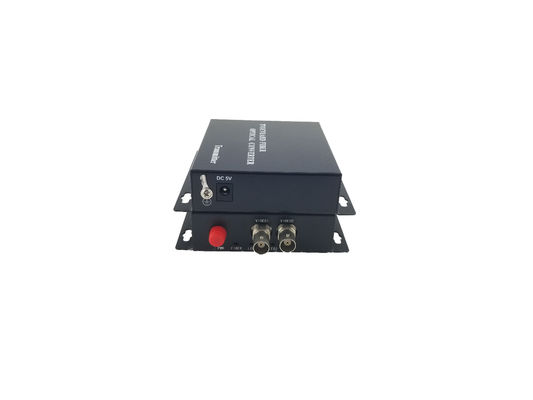

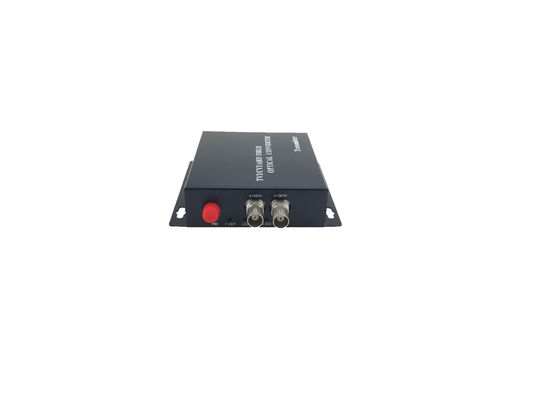

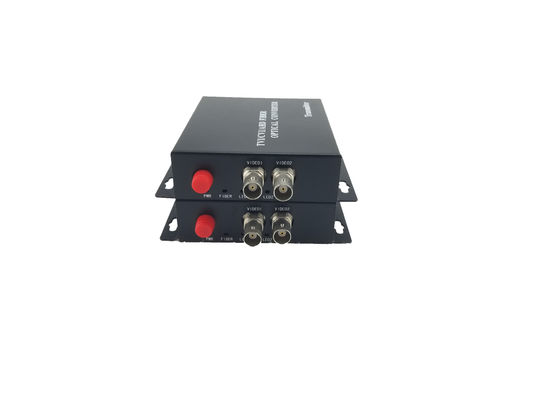

Photo Display


2 channel video multiplexer Stand alone converter Three in One for 720P / 1080P HD CVI / TVI camera






Application Diagram:





2 channel video multiplexer Stand alone converter Three in One for 720P / 1080P HD CVI / TVI camera



  • Ø City traffic monitoring system
  • Ø Public security, safe city monitoring system
  • Ø Highway security protection, charging system
  • Ø Building, campus monitoring net
  • Ø Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Ø Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • Ø electric power, oilfield, television program transmission system
  • Ø Gymnasium (live video, audio transmission)











2Ch AHD Video over Fiber Converter for 720P, 1080P/1Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter





We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
