4channel HD TVI CVI AHD Fiber video converter with one return data , 60km Digital Video receiver

China 4channel  HD TVI CVI AHD  Fiber video converter with one return data , 60km Digital Video receiver supplier
4channel  HD TVI CVI AHD  Fiber video converter with one return data , 60km Digital Video receiver supplier 4channel  HD TVI CVI AHD  Fiber video converter with one return data , 60km Digital Video receiver supplier 4channel  HD TVI CVI AHD  Fiber video converter with one return data , 60km Digital Video receiver supplier 4channel  HD TVI CVI AHD  Fiber video converter with one return data , 60km Digital Video receiver supplier 4channel  HD TVI CVI AHD  Fiber video converter with one return data , 60km Digital Video receiver supplier 4channel  HD TVI CVI AHD  Fiber video converter with one return data , 60km Digital Video receiver supplier

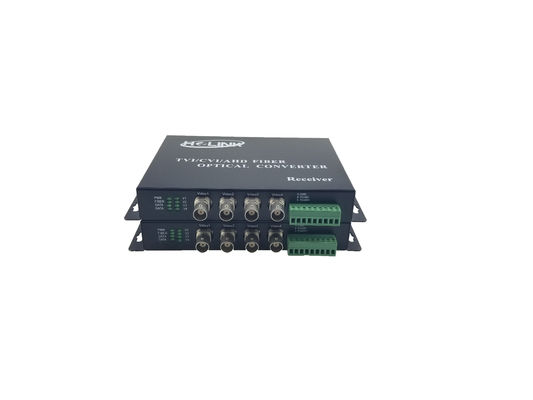

Large Image :  4channel HD TVI CVI AHD Fiber video converter with one return data , 60km Digital Video receiver

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-TVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Number Of Channels: 1 Fiber Type: Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Physical Interface: 1 Channels BNC Connector
Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm EPS: DC5V

4ch 1080P HD TVI Fiber video converter with one return data to fiber converter, reach 60km on SMF or MMF



HDTVI to fiber converters adopt the advanced uncompressed HDTVI composite video and high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 20Km) transmission through fibers.



Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source(computer signal source,VGA signal source, high digital DVD/DVR and various resolution HDMI signal…) to long distance terminal easily, with local VGA loop through, independent analog audio, reverse 232 serial port, with,with strong anti-interference performance, ensure the signal completed and stable





Features

  • Non-compression coding technology
  • Automatically identify formats of input videos.
  • Support transmission of HDTVI Video signal and controlling PTZ data RS485 simultaneously though fiber optical cable
  • DC 5V2A power supply
  • Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.
  • Through LED indicators to inform its functional mode
  • Industrial wide range of operational temperature
  • Plug and play, simple installation.

Technical Indexes

Fiber FC, Single Mode Single Fiber
Transmition Distance 0-20km
Wavelength Transmitter: 1310nm(Tx)/1550nm(Rx)
Receiver: 1550nm(Tx)/1310nm(Rx)
Transmitter Input Level >500mVp-p
Receiver Output Level 1Vp-p
Self-adaption cable equilibrium 1080p: 75-5 coaxial cable, 300m
720p: 75-5 coaxial cable, 500m
Transmitter Input Return Loss >15dB
Input/Output Impedance 75Ω
Video Physical Interface BNC
Video Channel 4-Ch
Video bandwidth 50MHz
Sampling Bandwidth 10 bit
RS485 1-Ch Backward RS485 (Optional)
Indicators OPT, PWR, DATA, VIDEO
Power DC 5V2A
Power Consumption ≤7W
Operation Humidity 10%~90%
Operation Temperature -30°C~75°C

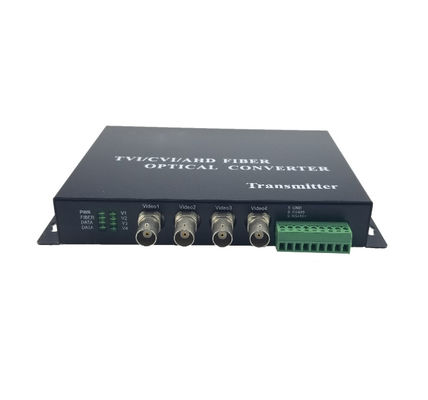

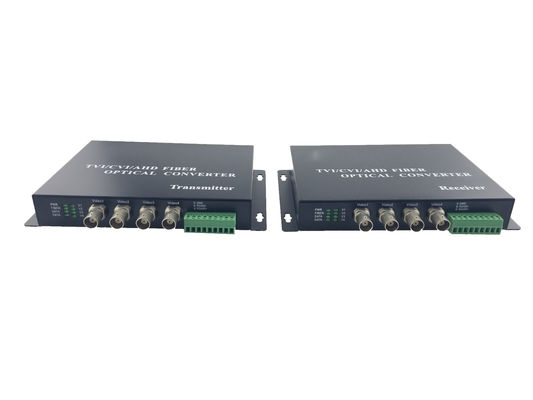

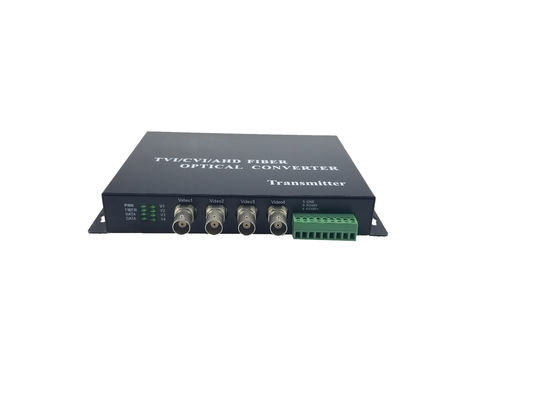

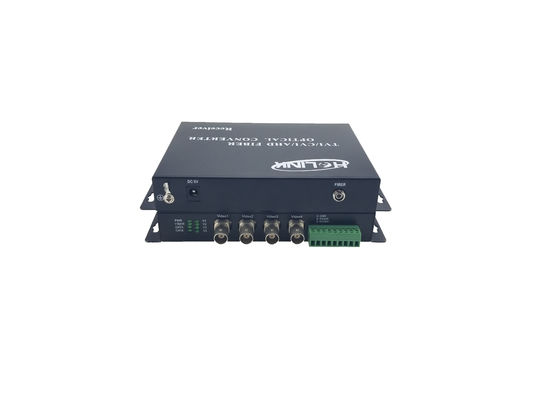

Photo Display

4channel  HD TVI CVI AHD  Fiber video converter with one return data , 60km Digital Video receiver



4channel  HD TVI CVI AHD  Fiber video converter with one return data , 60km Digital Video receiver





Competitive Advantage:

Ho-Link HDTVI Converters adopt the advanced uncompressed HD composite video and

high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.



Company Photo



4channel  HD TVI CVI AHD  Fiber video converter with one return data , 60km Digital Video receiver

HDTVI TO Fiber Converter System connection diagram



4channel  HD TVI CVI AHD  Fiber video converter with one return data , 60km Digital Video receiver
