0 ~ 20KM Distance cvi tvi ahd Fiber Converter 4 channel single mode fiber transceiver

China 0 ~ 20KM Distance cvi tvi ahd Fiber Converter 4 channel single mode fiber transceiver supplier
0 ~ 20KM Distance cvi tvi ahd Fiber Converter 4 channel single mode fiber transceiver supplier 0 ~ 20KM Distance cvi tvi ahd Fiber Converter 4 channel single mode fiber transceiver supplier 0 ~ 20KM Distance cvi tvi ahd Fiber Converter 4 channel single mode fiber transceiver supplier 0 ~ 20KM Distance cvi tvi ahd Fiber Converter 4 channel single mode fiber transceiver supplier 0 ~ 20KM Distance cvi tvi ahd Fiber Converter 4 channel single mode fiber transceiver supplier 0 ~ 20KM Distance cvi tvi ahd Fiber Converter 4 channel single mode fiber transceiver supplier

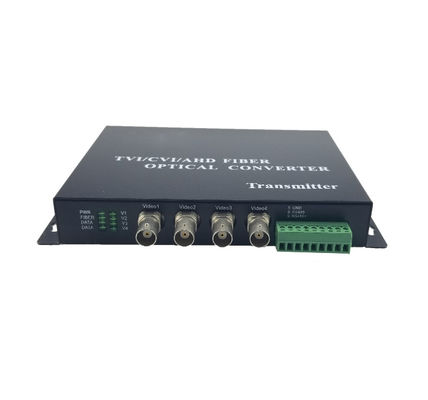

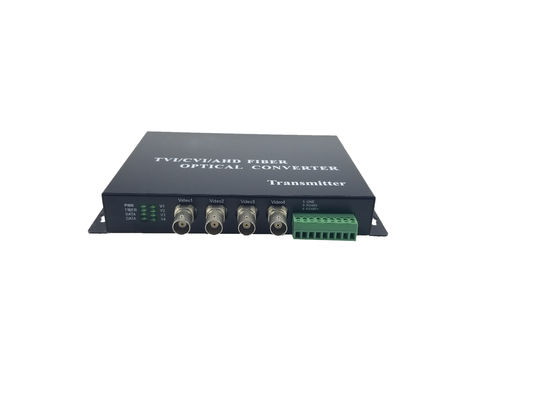

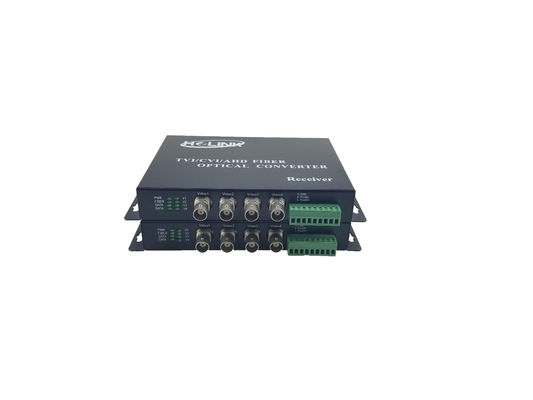

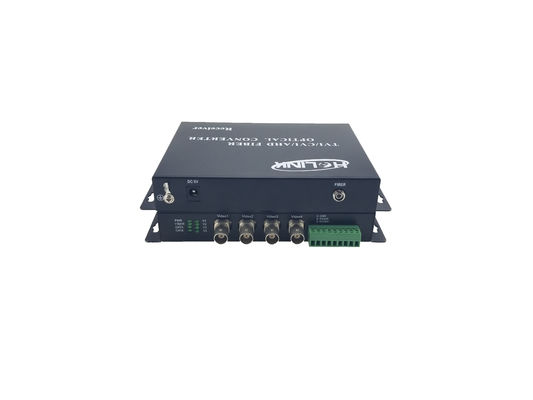

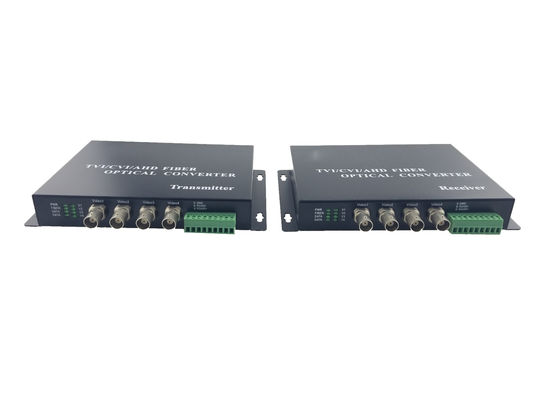

Large Image :  0 ~ 20KM Distance cvi tvi ahd Fiber Converter 4 channel single mode fiber transceiver

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Application: CCTV/Protection/monitor Ect Color: Black
OEM: Support Place: SHENZHEN,GUANGDONG,CHINA
Fuction Support: Video,Audio,date,hd-sdi,AVI,AHD,HDMI Network Port: WDM Optical
Video Port: 4 Channel 1080P High Resolution Control Port: RS-485

4 channel Forward AHD Video / Single Fiber SM 20km Simplex FC conector 720P/ 1080P AHD Video converter







Overview



    AHD Video Over Fiber Converter can simultaneously transmit 1~64 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.



0 ~ 20KM Distance cvi tvi ahd Fiber Converter 4 channel single mode fiber transceiver



Features:

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~64 channels AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation



Application Diagram:





0 ~ 20KM Distance cvi tvi ahd Fiber Converter 4 channel single mode fiber transceiver



  • Ø City traffic monitoring system
  • Ø Public security, safe city monitoring system
  • Ø Highway security protection, charging system
  • Ø Building, campus monitoring net
  • Ø Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Ø Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • Ø electric power, oilfield, television program transmission system
  • Ø Gymnasium (live video, audio transmission)





Technical Specification



Opitcal:



Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~80KM (SM)



Video:



Number of Channels 1~16
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC
Order Information:


Part No. Description
H-TVI/CVI/AHD-1V-T/RF 1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF 1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF 2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF 2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF 4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF 4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF 8 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-8V1D-T/RF 8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-16V-T/RF 16 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-16V1D-T/RF 16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-32V-T/RF 32 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-32V1D-T/RF 32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data











8 ch hd ahd fiber optic to coaxial converter for 1080p hdahd camera









We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
