Payment & Shipping Terms:
|Power:||220VAC Or -48VDC||Date Support:||RS232,RS422,485|
|Distance:||2km To 120km||Rise And Fall Time:||<0.8ns|
|Application:||CCTV/Protection/monitor Ect||Fuction Support:||Video,Audio,date,hd-sdi,AVI,AHD,HDMI|

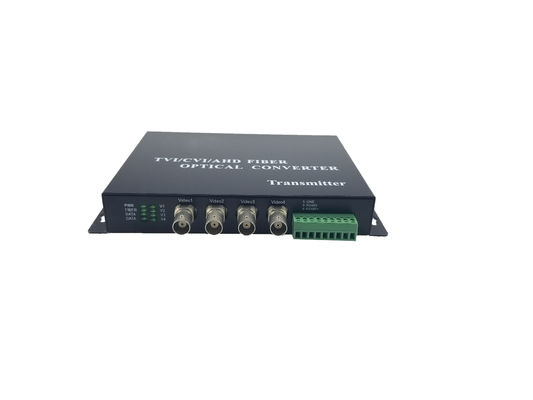

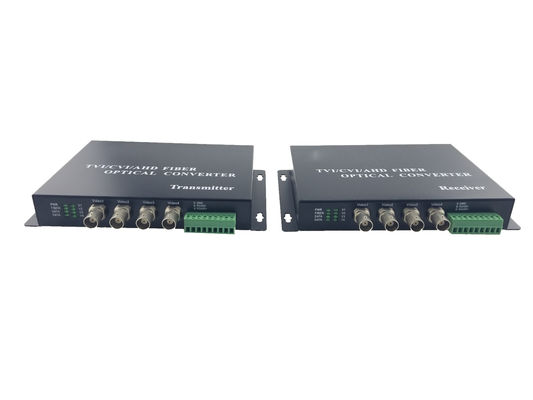

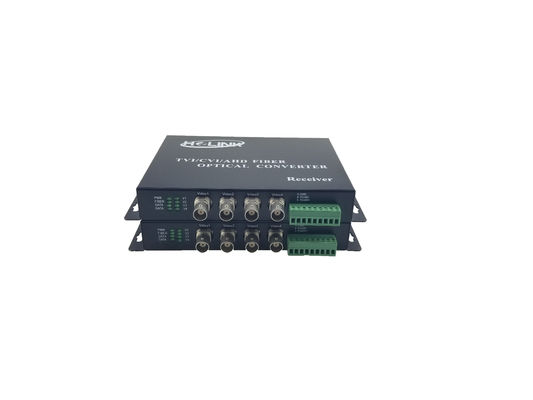

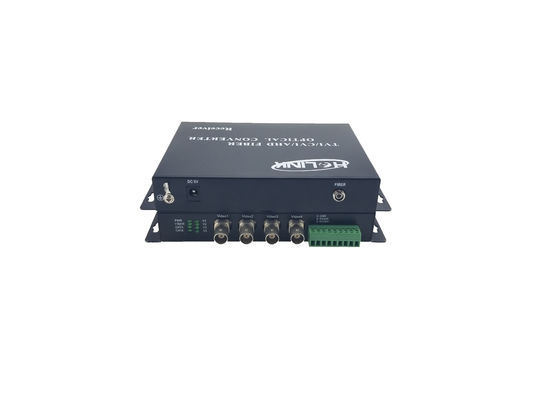

4 Channel AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
Video Converter can simultaneously transmit 1-16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.
Devices are available for either standalone or rack-mount installation, which is suitable for
different working environment .
Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.
² City traffic monitoring system
² Public security, safe city monitoring system
² Highway security protection, charging system
² Building, campus monitoring net
² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
² electric power, oilfield, television program transmission system
² Gymnasium (live video, audio transmission)
AHD TO Fiber Converter System connection diagram
|Optic fiber||50/125u multimode,62.5/125u multimode,9/125u single mode|
|Optical connector||FC,ST,SC (optional)|
|Distance||0~550M (MM) / 0~80KM (SM)|
|Number of Channels||1~16|
|Input/output impedance||BNC 75Ω (unbalance)|
|Standard video input/output voltage||1.0Vp-p|
|Rise and Fall time||<0.8ns|
|Optical Signal Intrinsic Jitter||<0.2 UI|
|Differential Gain||< ±1.5%|
|Differential Phase||< ±1°|
1 All of our package are international standard package
2 We will deliver our products as soon as the order confirmed
Welcome to inquire!
