1 Pair 8 Channel RS485 Return Data HD CVI TVI AHD BNC Coaxial Video Converter

China 1 Pair 8 Channel RS485 Return Data HD CVI TVI AHD BNC Coaxial Video Converter supplier
1 Pair 8 Channel RS485 Return Data HD CVI TVI AHD BNC Coaxial Video Converter supplier 1 Pair 8 Channel RS485 Return Data HD CVI TVI AHD BNC Coaxial Video Converter supplier 1 Pair 8 Channel RS485 Return Data HD CVI TVI AHD BNC Coaxial Video Converter supplier 1 Pair 8 Channel RS485 Return Data HD CVI TVI AHD BNC Coaxial Video Converter supplier

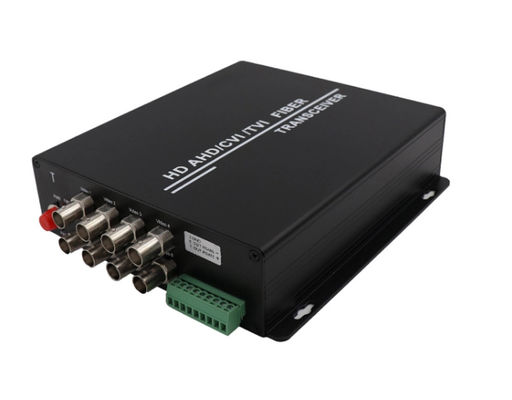

Large Image :  1 Pair 8 Channel RS485 Return Data HD CVI TVI AHD BNC Coaxial Video Converter

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Resolution: 1080P,960P,720P Dimension: 173mm*167mm*45mm
Power Consumption: ≤6W Installation: Wall Mount
Application: CCTV/Protection/monitor Ect Fuction Support: Video,Audio,date,hd-sdi,AVI,AHD,HDMI
Warranty: 3 Year Fiber Power: -9~ -5dBm
Network Port: WDM Optical Protocol: AHD CVI TVI

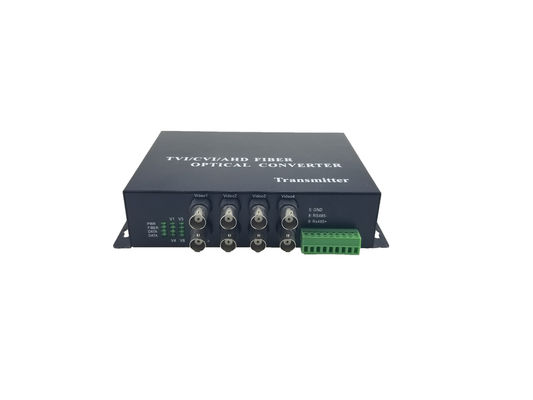

1080P HD AHD Digital Video Fiber Optical Media Converters - For 1080p 960p 720p AHD CVI TVI HD CCTV




Product Description



Introduction



HD CVI /AHD /TVI video converter is designed for long-distance optical fiber transmission.

It adopt the advanced uncompressed HD composite video and high velocity digital optical

transmission technologies which convert the high definition signals to optical signals.1 Pair 8 Channel RS485 Return Data HD CVI TVI AHD BNC Coaxial Video Converter



HD CVI /AHD /TVI video converter can simultaneously transmit 1/2/4/8/16 CH composite video.

Feature is real-time, synchronous, lossless, high reliability, coaxial point to point transmission.

The play-and-plug design makes the installation more convenient and easier for our customer.1 Pair 8 Channel RS485 Return Data HD CVI TVI AHD BNC Coaxial Video Converter







Feature

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~16 channel AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation







Application



² City traffic monitoring system

² Public security, safe city monitoring system

² Highway security protection, charging system

² Building, campus monitoring net

² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)

² electric power, oilfield, television program transmission system

² Gymnasium (live video, audio transmission)







AHD TO Fiber Converter System connection diagram



1 Pair 8 Channel RS485 Return Data HD CVI TVI AHD BNC Coaxial Video Converter









Technical Specification



Opitcal:



Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~80KM (SM)



Video:



Number of Channels 1~16
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC
