4 Channels 1080p HDTVI converter fiber video transmission 10km ~ 80km available

China 4 Channels 1080p HDTVI converter fiber video transmission 10km ~ 80km available supplier
4 Channels 1080p HDTVI converter fiber video transmission 10km ~ 80km available supplier 4 Channels 1080p HDTVI converter fiber video transmission 10km ~ 80km available supplier 4 Channels 1080p HDTVI converter fiber video transmission 10km ~ 80km available supplier 4 Channels 1080p HDTVI converter fiber video transmission 10km ~ 80km available supplier 4 Channels 1080p HDTVI converter fiber video transmission 10km ~ 80km available supplier 4 Channels 1080p HDTVI converter fiber video transmission 10km ~ 80km available supplier

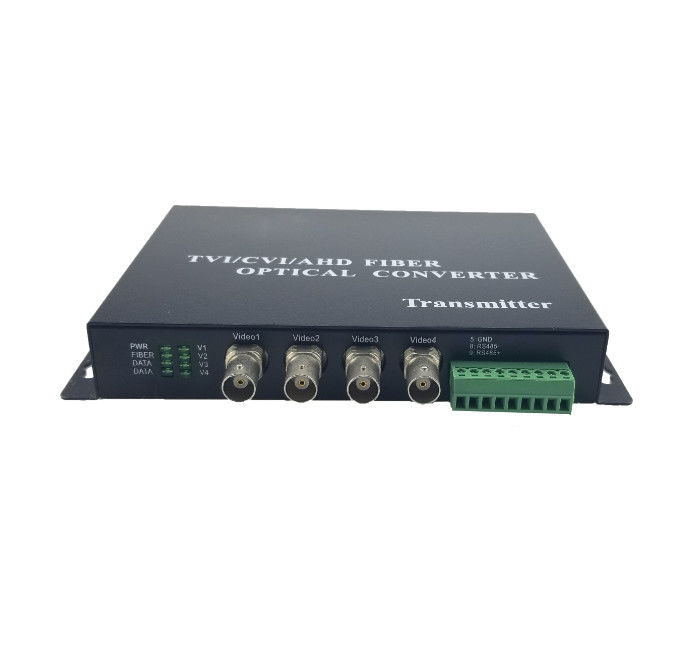

Large Image :  4 Channels 1080p HDTVI converter fiber video transmission 10km ~ 80km available

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-TVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Fiber Type: Single Mode Fiber Fiber Connector: FC Or ST Or SC
Distance: 10km~80km (Optional) Input Level: >500mVp-p
Input/Output Impedance: 75 Ω Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm
EPS: DC5V

1080P/720P 4 Channels HDTVI Video Over Fiber Converter with 1Ch RS485





Introduction



     HD CVI /AHD /TVI video converter is designed for long-distance optical fiber transmission.

It adopt the advanced uncompressed HD composite video and high velocity digital optical

transmission technologies which convert the high definition signals to optical signals.



    HD CVI /AHD /TVI video converter can simultaneously transmit 1/2/4/8/16 CH composite video.

Feature is real-time, synchronous, lossless, high reliability, coaxial point to point transmission.

The play-and-plug design makes the installation more convenient and easier for our customer.

4 Channels 1080p HDTVI converter fiber video transmission 10km ~ 80km available







Specifications:



Feature Description
Optical Fiber Type Single mode fiber
Fiber Connector FC/SC/ST
Distance 0km~80km
Wavelength Transmitter
T1310nm, R1550nm.
Receiver
T1550nm,R1310nm.
HDTVI(Transmitting) Input level >500mVp-p
self-adaptionly cable equilibrium 1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m
Input/Output Impedance 75 Ω
Physical Interface BNC
HDTVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface BNC
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate ≤<10 -7
Operation Mode Half-Duplex;Full-Duplex;RS-232
Indicators LOS,PWR,VIDEO
Mean time between failures(MTBF)



>100 000 hours

General EPS DC5V
Power Consumption ≤ 5W







Description:



Ø Non-compression coding technology

Ø Automatically identify formats of input videos

Ø Support transmission of 4 channels TVI signal and controlling data simultaneously though coaxial cable

Ø DC 5V power supply

Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc

Ø Through LED indicators to inform its functional mode

Ø Industrial wide range of operational temperature

Ø Plug and play, simple installation







Applications:

  • City traffic monitoring system
  • Public security, safe city monitoring system
  • Highway security protection, charging system
  • Building, campus monitoring net
  • Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • electric power, oilfield, television program transmission system
  • Gymnasium (live video, audio transmission)







HDTVI TO Fiber Converter System connection diagram:





4 Channels 1080p HDTVI converter fiber video transmission 10km ~ 80km available
