20km FC connector 1 channnel TVI converter with 1ch RS485 data fiber optic video transmitter

China 20km FC connector 1 channnel TVI converter with 1ch RS485 data fiber optic video transmitter supplier
20km FC connector 1 channnel TVI converter with 1ch RS485 data fiber optic video transmitter supplier 20km FC connector 1 channnel TVI converter with 1ch RS485 data fiber optic video transmitter supplier 20km FC connector 1 channnel TVI converter with 1ch RS485 data fiber optic video transmitter supplier 20km FC connector 1 channnel TVI converter with 1ch RS485 data fiber optic video transmitter supplier 20km FC connector 1 channnel TVI converter with 1ch RS485 data fiber optic video transmitter supplier

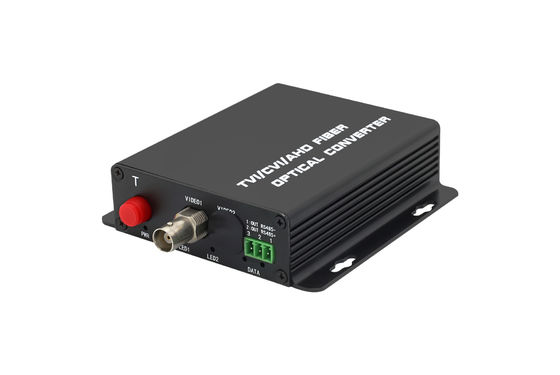

Large Image :  20km FC connector 1 channnel TVI converter with 1ch RS485 data fiber optic video transmitter

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-TVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Number Of Channels: 1 Fiber Type: Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 20km
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Wavelength: T1310nm, R1550nm

720P/1080P 1 Channel HDTVI Video Over Fiber Converter







Overview:



      HDTVI to fiber converters adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.

20km FC connector 1 channnel TVI converter with 1ch RS485 data fiber optic video transmitter

Features:

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~64 channels HDCVI signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation.





Specifications:



Feature Description
Optical Fiber Type Single mode fiber
Fiber Connector FC/SC/ST
Distance 0km~80km
Wavelength Transmitter
T1310nm, R1550nm.
Receiver
T1550nm,R1310nm.
HDTVI(Transmitting) Input level >500mVp-p
self-adaptionly cable equilibrium 1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m
Input/Output Impedance 75 Ω
Physical Interface BNC
HDTVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface BNC
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate ≤<10 -7
Operation Mode Half-Duplex;Full-Duplex;RS-232
Indicators LOS,PWR,VIDEO
Mean time between failures(MTBF)



>100 000 hours

General EPS DC5V
Power Consumption ≤ 5W







Applications:
  • Ø City traffic monitoring system
  • Ø Public security, safe city monitoring system
  • Ø Highway security protection, charging system
  • Ø Building, campus monitoring net
  • Ø Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Ø Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • Ø electric power, oilfield, television program transmission system
  • Ø Gymnasium (live video, audio transmission)







Competitive Advantage:



Ho-Link HDTVI Converters adopt the advanced uncompressed HD composite video and

high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.



HDTVI TO Fiber Converter System connection diagram





20km FC connector 1 channnel TVI converter with 1ch RS485 data fiber optic video transmitter







Order Information:





Part Number

Description

Reach

HD-TVI-1VF-T/R

1ch CVI video

0~20Km

HD-TVI-1V1DF-T/R

1ch CVI video with 1ch data

0~20Km

HD- TVI-2VF-T/R

2ch CVI video

0~20Km

HD-TVI-2V1DF-T/R

2ch CVI video with 1ch data

0~20Km

HD-TVI-4VF-T/R

4ch CVI video

0~20Km

HD-TVI-4V1DF-T/R

4ch CVI video with 1ch data

0~20Km

HD-TVI-8VF-T/R

8ch CVI video

0~20Km

HD-TVI-8V1DF-T/R

8ch CVI video with 1ch data

0~20Km





We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.







Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed
