32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode

China 32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode supplier
32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode supplier 32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode supplier 32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode supplier 32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode supplier

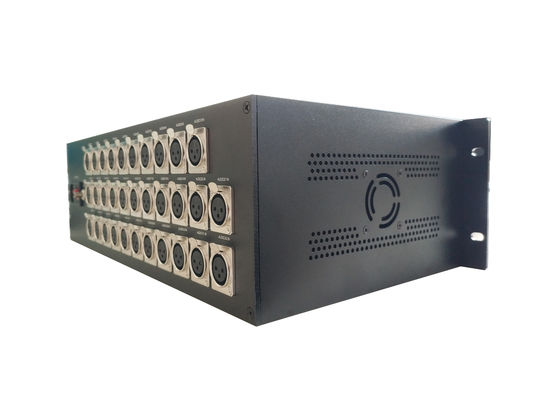

Large Image :  32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: L-XLR-S32A↑-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Optical Wavelength: 1310nm&1470nm~1610nm Output Power: -1~ -8dBm
Optic Fiber: 50/125u Multimode,62.5/125u Multimode,9/125u Single Mode Rx Sensitivity: -24dBm
Optical Connector: FC/ST/SC/LC (optional) Distance: 0~20KM/40KM/60KM/80/100KM (SM)
Number Of Channels: 32 Relative Humidity: 0% ~ 95% (non-condensing)
Dimensions: 482mm × 270mm × 177mm Weight: 8.5kg(include Transmitter & Receiver )

32 Channel Forward XLR Balanced Audio to Fiber Converter

Overview

The balanced audio sends balanced line level XLR broadcast quality audio signal up 12.5 miles on single mode fiber.The system consists of a transmitter and receiver that support 16-bit digitally encoded broadcast audio for use on single mode optical fiber.



These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone installation.LED indicators are provided to instantly monitor the system operating status.

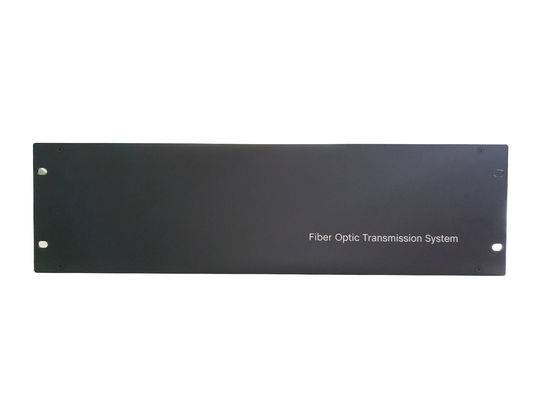

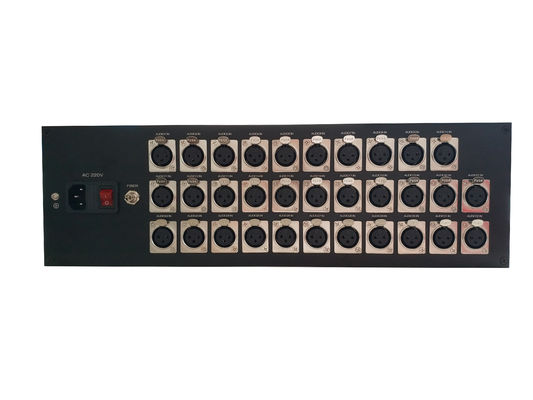

32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode

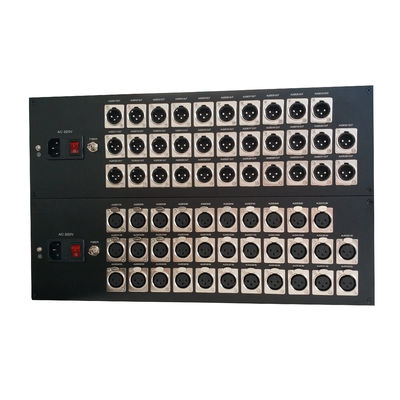

32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode



Connection Diagram



32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode





Technical Indexes

Parameter Specifications
Optical Wavelength 1310nm&1470nm~1610nm
Output Power -1~ -8dBm
Optic Fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx Sensitivity -24dBm
Optical Connector FC/ST/SC/LC (optional)
Distance 0~20KM/40KM/60KM/80/100KM (SM)

Balanced Audio



Number of Channels 32
Input Connector XLR (female)
Output Connector XLR (male)
Input / Output Impedance 10K Ohm
Input Capacitance LINE Inputs 10 pF
Max Input/output Voltage 1.228Vp-p (+4dBu)
Frequency Response 10 Hz~24kHz @±3dB
Sample Rates From 48kHz
SNR > 80dB
Electrical & Mechanical Input Power Requirements DC 12V@6A
Power Adapter AC 100V~240V
Power Consumption < 40W
Dimensions 482mm × 270mm × 177mm
Weight 8.5kg(include Transmitter & Receiver )
Environmental Operating Temperature -20°C ~ +75°C
Storage Temperature -40°C ~ +85°C
Relative Humidity 0% ~ 95% (non-condensing)
MTBF >100,000 hours



Standalone Dimensions



32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode



Order Information



Model No. Product description
HL-XLR-S32A↑-20TF 32 x forward XLR balanced audio converter;FC 20km;Transmitter
HL-XLR-S32A↑-20RF 32 x forward XLR balanced audio converter;FC 20km;Receiver
HL-XLR-S32A↑-40TF 32 x forward XLR balanced audio converter;FC 40km;Transmitter
HL-XLR-S32A↑-40RF 32 x forward XLR balanced audio converter;FC 40km;Receiver
HL-XLR-S32A↑-60TF 32 x forward XLR balanced audio converter;FC 60km;Transmitter
HL-XLR-S32A↑-60RF 32 x forward XLR balanced audio converter;FC 60km;Receiver
HL-XLR-S32A↑-80TF 32 x forward XLR balanced audio converter;FC 80km;Transmitter
HL-XLR-S32A↑-80RF 32 x forward XLR balanced audio converter;FC 80km;Receiver
HL-XLR-S32A↑-100TF 32 x forward XLR balanced audio converter;FC 100km;Transmitter
HL-XLR-S32A↑-100RF 32 x forward XLR balanced audio converter;FC 100km;Receiver


Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

Payment



32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode



Our Services



Welcome to inquire!



32 x forward XLR balanced audio converter;FC 20 ~ 100 km;Audio signals up to 12.5 miles in a single mode
