CE VGA To Fiber Converter Audio Video / VGA Multiplexer rack 8CH Audio + Data + Fiber Port

China CE VGA To Fiber Converter Audio Video / VGA Multiplexer rack 8CH Audio + Data + Fiber Port supplier
CE VGA To Fiber Converter Audio Video / VGA Multiplexer rack 8CH Audio + Data + Fiber Port supplier CE VGA To Fiber Converter Audio Video / VGA Multiplexer rack 8CH Audio + Data + Fiber Port supplier CE VGA To Fiber Converter Audio Video / VGA Multiplexer rack 8CH Audio + Data + Fiber Port supplier CE VGA To Fiber Converter Audio Video / VGA Multiplexer rack 8CH Audio + Data + Fiber Port supplier

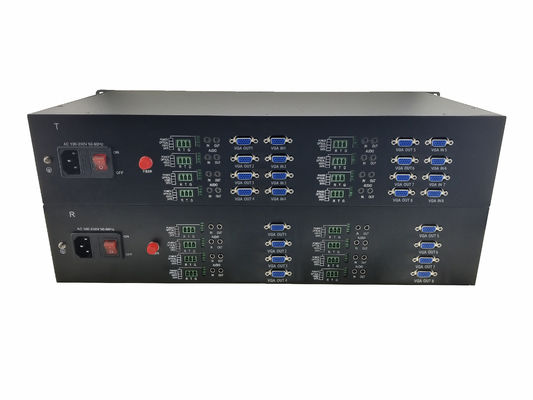

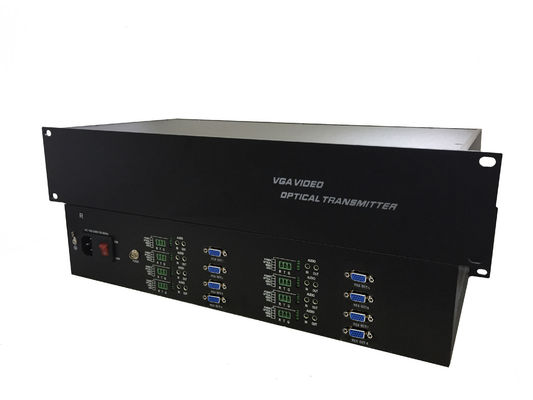

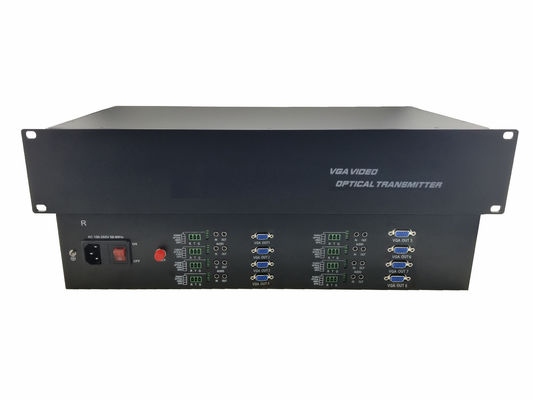

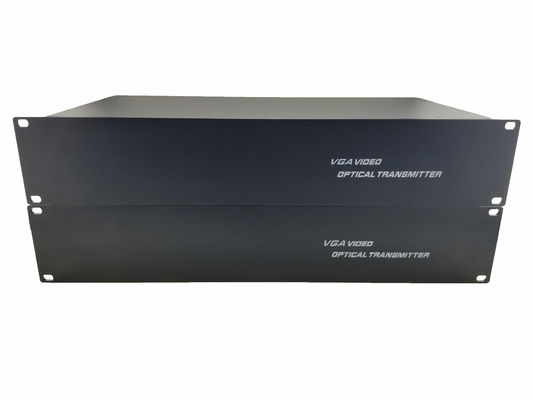

Large Image :  CE VGA To Fiber Converter Audio Video / VGA Multiplexer rack 8CH Audio + Data + Fiber Port

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/FCC/ROHS
Model Number: H-VGA-1V1D1A-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: Negotiable
Packaging Details: International Standard Package
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pairs per month
Contact Now
Detailed Product Description
Product Name: VGA Over Fiber Converter Application: Multimedia Publishing System
Size Of Converter: 16cm*11cm*3cm Max Resolution: 1920*1080
Optical Wavelength: 1310nm,1550nm Fiber Interface: LC Connector

VGA DIGITAL Fiber optical converter audio video/vga multiplexer 1CH Audio + Data + Fiber Port. Single Fiber







Overview:



VGA Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source(computer signal source,VGA signal source, high digital DVD/DVR and various resolution HDMI signal…) to long distance terminal easily, with local VGA loop through, independent analog audio, reverse 232 serial port, with,with strong anti-interference performance, ensure the signal completed and stable.



CE VGA To Fiber Converter Audio Video / VGA Multiplexer rack 8CH Audio + Data + Fiber Port







Specifications:


Temperature -5 to +35°C
Humidity 5 to 90 % RH (no condensation)
The signal of Input and output VGA
Video format
1920 x 1200@60
1920 x 1080@60
1600 x 1200@60
1680 x 1050@60
1280 x 1024@60
1280 x 1024@75
1280 x 800@60
1280 x 768@60
1280 x 720@60
1024 x 768@60
1024 x 768@75
800 x 600@60
800 x 600@75



transmission distance

5KM

20KM

40KM

60KM

Input and output audio 3.5MMaudio
Input and output audio format 44.1K,48K,96K,176K,192K
Serial port Baud rate Support 115200 and below
Input voltage DC 5V,inside+ outside-
Power consumption

VGA Receiver 4W

VGA Transmitter 4W

Device size L*W*H (mm)120X97.5X25.2
















Each LED indicator lamp:



Indicator Light VGA Transmitter VGA Receiver
VIDEO On Video signal on
Off Video signal off
LOCK On Fixed video signal
Off Not fixed video signal
RUN On Device works smoothly
Off Device not works smoothly
POWER On Power on
Off Power off









Main features:



1, Full digital, Uncompressed HD optical fiber transmission

2, Support Full HD 1920*1080@60Hz

3, The attenuation of optical module SFP low to -3db

4, Support VGA 1.3b Protocal

5, Support KVM

6, Automatic equalization inside, stable and clear graphics.

7, ESD protection circuit inside, to ensure the ESD damage.

8, Easily to installation, plug and play, no need to set up

9, Transmit 1-ch VGA video & 1-ch stereo audio & 1-CH RS232 DATA over one fiber

















Application Diagram:



VGA DIGITAL Fiber optical converter audio video/vga multiplexer 1CH Audio + Data + Fiber Port. Single Fiber
