HDCVI / TVI / ADH HD 1080p Video Converter Backward Data RS485 Fiber Converter

China HDCVI / TVI / ADH HD 1080p Video Converter Backward Data RS485 Fiber Converter supplier
HDCVI / TVI / ADH HD 1080p Video Converter Backward Data RS485 Fiber Converter supplier HDCVI / TVI / ADH HD 1080p Video Converter Backward Data RS485 Fiber Converter supplier HDCVI / TVI / ADH HD 1080p Video Converter Backward Data RS485 Fiber Converter supplier HDCVI / TVI / ADH HD 1080p Video Converter Backward Data RS485 Fiber Converter supplier

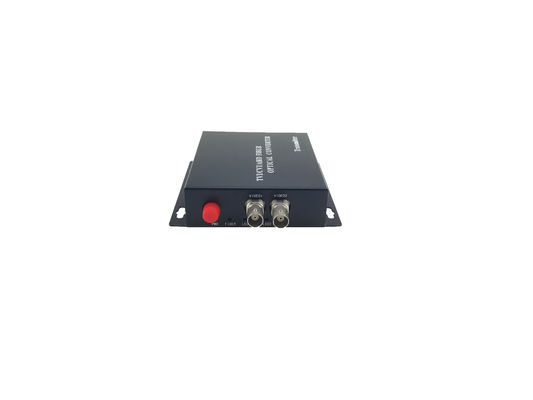

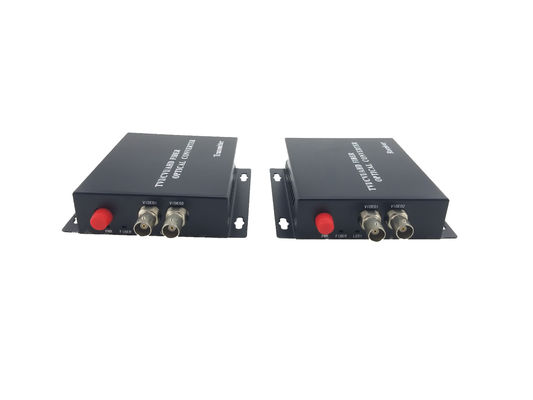

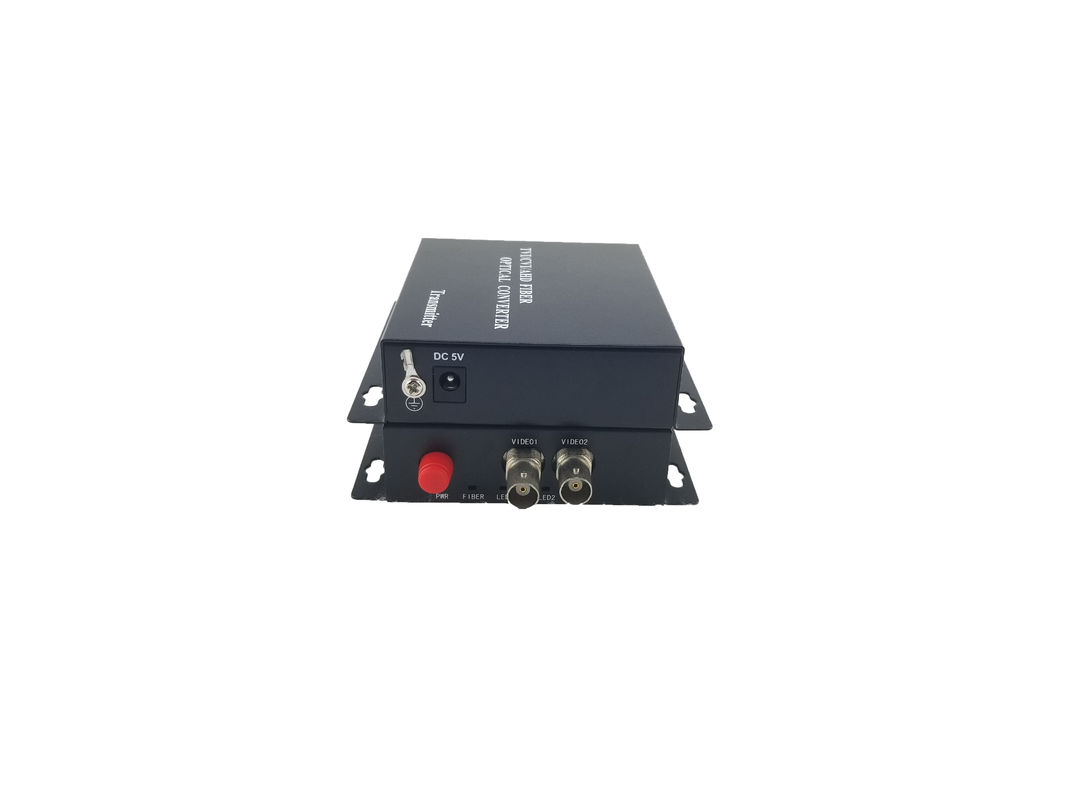

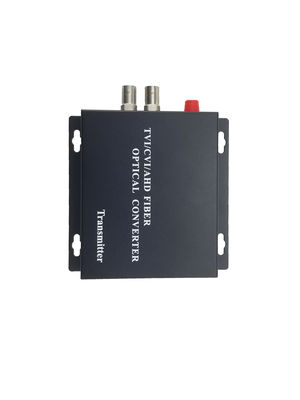

Large Image :  HDCVI / TVI / ADH HD 1080p Video Converter Backward Data RS485 Fiber Converter

Product Details:

Place of Origin: China(mainland)
Brand Name: holink
Certification: CE FCC RoHS
Model Number: H-CVI/TVI/AHD-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Receiver: T1550nm/R1310nm Transmission Distance: 20KM
Brand Name: Holink Fiber Type: Single Mode Fiber
Video Bandwidth: 5Hz~10MHz Interface: BNC Outlet

HDCVI/TVI/ADH video (2MP(1080P) HDCVI Camera)+ Backward Data RS485 Fiber Converter

CVI/TVI/AHD-2V-T/RFSeries fiber video multiplexers transmit 2-channel of broadcast quality video using 8-bit digitally encoding and decoding over one multimode or single-mode optical fiber. The modules are directly compatible with NTSC, PAL or SECAM CCTV camera systems. These multiplexer units are typically used in applications that have fixed cameras.

The digital video optical transmitters and receivers (video converters) transmit high fidelity signals of video, audio, data ,telephone, etc. with advanced technology which enables efficient transmission with minimum disturbance.



Feature:

  • 1. Non-compression coding technology.
    2. Support any high-resolution video signal
    3.Support 1~16ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable
    4. Wide optical dynamic range and advanced adaptive technology, transmissiondistance up to 20KM
    5. Support no-damage regenerative trunk of video
    6. Rich LED indicator diagnostic indication
    7. Plug and Play, hot swappable
    8. DC 5V power supply

Specification


Optical Parameters
Wavelength 850/1310µm(Multi-mode)
1310/1550µm(Single Mode)
Optical Interface FC, SC, and ST optional
Video Parameters
Interface BNC outlet
Nominal Input/output PWL 1.0Vp-p
Nominal Input/output Impedance 75Ω(Unbalanced)
Video Bandwidth 5Hz~10MHz
Weighted Signal/noise Ratio ≥65dB
Audio Parameters
Frequency Width 20Hz~20KHz
Audio Direction Forward, reverse, or bi-direction optional
Interface RCA, Terminal block optional
Input/output Impedance 600Ω(Balanced / Unbalanced)
Weighted Signal to noise Ratio >85dB
Data Parameters
Data Type RS232, RS485, RS422, Manchester, Bi-phase
Data Direction Forward, reverse, or bi-direction optional
Interface RJ45, Terminal Block optional
Communication Speed 0~300Kbps
Work Mode FDX/semi duplex
Error Code Rate < 10-9



Shipping and packing


Package:neutral /standard/customized packing



Shipment :DHL /TNT /EMS etc.(enable the fastest delivery to your place)



 Warranty: 3 years



* Factory

  • Advanced dust-free workshop
  • Experienced technicians
  • Mature production technology
  • Standard production process
  • High Quality with CE, FCC, and RoHS certificates
