1CH 720P 960P HD 1080p Video Converter / Fiber Optic Transmitter

China 1CH 720P 960P HD 1080p Video Converter / Fiber Optic Transmitter supplier
1CH 720P 960P HD 1080p Video Converter / Fiber Optic Transmitter supplier 1CH 720P 960P HD 1080p Video Converter / Fiber Optic Transmitter supplier 1CH 720P 960P HD 1080p Video Converter / Fiber Optic Transmitter supplier 1CH 720P 960P HD 1080p Video Converter / Fiber Optic Transmitter supplier

Large Image :  1CH 720P 960P HD 1080p Video Converter / Fiber Optic Transmitter

Product Details:

Place of Origin: CHINA( MAINLAND)
Brand Name: HO-link
Certification: CE FCC RoHS
Model Number: H-CVI/TVI/AHD-1V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1 PAIR
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Power Supply: DC 5V Resolution: 720/1080P
Distance: 0-20KM Brand: Ho-link
Storage Temperature: -45°~ 95°C Operating Temperaturer: -40°~ 85°C

HD video AHD CVI TVI Fiber optical converter, 1-CH 720P 960P video fiber optic transmitter,single-mode single fiber 20KM





Product Description:





    HD-CVI/AHD/TVI Fiber to Converter is designed for long-distance optical fiber transmission HD-CVI/AHD/TVI composite video and design, the use of non-compressed digital video technology, the use of point to point optical fiber coaxial transmission megapixels level HD video, the delay-free, high reliability video transmission. Single fiber can simultaneously transmit 1/2/4/8/16 road HD-CVI/AHD/TVI composite video.









Features:



1. Lossless, HD, real-time transmission

2. Automatic identify the input video formats

3. Support ultra-distance coaxial transmission

4. Support single fiber simultaneously transmit multiple video and composite signals

5. Supports a variety of standard switch 720p | 25/30/50/60 frame, 1080p | 25/30 frames

6. Wide temperature dust-free prospective industrial design, the device supports outdoor high and low temperature harsh environments

7. Plug and play, easy installation and operation

















Specification:


Technical Specification
Product Name 1Channel TVI//CVI/AHD video converter 720P
Model H-CVI/TVI/AHD-1V1D-T/RF
Description HD TVI/CVI/AHD coaxial to fiber transmission
Ports One FC fiber port+ 1BNC port
Transmission Distance 20KM(Single mode)
Fiber Interface FC, 1310nm/1550nm
Video Interface BNC
Physical Interface

FC fiber interface,

Single Mode/Multimode

Transmission distance 0~500M(multimode) / 0~20/40KM(single mode)
Input / output wavelength

The transmitter side: 1310nm transmit 1550nm receive;

The receiving side: 1550nm transmit 1310nm receive

Laser power -8~ -3dBm / -3~+2dBm
Receiver sensitivity -25dBm
Fiber Type

Multimode:50/125um,62.5/125um

Single mode: 9/125um

Video 720p|25/30 fps, 1080p|25/30 fps
Input Level >500mVp-p
Output Level 1Vp-p
Automatic cable 1080p: 75-5 Coax Support 300m 720p: 75-5 Coax Support 500m
Input and output impedance 75Ω
Physical Interface BNC
Video Input 1 channel
Video Output 1 channel
Video Bandwidth 45MHz
Sampling bandwidth 10bit
Baud Rate 1200-9600bps
BER <10-9
Operating mode Half-duplex
Working Environment Operating Temperature: -40°~ 85°C
Storage Temperature: -45°
~ 95°C
Operating Humidity: 5%
~95%, non-condensing
Warranty 3 year warranty

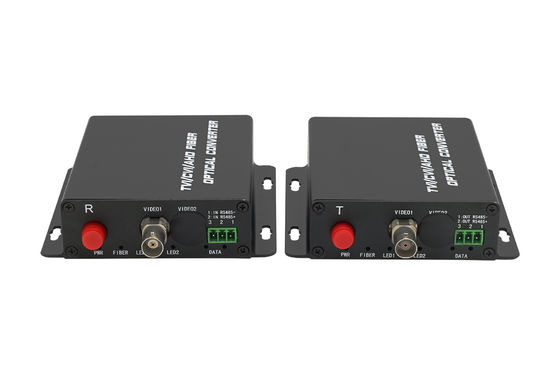

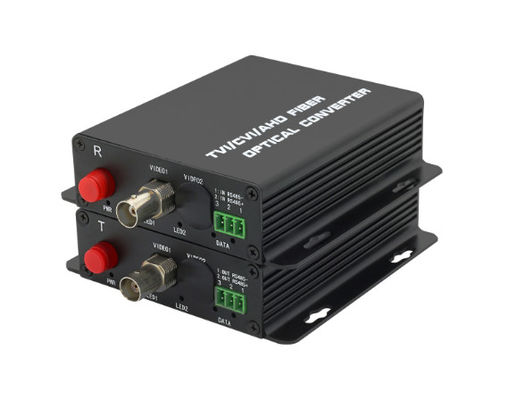

1CH 720P 960P HD 1080p Video Converter / Fiber Optic Transmitter
1CH 720P 960P HD 1080p Video Converter / Fiber Optic Transmitter

Shippng and Packing:


shipped: by TNT UPS Fedex DHL etc.
packing: international standard package




Packing List:

Transmitter and Receiver 1 pair
Power Adapter (EU,US,UK available)
English User Manual

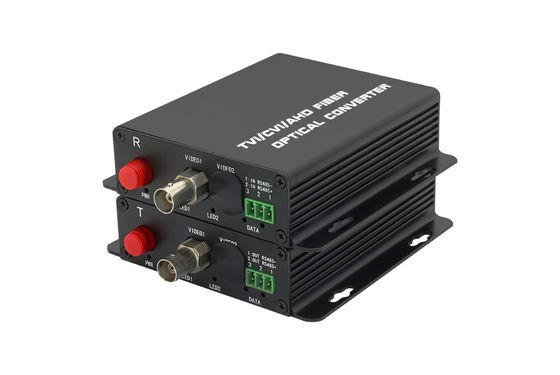

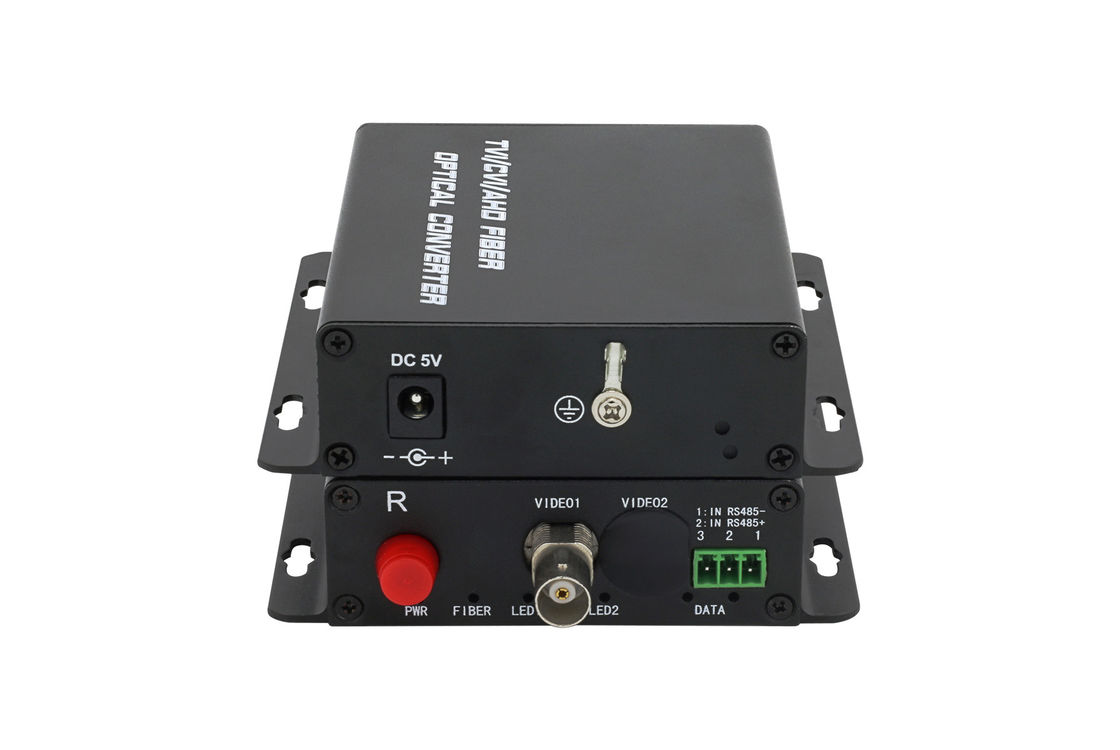

1CH 720P 960P HD 1080p Video Converter / Fiber Optic Transmitter





1CH 720P 960P HD 1080p Video Converter / Fiber Optic Transmitter
