HD 1080P TVI/TVI/AHD to Fiber Video Converter with 1 Channel Reverse RS485 Data/Audio

China HD 1080P TVI/TVI/AHD to Fiber Video Converter with 1 Channel Reverse RS485 Data/Audio supplier
HD 1080P TVI/TVI/AHD to Fiber Video Converter with 1 Channel Reverse RS485 Data/Audio supplier HD 1080P TVI/TVI/AHD to Fiber Video Converter with 1 Channel Reverse RS485 Data/Audio supplier

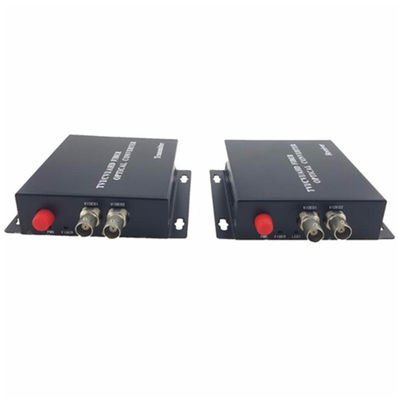

Large Image :  HD 1080P TVI/TVI/AHD to Fiber Video Converter with 1 Channel Reverse RS485 Data/Audio

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pair
Price: 29.5-49.5USD/Pair
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 1,0000pcs per month
Contact Now
Detailed Product Description
Power Voltage: AC85-260v/300mA Interface Type: RJ-45
Product Certification: CE, FCC, ROHS Relative Humidity: 0-95% (Non-condensing)
Transmit Mode: IEEE 802.3,IEEE 802.3u Application: CCTV/Protection/monitor Ect
Fuction Support: Video,Audio,date,hd-sdi,AVI,AHD,HDMI Warranty: 3 Year
Fiber Power: -9~ -5dBm OEM: Support
POC: Support Resolution: 1080p@60Hz



1080p HD CVI AHD TVI 2 Channel Video Fiber optical Media Converter - For 1080p 960p 720p HD AHD CVI TVI Cameras CCTV PO



Features
•Full digital non-compression broadcast level transmission;
•Point -to-point, cascade connected, distributed network connection supported, and with steady SNR;
•Level 3 lightning protection;
•Free of cross interference resulted from FM/PM/AM optical transmitter and receiver;
•All high-resolution video signals supported;
•Lossless video regeneration & relaying supported;
•super optic dynamic range and free of adjustment prior to use;
•Surface coating technique;
•Fiber optic WDM/CWDM/DWDM technique;
•1000 M optical fiber transmission, easy for update;
•Industry level ultra-broad temperature range (-40°C~+85°C), adaptable to various environments;
•On-power hot plug;
•Wall-mounted or 2U rack-mounted;
•User’s customization and OEM supported.





3.Technical Parameters

SDI High-Definition Digital Video Optical Transmitter and Receiver
Technical Parameters
Number of Video Channels 1 channel
Video Bandwidth MAX 2.97GHz
Supported Video Formats SD-SDI, HD-SDI, 3G-SDI
Video Input/ Output Impedances 75Ω (non-balance), BNC
Video SNR ≥67dB (weighted) 65
Differential Gain <1% (typical)
Differential Phase <0.6° (typical)"1"
Video Interface BNC
Optical Fiber Indexes Optical Port: SC (optional) Single-Mode:
0~100KM Wavelength: 1310/1550nm
Expanded Options
Data Channel RS485 (reverse) /422/RS232 and
NRA/RZI/Manchester supported
Physical Interfaces: Standard industrial terminal
Operating Mode: Simplex Transfer Rate 0 to
400KbpsError Rate < 10-9



4. Operating Environment
1.Operating Voltage:AC 220V/ DC +5V
2.Operating Temperature: -40°Cto+85°C
3.Storage Temperature: -55°C to +85°C
4.Humidity: 0 to 95%condensation free



Applications:

  • City traffic monitoring system
  • Public security, safe city monitoring system
  • Highway security protection, charging system
  • Building, campus monitoring net
  • Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • electric power, oilfield, television program transmission system
  • Gymnasium (live video, audio transmission)

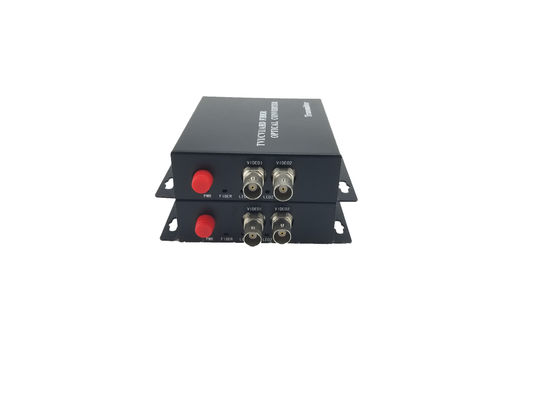

Photo Display



HD 1080P TVI/TVI/AHD to Fiber Video Converter with 1 Channel Reverse RS485 Data/Audio

Competitive Advantage:

Ho-Link AHD Video Over Fiber Converter can simultaneously transmit 1~16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.



Company Photo



HD 1080P TVI/TVI/AHD to Fiber Video Converter with 1 Channel Reverse RS485 Data/Audio





AHD TO Fiber Converter System connection diagram

HD 1080P TVI/TVI/AHD to Fiber Video Converter with 1 Channel Reverse RS485 Data/Audio



More will meet your request as below:

HD 1080P TVI/TVI/AHD to Fiber Video Converter with 1 Channel Reverse RS485 Data/Audio
