4-Ch 1080P HD CVI/TVI/AHD to Fiber Video Converter + 1 Ch Reverse RS485 DAHUA Compatible

China 4-Ch 1080P HD CVI/TVI/AHD to Fiber Video Converter + 1 Ch Reverse RS485 DAHUA Compatible supplier
4-Ch 1080P HD CVI/TVI/AHD to Fiber Video Converter + 1 Ch Reverse RS485 DAHUA Compatible supplier 4-Ch 1080P HD CVI/TVI/AHD to Fiber Video Converter + 1 Ch Reverse RS485 DAHUA Compatible supplier

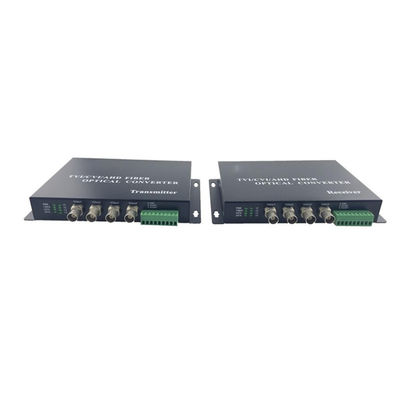

Large Image :  4-Ch 1080P HD CVI/TVI/AHD to Fiber Video Converter + 1 Ch Reverse RS485 DAHUA Compatible

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-CVI/TVI/AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50 Pairs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 Pairs Per Month
Contact Now
Detailed Product Description
Color: Black Place Of Origin: Guangdong, China (Mainland)
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω

HDCVI video audio converter 1Ch HDCVI Video+1Ch RS485 DAHUA Compatible HDCVI Optical Converter



Specifications:

Feature Description
Optical Fiber Type Multi-mode fiber or Single mode fiber
Fiber Connector FC or ST or SC
Distance 0km~80km (Optional)
Wavelength

Transmitter

T1310nm, R1550nm.

Receiver

T1550nm,R1310nm.

HDCVI(Transmitting) Input level >500mVp-p
self-adaption cable equilibrium

1080p:75-5

coaxial cable,300m

720p:75-5 coaxial cable,500m

Input/Output Impedance 75 Ω
Physical Interface 1 channels BNC connector
HDCVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface 1~64 channels BNC connector
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate ≦10
Operation Mode Half-Duplex
Indicators LOS,PWR,DATA,VIDEO
Mean time between failures(MTBF)



>100 000 hours

General EPS DC5V
Power Consumption ≦5W
Operation Temperature —40℃~75℃
Operation Humidity 10%~90%
Atmospheric Pressure 86kpa~106kpa
Mounting Method Wall mounted



Description:

HDCVI Optical Transceiver adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD or HDCVI composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers.  HDCVI Fiber optic transceiver can simultaneously transmit 1channels AHD or HDCVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports input video format as 25/30/50/60fps@720P & 25/30fps@1080P.



Applications:

  • City traffic monitoring system
  • Public security, safe city monitoring system
  • Highway security protection, charging system
  • Building, campus monitoring net
  • Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • electric power, oilfield, television program transmission system
  • Gymnasium (live video, audio transmission)







Competitive Advantage:

Holink HDCVI Video Over Fiber Converter adopt the advanced uncompressed

HD composite video and high velocity digital optical transmission technologies which convert the HDCVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.



Company Photo

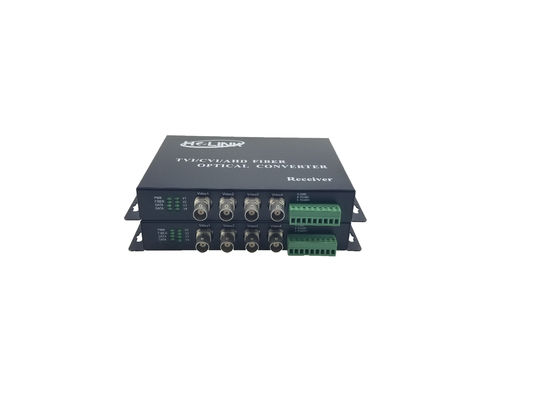

4-Ch 1080P HD CVI/TVI/AHD to Fiber Video Converter + 1 Ch Reverse RS485 DAHUA Compatible



HDCVI TO Fiber Converter System connection diagram



4-Ch 1080P HD CVI/TVI/AHD to Fiber Video Converter + 1 Ch Reverse RS485 DAHUA Compatible
