2 Channel 1080P HD CVI/TVI/AHD to Fiber Optical Converter For CCTV Dahua Network Surveillance

China 2 Channel 1080P HD CVI/TVI/AHD to Fiber Optical Converter For CCTV Dahua Network Surveillance supplier
2 Channel 1080P HD CVI/TVI/AHD to Fiber Optical Converter For CCTV Dahua Network Surveillance supplier 2 Channel 1080P HD CVI/TVI/AHD to Fiber Optical Converter For CCTV Dahua Network Surveillance supplier

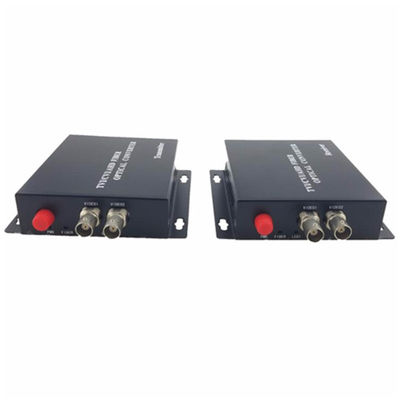

Large Image :  2 Channel 1080P HD CVI/TVI/AHD to Fiber Optical Converter For CCTV Dahua Network Surveillance

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE FCC ROHS
Model Number: HL-2V1D-T/RF-720/1080

Payment & Shipping Terms:

Minimum Order Quantity: 15 Pair
Price: Negotiation
Packaging Details: neutral packing
Delivery Time: 1-5 working days after received your payment
Supply Ability: 500 pairs per month
Contact Now
Detailed Product Description
Wavelength: 1310/1550nm Product Name: HDCVI Video Converter
Connector: Simplex FC Transmission Distance: 20km
Warranty: 3 Years Fiber Type: Single Mode Single Fiber
Input/output Impedance: BNC 75Ω (unbalance) Operating Temperature: 0℃ To +70℃
Power: DC5V 2A Color: Black
Distance: 20km

Product introduction


TVI/CVI/AHD Fiber Video Converter is designed by HO-LINK for long-distance fiber transmission coaxial HD composite video.It adopts the self-developed uncompressed digital photoelectric conversion technology and uses fiber point-to-point transmission of megapixel HD video to realize video transmission without delay and high reliability.

The HD video transmission specification based on coaxial cable converts HD video into optical signal, which is transmitted to the back end through fiber, and then transmitted to the back end through fiber.After the signal is transmitted to the receiver, optical-to-electrical conversion is performed, and then PFM demodulation is performed to recover the video signal. Due to the PFM modulation technology, the transmission distance can reach 20Km or more.By using CWDM technology, it is also possible to realize bidirectional transmission of image and data signals on one fiber to meet the actual needs of monitoring engineering. The TVI/CVI/AHD video converter should be working with the front TVI/CVI/AHD camera, TVI/CVI/AHD ball machine, and the back TVI/CVI/AHD video recorder.



TVI/CVI/AHD Fiber Video Converter are widely used in urban traffic monitoring systems, public security organs, safe city monitoring systems, highway security, toll systems, buildings, campus monitoring networks, industrial monitoring (airports, chemicals, steel, oil, railways, water conservancy , mines, etc.), military surveillance (warehouse, border defense, guard, defense, etc.) power oil field, television station program transmission system stadium (live video, audio transmission)

Product Features:



Plug and play, support hot swap
Rich LED indicator, diagnostic indication
Aluminum alloy shell wall mount, rack mount optional
Support 720P and 1080P HD video formats
All interfaces adopt three-level anti-static and lightning protection.
Flexible modular design, support for customization and OEM
Small size, low power consumption, strong anti-interference ability, high fidelity, etc.
Surface mount devices ensure small size, high stability and high reliability
Industrial-grade ultra-wide temperature range (-40°C to +85°C) for more environments





Technical Parameters:


Parameters
Frequency
56Mhz(720P) 100Mhz(1080P)
Signal interface
-75 BNC connector

Impedance
75Ω(Unbalanced)

Surge protection
Video interface conforms to 10/700us:(1-1.5kv)
Transmitter input level
>500mVp-p
Receiver output level
1-1.2Vp-p
Support resolution
720P 25/30/50/60fps, 1080P 25/30fps
Fiber parameters
FC,ST ,SC (Optional),1310nm/1550nm
RS485 data parameters
Phoenix terminal, full duplex / half duplex , data rate0-400Kbps, bit error rate <10 -9
Power
Adapter
5V power adapter
Power consumption
6W
Temperature
Operating temperature
-20 ° C to +70 ° C
Storage temperature
-40 ° C to +85 ° C
Humidity
Storage humidity
0 to 95%RH
Physical
Size
175mm*114mm*40mm
Weight
0.4kg/pair(With power supply and outer packaging 0.8kg / pair)
Detailed Images

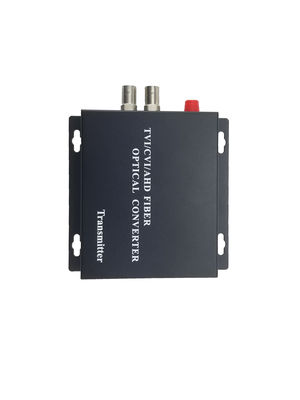

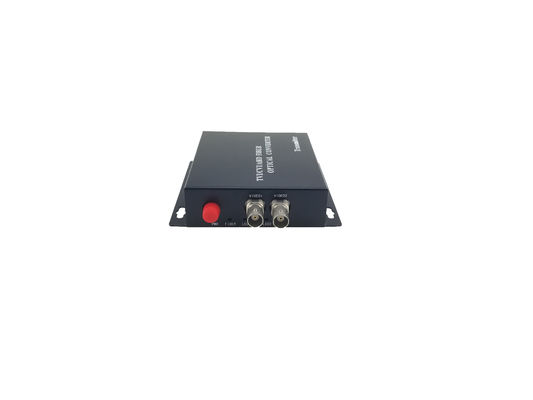

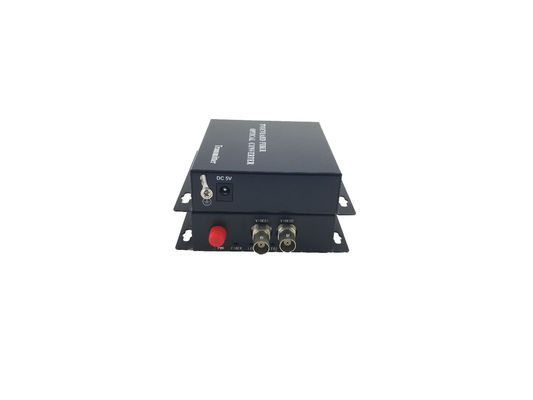

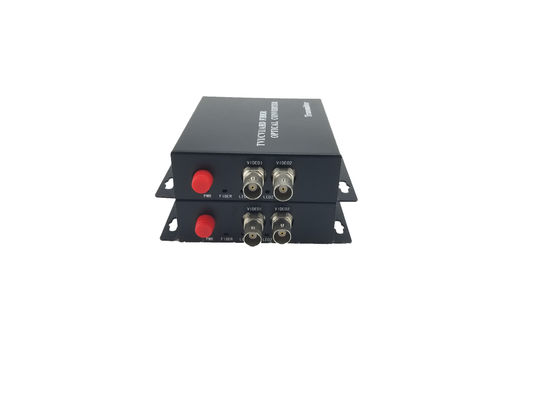

2 Channel 1080P HD CVI/TVI/AHD to Fiber Optical Converter For CCTV Dahua Network Surveillance
2 Channel 1080P HD CVI/TVI/AHD to Fiber Optical Converter For CCTV Dahua Network Surveillance
2 Channel 1080P HD CVI/TVI/AHD to Fiber Optical Converter For CCTV Dahua Network Surveillance
2 Channel 1080P HD CVI/TVI/AHD to Fiber Optical Converter For CCTV Dahua Network Surveillance
Applications


City traffic monitoring system
Public security, safe city monitoring system
Highway security protection, charging system
Building, campus monitoring net
Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
Electric power, oilfield, television program transmission system
Gymnasium (live video, audio transmission)



Connection diagram:


2 Channel 1080P HD CVI/TVI/AHD to Fiber Optical Converter For CCTV Dahua Network Surveillance
