Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter

China Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter supplier
Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter supplier Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter supplier

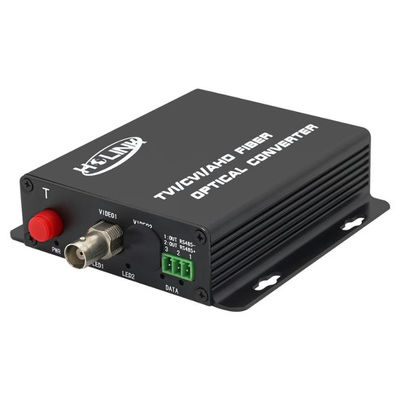

Large Image :  Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE FCC ROHS
Model Number: HL-1V1D-T/RF-720

Payment & Shipping Terms:

Minimum Order Quantity: 15 pair
Packaging Details: neutral packing
Supply Ability: 1000 pairs per month
Contact Now
Detailed Product Description
Wavelength: 1310/1550nm Product Name: HDCVI Video Converter
Connector: Simplex FC Transmission Distance: 20km
Warranty: 3 Years Fiber Type: Single Mode Single Fiber
Input/output Impedance: BNC 75Ω (unbalance) Operating Temperature: 0℃ To +70℃
Power: DC5V 2A Color: Black

Product Description



Ho-Link TVI/CVI/AHD/CVBS 4 in 1 Video to Fiber Converter can simultaneously transmit 1 channel TVI/CVI/AHD/CVBS video over one single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. Ho-link TVI/CVI/AHD/CVBS Video to fiber converters adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the composite signals to optical signals to achieve long distance for the HD CCTV installation.





Detailed Images
Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter




Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter
Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter
Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter





Diagram





Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter
Features&Application



Features:

1. Non-compression coding technology
2. Automatically identify formats of input videos
3. Support transmission of tvi/cvi/ahd/cvbs signal and controlling data simultaneously though fiber optic cable
4. DC 5V power supply
5. Support 720p/25,720p/30,720p/50,720p/60, videos etc
6. Through LED indicators to inform its functional mode
7. Industrial wide range of operational temperature
8. Plug and play, simple installation


Application:

1. City traffic monitoring system
2. Public security, safe city monitoring system
3. Highway security protection, charging system
4. Building, campus monitoring net
5. Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
6. Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
7. electric power, oilfield, television program transmission system
8. Gymnasium (live video, audio transmission)






Technical Parameters
SDI Video
Number of channels
1 channels
Input/out put Connector
BNC 75Ω
Input/output voltage
1.0 Volt p-p
Video Bits Rate
Max 3.2Gb/s
Video SDI Standards
1.485Gbps/M(HD-SDI)
Data
Data encode
RS485/RS422/RS232/Manchester
Physical interface
Industrial standard screw terminal
Frequency/Rate support
0~400K bps
Fiber Optic
Number of Optical port
1
Connector
FC as default, LC/SC.ST as request
Single-mode
20Km
Single-mode
1310/1550nm (Option)
Electrical & Mechanical
Power adaptor
AC 100-240V to DC 5V 2A
Power consumption
<6W
Environmental
Operating Temperature
- 20℃~+70℃
Storage Temperature
- 40℃~+85℃
Relative Humidity
0%~95% (non-condensing)
MTBF
>100,000 hours
Certifications
Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter
Packing
Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter
Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter
Ho-Link 1 Channel 1080P TVI/CVI/AHD to fiber optical transceiver with 1 Channel Reverse RS485 data fiber video converter
FAQ

Q1: How can I get your catalogue and price list?

A:Please let us know your email or contact us from website directly for our catalogue and price list.



Q2: Can I negotiate the prices?

A:Yes,we may consider discounts for multiple container load of mixed goods.



Q3: How much will the shipping charges be?

A:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.



Q4: Can I visit your factory?

A:Sure,our factory is in Shenzhen,China .I'm waiting for you here



Q5: What if there is quality problem when we get the goods?

A:If there any quality problem when you un-package the goods,you can take pictures for our reference,our QC department will check the problem and give best solutions to you.



Remark:

To meet the needs of our customers and help them to realize their projects, we also can manufacture the products according to customers requirements.



Any questions please feel free to contact us,we will provide quality services for you.
