4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter

China 4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter supplier
4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter supplier 4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter supplier

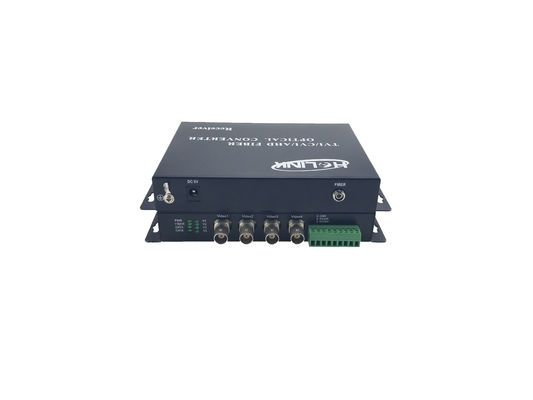

Large Image :  4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 15 Pairs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-5 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000Pairs per month
Contact Now
Detailed Product Description
Video Connector: BNC Fiber Type: Multi-mode Fiber Or Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Commodity Name: HDCVI Optical Converter Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Physical Interface: 1channels BNC Connector

4ch video+1 return data Fiber Optical Video Converter/ Digital video fiber 16ch video+1 return data HDCVI over Fiber Transceiver HD-CVI video converter with 16 channel fiber optic





Product Description:

4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter

AHD Video Over Fiber Converter can simultaneously transmit 1~64 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.











Features:

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~64 channels AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation



Specifications:



Feature Description
Optical Fiber Type Multi-mode fiber or Single mode fiber
Fiber Connector FC or ST or SC
Distance 0km~80km (Optional)
Wavelength Transmitter
T1310nm, R1550nm.
Receiver
T1550nm,R1310nm.
HDCVI(Transmitting) Input level >500mVp-p
self-adaption cable equilibrium 1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m
Input/Output Impedance 75 Ω
Physical Interface 16 channels BNC connector
HDCVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface 1~64 channels BNC connector
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate ≦10
Operation Mode Half-Duplex
Indicators LOS,PWR,DATA,VIDEO
Mean time between failures(MTBF)
>100 000 hours
General EPS DC5V
Power Consumption ≦5W
Operation Temperature —40℃~75℃
Operation Humidity 10%~90%
Atmospheric Pressure 86kpa~106kpa
Mounting Method Wall mounted






Specification:

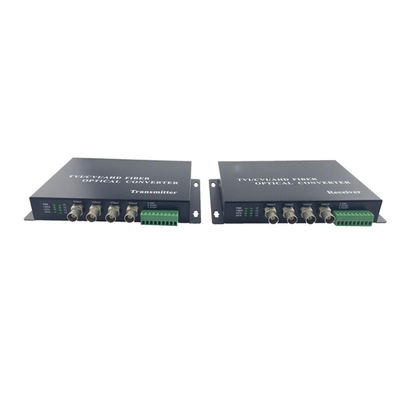

4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter



Application Diagram:





4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter



  • Ø City traffic monitoring system
  • Ø Public security, safe city monitoring system
  • Ø Highway security protection, charging system
  • Ø Building, campus monitoring net
  • Ø Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Ø Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • Ø electric power, oilfield, television program transmission system
  • Ø Gymnasium (live video, audio transmission)



Order Information:


Part No. Description
H-TVI/CVI/AHD-1V-T/RF 1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF 1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF 2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF 2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF 4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF 4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF 8 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-8V1D-T/RF 8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-16V-T/RF 16 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-16V1D-T/RF 16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-32V-T/RF 32 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-32V1D-T/RF 32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data







16ch AHD Over Fiber Optic,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter





We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
