4-Ch 1080P AHD CVI TVI Fiber optical transceiver, HD Video Optical Extender with reverse RS485 data For CCTV PTZ Camera

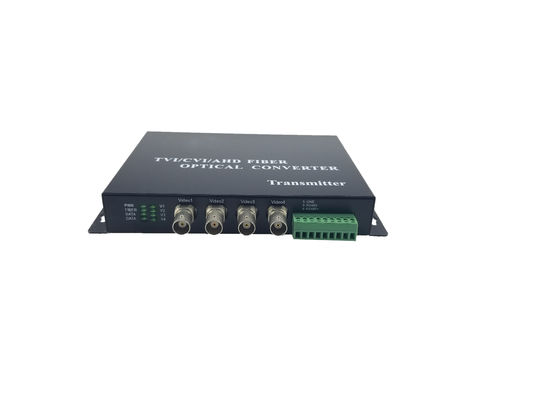

Large Image : 4-Ch 1080P AHD CVI TVI Fiber optical transceiver, HD Video Optical Extender with reverse RS485 data For CCTV PTZ Camera

Product Details:

Place of Origin:	China
Brand Name:	Ho-Link
Certification:	CE/ROHS/FCC/SGS
Model Number:	H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity:	15 Pairs
Price:	Negotiable
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	1-5 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	3,000Pairs Per Month

Contact Now

Detailed Product Description

Model Number:	H-CVI-4V1D-T/RF	Application:	Analog BNC HD Cameras Over Fiber
Resolution:	1080P,960P,720P	Certification:	CE/FCC/RoHs
Color:	Black(optional)	Data Control Port:	Half-Duplex RS485
Mean Time Between Failures(MTBF):	>100 000 Hours	Power Consumption :	≤ 5W
Video:	4BNC	Power:	12V
Video Systems:	PAL, NTSC, SECAM

4Chs CVI Video to Fiber Optic Converter

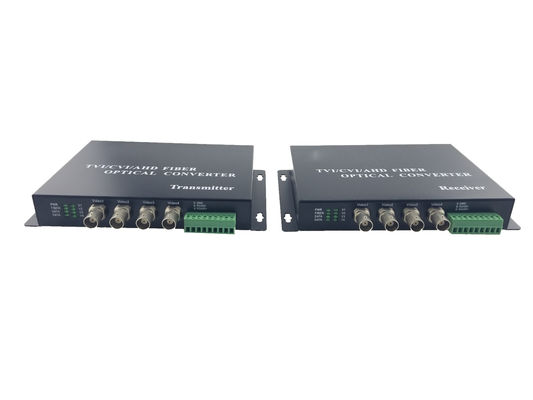

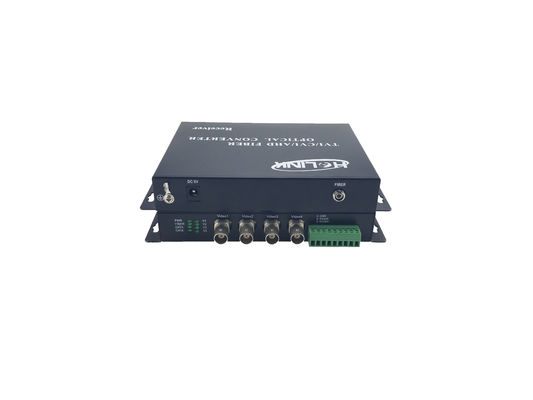

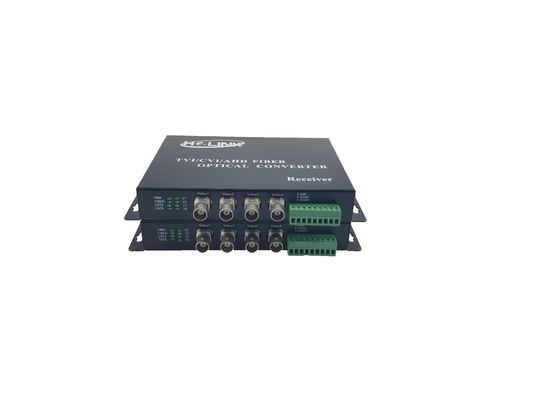

Picture Show:

4-Ch 1080P AHD CVI TVI Fiber optical transceiver, HD Video Optical Extender with reverse RS485 data For CCTV PTZ Camera

Introduction:

HDCVI TO Fiber video Converter can simultaneously transmit 8 channels HDCVI and 1CH reverse RS485 over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission.In addition,ethernet/telephone/audio/contact closure can be added when you need.It support Dahua and other brand CCTV CVI cameras.

Key Features:

Support Point-to-Point or Daisy-Chain connection
Uncompressed Digital Composite Video over one fiber
Compatible with all PAL, NTSC,SECAM Video Systems
Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
Single-Mode Fiber Support for Distances up to 100 km
LED Status Provide Rapid Indication of Operating Parameters
No EMI or RFI and no ground loops
Support Coarse Wavelength Division Multiplexing (CWDM)
Stand alone
Produce according to customer's specifications,providing OEM

Application picture:

4-Ch 1080P AHD CVI TVI Fiber optical transceiver, HD Video Optical Extender with reverse RS485 data For CCTV PTZ Camera

Specifications:

Optical

Wavelength	1310nm&1550nm
Output Power	-8~3dBm
Optic fiber	50/125u multi mode,62.5/125u multi mode,9/125u single mode
Rx sensitivity	-25dBm
Optical connector	FC/ST/SC (optional)
Distance	0~550M (MM) / 0~20KM (SM)

Video

Number of Channels	1,2,4,16
Input/output impedance	BNC 75Ω (unbalance)
Standard video input/output voltage	1.0Vp-p
Video Bandwidth	45MHz
Sampling Bandwidth	10bit
Sampling Frequency	108MHz
Rise and Fall time	<0.8ns
Optical Signal Intrinsic Jitter	<0.2 UI
Differential Gain	< ±1.5%
Differential Phase	< ±1°
Connector	BNC

Other

Power	DC5V 2A
Power Consumption	≤6W
Temperature	-40ºC ~75ºC
Humidity	10%~90% RH
Installation	Wall mount
MTBF	≥ 100000Hours
