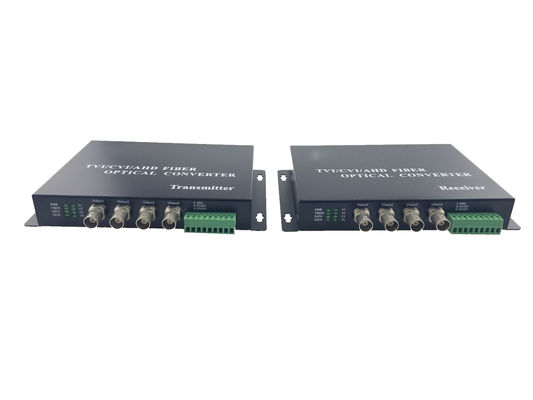

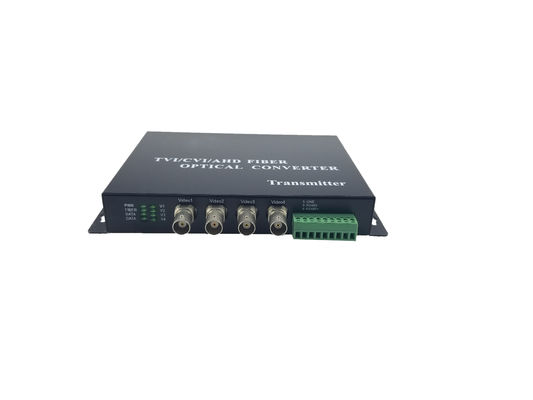

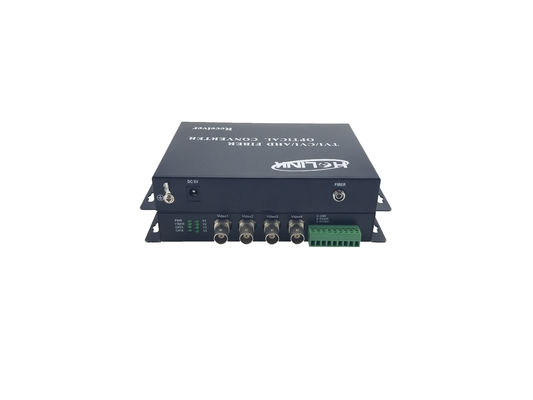

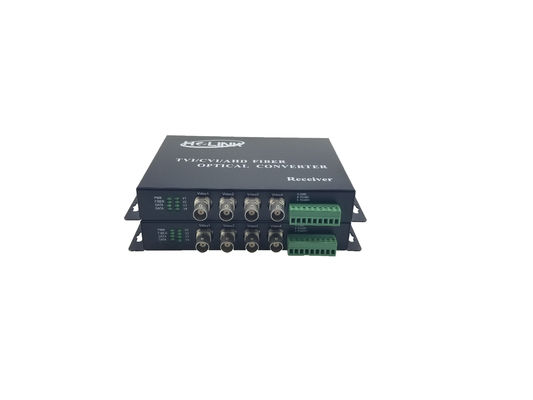

4 Channel 720P/960P/1080P Fiber Optic To Video Transceiver Optical Multiplexer For Cctv HD AHD CVI TVI Camera

China 4 Channel 720P/960P/1080P Fiber Optic To Video Transceiver Optical Multiplexer For Cctv HD AHD CVI TVI Camera supplier
4 Channel 720P/960P/1080P Fiber Optic To Video Transceiver Optical Multiplexer For Cctv HD AHD CVI TVI Camera supplier 4 Channel 720P/960P/1080P Fiber Optic To Video Transceiver Optical Multiplexer For Cctv HD AHD CVI TVI Camera supplier 4 Channel 720P/960P/1080P Fiber Optic To Video Transceiver Optical Multiplexer For Cctv HD AHD CVI TVI Camera supplier 4 Channel 720P/960P/1080P Fiber Optic To Video Transceiver Optical Multiplexer For Cctv HD AHD CVI TVI Camera supplier

Large Image :  4 Channel 720P/960P/1080P Fiber Optic To Video Transceiver Optical Multiplexer For Cctv HD AHD CVI TVI Camera

Product Details:

Place of Origin: China
Brand Name: Ho-link
Certification: CE RoHS FCC
Model Number: H-TVI/CVI/AHD-4V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 15 Pairs
Price: Negotiation
Packaging Details: International Standard Package
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000Pairs One Month
Contact Now
Detailed Product Description
Transmitter Wave Length: 1310/1550nm Video Connector: BNC
Indicators: OPT, PWR, DATA, VIDEO F/O Connector: FC/ST/SC
Resolution: 1080/720p Encoded Type: RS485 / RS422 / RS232 / Manchester
Product Type: HDCVI Fiber Optic Converter



4 Channel fiber optic to coaxial converter,optical multiplexer for cctv HD AHD CVI TVI cameras 1080P,20KM FC SC connetor

4 Channel 720P/960P/1080P Fiber Optic To Video Transceiver Optical Multiplexer For Cctv HD AHD CVI TVI Camera



Description





      The digital video optical tranmitters and receivers (video converters) transmit high fidelity signals of video, audio, data ,telephone, etc. with advanced technology which enables efficient transmission with minimum disturbance.



     AHD to Fiber Converter can simultaneously transmit 1-8 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. Compatible with AHD-H, AHD-M and AHD-L. Lossless non-compression real time transmission

















Feature



  • Non-compression coding technology
  • Automatically identify formats of input videos.
  • Support transmission of AHD Video signal and controlling PTZ data RS485 simultaneously though fiber optical cable
  • DC 5V2Apower supply
  • Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.
  • Through LED indicators to inform its functional mode
  • Industrial wide range of operational temperature
  • Plug and play, simple installation.
  • Bi-di transmission on 1 fiber with WDM
  • High quantification level of 8BIT and 10BIT
  • Available in standalone, module, and rack
















Ordering information







Video channels 1 channel
Video bandwidth 8 MHz
Automatic compatible video system PAL, NTSC, SECAM
Video input / output impedance 75 Ω (unbalance)
Video signal-to-noise ratio ≥67dB
Differential gain (10%-90%APL) DG <1% (typical value)
Differential phase (10%-90%APL) DP <0.7° (typical value)
Video connector BNC
Fiber-optic Specification

F/O connector: FC/ST/SC

TX: Power: -5 ~ -0dBm Sensitivity: ≤-34dBm

RX: Power:-5 ~ -0dBm Sensitivity: ≤-34dBm

Transmission Distance: 60KM (single mode)

Operating Wavelength: TX1310/RX1550nm (Transmitter)

TX1550/RX1310nm (Receiver)

Specification of custom-made options
Data

Connector: Terminal Blocks

Encoded type: RS485 / RS422 / RS232 / Manchester

Data rate: 0 - 400Kbps

BER: ≤10-9



















Applications



4 Channel 720P/960P/1080P Fiber Optic To Video Transceiver Optical Multiplexer For Cctv HD AHD CVI TVI Camera



4 Channel 720P/960P/1080P Fiber Optic To Video Transceiver Optical Multiplexer For Cctv HD AHD CVI TVI Camera







Order Information:


Part No. Description
H-TVI/CVI/AHD-1V-T/RF 1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF 1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF 2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF 2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF 4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF 4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF 8 Ch Forward TVI /CVI / AHD Video
