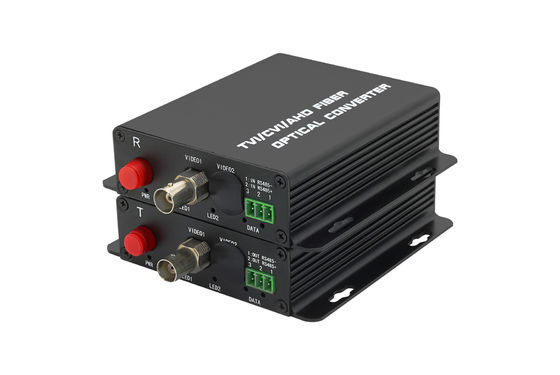

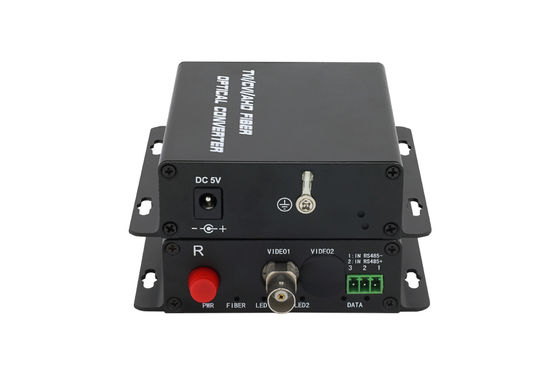

1-Ch HDCVI/TVI/AHD to Fiber Video Transceiver HD 1080P Video Converter support Dahua 720P/1080P CCTV Cameras

Large Image : 1-Ch HDCVI/TVI/AHD to Fiber Video Transceiver HD 1080P Video Converter support Dahua 720P/1080P CCTV Cameras

Product Details:

Place of Origin:	China
Brand Name:	Ho-Link
Certification:	CE/ROHS/FCC/SGS
Model Number:	H-CVI/TVI/AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity:	50 Pairs
Price:	Negotiable
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	1-5 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	3,000pcs per month

Contact Now

Detailed Product Description

Function:	Video To Fiber Optical Modem	Optical Connector:	FC/SC/ST
Power:	DC5V 2A	Operation Mode:	Full Duplex / Half Duplex
Color:	Black	Warranty:	3 Years
Storage Humidity:	10%~90% RH	Video Connector:	BNC
Case Material:	Aluminum

1Ch CVI Digital Video to Fiber Optic Converter

Introduction:

1-Ch HDCVI/TVI/AHD to Fiber Video Transceiver HD 1080P Video Converter support Dahua 720P/1080P CCTV Cameras

This HDCVI TO Fiber video Converter can simultaneously transmit 8 channels HDCVI and 1CH reverse RS485 over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission.In addition,ethernet/telephone/audio/contact closure can be added when you need.It support Dahua and other brand CCTV CVI cameras.

Specifications:

Opitcal:

Wavelength	1310nm&1550nm
Output Power	-8~3dBm
Optic fiber	50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity	-25dBm
Optical connector	FC,ST,SC (optional)
Distance	0~550M (MM) / 0~20KM (SM)

Video:

Number of Channels	4
Input/output impedance	BNC 75Ω (unbalance)
Standard video input/output voltage	1.0Vp-p
Video Bandwidth	45MHz
Sampling Bandwidth	10bit
Sampling Frequency	108MHz
Rise and Fall time	<0.8ns
Optical Signal Intrinsic Jitter	<0.2 UI
Differential Gain	< ±1.5%
Differential Phase	< ±1°
Connector	BNC

Other

Power	DC5V 2A
Power Consumption	≤6W
Temperature	-40ºC ~75ºC
Humidity	10%~90% RH
Unit Weight	1.5KG(pair)
Dimension	175mm×154mm×30mm
Installation	Wall mount
MTBF	≥ 100000Hours

HDTVI TO Fiber Converter System connection diagram:

1-Ch HDCVI/TVI/AHD to Fiber Video Transceiver HD 1080P Video Converter support Dahua 720P/1080P CCTV Cameras

About US:

Holink Technology Co., LTD is an ISO 14000:2004 & ISO 9001:2008 certified manufacturer specialized in R&D, production, sales and services of Optical Transmission products. Relying on the rapid growth of Data Center and HPC, Holink has become a Top-100 maker and one of the earliest suppliers for optical products, including optical modules and HDMI/SDI video over fiber converter.
