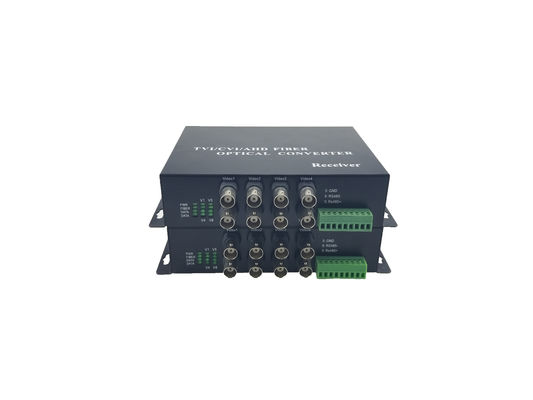

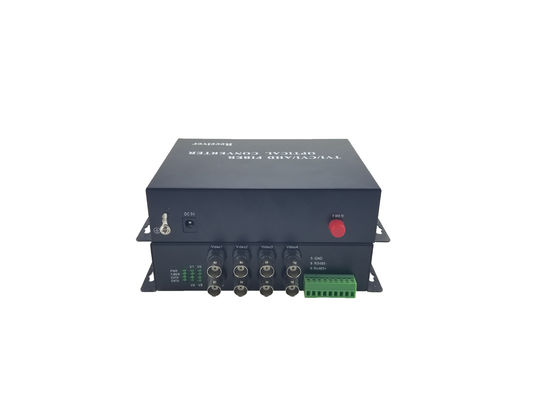

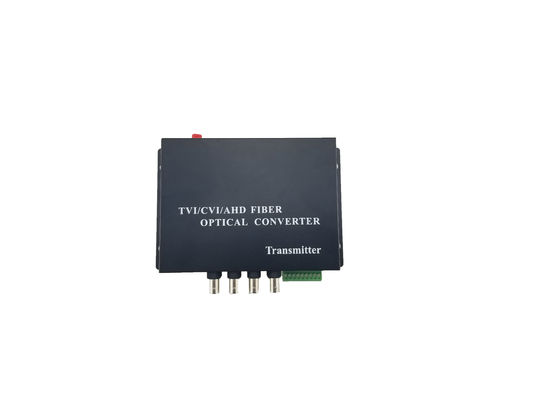

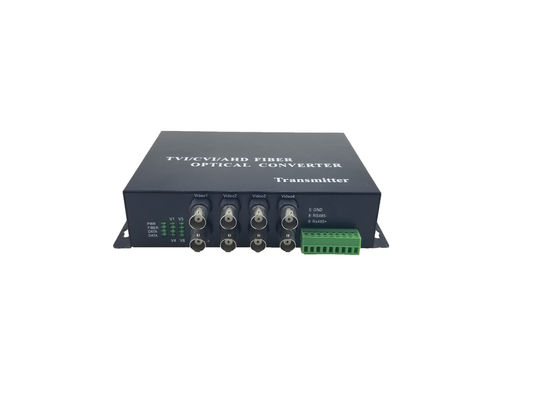

High Resolution 5MP 8 Channel 720P HD 1080p to Fiber Video Converter Optical Transceiver with 1 Channel Rs485 Data

China High Resolution 5MP 8 Channel 720P HD 1080p to Fiber Video Converter Optical Transceiver with 1 Channel Rs485 Data supplier
High Resolution 5MP 8 Channel 720P HD 1080p to Fiber Video Converter Optical Transceiver with 1 Channel Rs485 Data supplier High Resolution 5MP 8 Channel 720P HD 1080p to Fiber Video Converter Optical Transceiver with 1 Channel Rs485 Data supplier High Resolution 5MP 8 Channel 720P HD 1080p to Fiber Video Converter Optical Transceiver with 1 Channel Rs485 Data supplier High Resolution 5MP 8 Channel 720P HD 1080p to Fiber Video Converter Optical Transceiver with 1 Channel Rs485 Data supplier

Large Image :  High Resolution 5MP 8 Channel 720P HD 1080p to Fiber Video Converter Optical Transceiver with 1 Channel Rs485 Data

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE RoHS FCC
Model Number: H-TVI/CVI/AHD-8V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pairs
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Operating Temperature: -40℃ - +85℃ Fiber Type SM: 20-80KM
Optical: FC (ST, SC Optional) Input Rating Voltage: AC220V/50Hz
Resolution: 1080/720p Fiber Type MM: 2KM
Input/Output Impedance: 75 Ω Transmitter: T1310nm, R1550nm
Receiver: T1550nm,R1310nm Fiber Type: Single Fiber Mode



8 Channel Video Data Digital Optical Transceiver with video, Audio ,data 485 232 422,720P/1080P,20km(SM) 2km(MM)





Description







      It’s digital optical transmission system optimized for single-channel, which could compatible with the all-pattern video signal hold out 1-ch unilateralism signal at same orientation on an optical fiber. For obtained high quality transmission, the video signal adopted 8bit/10MHz digital sample technique full-digital transmitting channel. Power, optical video are easily inspected the indicators on the panels, so that the user could check the status visibly. The system series are high performance reliability transmission system for long distance of video

.









Feature



  • 8bit/16.5MHz digital sample for video signal

    High speed synchronous digital transmission technology

    Module construction design

    Super optical dynamic range

    Power, optical, video and data status indication

    Non electromagnetic interaction

    Safety transmission for arduous electromagnetic environment

    BNC video connector

    Terminal block data connector

    FC/SC optical connector

    Video DC Restoration
















Ordering information

Digital Video Optical Converter
Technical Parameters





Fiber Interface

Physical interface FC/SC ST
Optical wavelength single mode 1310,1550nm
Transmitting optical power ≥-8dBm
Receiving sensitivity ≤-30dBm
Transmitting distance 10km/25km/40km/60km/80km optional

Video interface



Video channel number 8channels
Signal format PAL/NTSC/SECAM
Video input / output resistance BNC 75Ω unbalanced interface
Video input / output voltage 1Vpp(typical),Max 1.5Vpp
Video bandwidth 8MHz
Video sampling rate 14MHz
Quantization range 8bit
Differential increase 30dBm
Differential phase < 0.6
Video SNR 70dB (typical)
Color Brightness Delay Inequality 10ns(typical)
Color Brightness Gain Inequality ±10%(typical)
Expand options





Data



interface

Physical interface Industry standard terminal blocks
Working mode Positive , negative, bi-directional data
Interface type RS-232,RS-485/422,Manchester,Biphase
Communicating rate 0~300Kbps
Data error rate < 10-12



Video



interface

Input resistance 30KΩ
Output resistance 10KΩ
Nominal input / output level 2Vpp
Audio bandwidth 10Hz ~ 20kHz
Sampling rate 14MHz
Quantization range 16bit
weighted signal-to-noise ratio ≥95dB
Total harmonic distortion 0.1%
Physical interface Industry standard terminal blocks
on-off interface Physical interface Industry standard terminal blocks
Input signal Any active or passive alarm,on-off input,supporting TTL,RS-232/422/485 or passive switch,button
Output signal Any active or passive alarm,on-off input,TTL,RS-232/422/485 or relay electrical shock input















Applications



u Closed circuit television supervisory system



u Intelligent transportation supervisory system



High Resolution 5MP 8 Channel 720P HD 1080p to Fiber Video Converter Optical Transceiver with 1 Channel Rs485 Data

















Shipping and packing:



HD video AHD CVI Fiber optic converter, 16-CH 1080P video fiber optic transmitter with reverse RS485 data
