Support 5 Megapixel CCTV Analog Camera 720P/960P/1080P AHD HDTVI HDCVI 1 Channel Video Fiber Transmitter

China Support 5 Megapixel CCTV Analog Camera 720P/960P/1080P AHD HDTVI HDCVI 1 Channel Video Fiber Transmitter supplier
Support 5 Megapixel CCTV Analog Camera 720P/960P/1080P AHD HDTVI HDCVI 1 Channel Video Fiber Transmitter supplier Support 5 Megapixel CCTV Analog Camera 720P/960P/1080P AHD HDTVI HDCVI 1 Channel Video Fiber Transmitter supplier Support 5 Megapixel CCTV Analog Camera 720P/960P/1080P AHD HDTVI HDCVI 1 Channel Video Fiber Transmitter supplier Support 5 Megapixel CCTV Analog Camera 720P/960P/1080P AHD HDTVI HDCVI 1 Channel Video Fiber Transmitter supplier

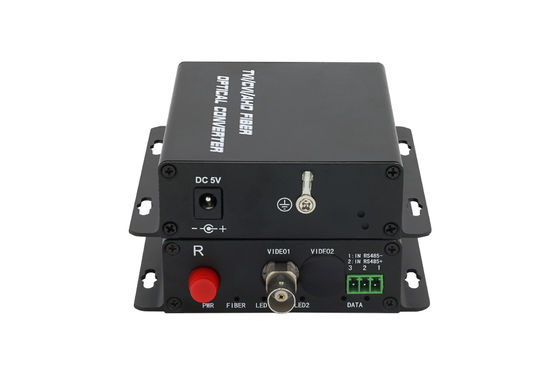

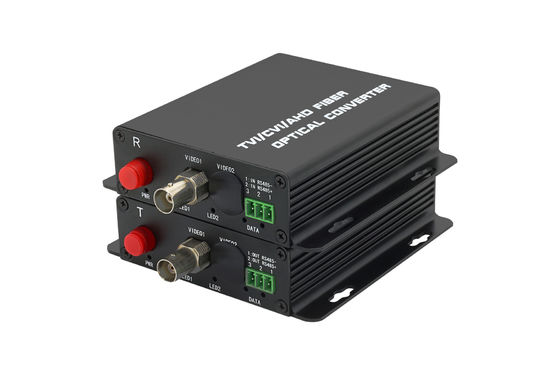

Large Image :  Support 5 Megapixel CCTV Analog Camera 720P/960P/1080P AHD HDTVI HDCVI 1 Channel Video Fiber Transmitter

Product Details:

Place of Origin: China(mainland)
Brand Name: Ho-Link
Certification: CE FCC RoHS
Model Number: HL-TVI/CVI/AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 15 Pairs
Price: 31.5USD/Pair
Packaging Details: International Standard Package
Delivery Time: 1-5 working daysafter payment confirm
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000 Pairs one month
Contact Now
Detailed Product Description
Number Of Channels: 1-32 Temperature: -40ºC ~75ºC
Differential Gain: < ±1.5% Wavelength: 1310nm&1550nm
Output Power: -8~3dBm Power: DC5V 2A
Video Interface: BNC Working Voltage: AC90-260V
Rx Sensitivity: -26dBm



Video digital optical converter, rs232 data video converter, video to fiber converter,Video/Audio/Data/Ethernet









Overview:



     AHD to Fiber Converter can simultaneously transmit 1-8 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. Compatible with AHD-H, AHD-M and AHD-L. Lossless non-compression real time transmission





     It is to transmit 1 line positive digital video broadcasting, to one fiber efficiently. With complete digital and technology, holink support any high resolution dynamic or stationary picture high-fidelity transmit. It also can be anti-disturbance against several signals, environment, and work stably .It is widely used in security monitoring and control, high way, electronic police, automation, intelligent residential districts and so on.









Feature:





  • 1.8 –digit coding and non-compression video transmission
    2.Supporting any high –resolution video signal

    3.Video bandwidth: 8MHz

    4.Automatically compatible with PAL, NTSC and SECAM video format

    5.With APC circuit, constant optical output power, large dynamic range

    6.Gigabit fiber optic transmission, large capacity, easy to upgrade and expansion

    7.Supporting video intact regenerative relay, the video transmission can be reach 20km

  • 8.LED indication of power and other parameter status, monitoring real-time operation













Opitcal Fiber:
Wavelength 1310nm&1550nm
Output Power -8~3dBm
Rx sensitivity -25dBm
Optical connector FC (Default), ST, SC (optional)
Distance 0~550M (MM) / 0~20KM (SM)
AHD Video:
Number of Channels 1~32
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC
Other:
Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH















Solution
  • Monitoring center interconnect
  • Intelligent Transportation System (ITS)
  • Highway Video Monitoring System
  • Toll station video monitoring system
  • Exchange of television programs transmitted
  • High-fidelity video conference system
  • Security system
