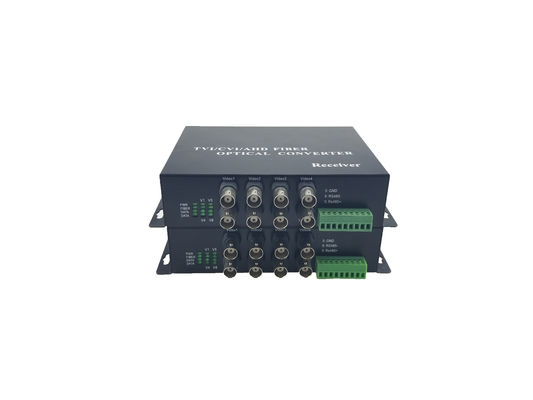

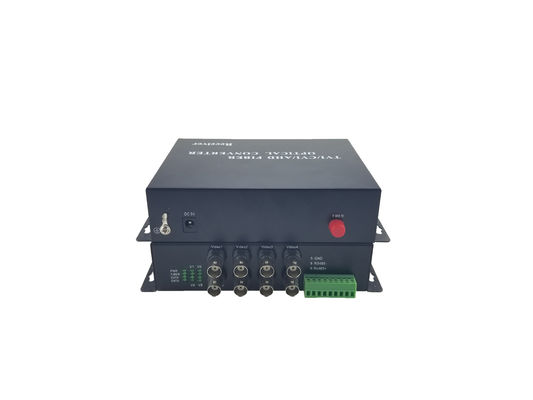

8 Channel BNC to Fiber Media Converter Fiber Optic Video Converter 1080P CVI TVI AHD to Fiber Video Transmitter

China 8 Channel BNC to Fiber Media Converter Fiber Optic Video Converter 1080P CVI TVI AHD to Fiber Video Transmitter supplier
8 Channel BNC to Fiber Media Converter Fiber Optic Video Converter 1080P CVI TVI AHD to Fiber Video Transmitter supplier 8 Channel BNC to Fiber Media Converter Fiber Optic Video Converter 1080P CVI TVI AHD to Fiber Video Transmitter supplier 8 Channel BNC to Fiber Media Converter Fiber Optic Video Converter 1080P CVI TVI AHD to Fiber Video Transmitter supplier 8 Channel BNC to Fiber Media Converter Fiber Optic Video Converter 1080P CVI TVI AHD to Fiber Video Transmitter supplier

Large Image :  8 Channel BNC to Fiber Media Converter Fiber Optic Video Converter 1080P CVI TVI AHD to Fiber Video Transmitter

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: HL-8V1D-20T/R-1080

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pair
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 Pairs per month
Contact Now
Detailed Product Description
Number Of Channels: 1 Fiber Type: Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Physical Interface: 1 Channels BNC Connector
Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm EPS: DC5V

1 CH HDTVI Video to Fiber Transmitter Receiver CCTV video converters fiber video converter for CCTV camera




Product Description



Can work those camera:

Brand: Hikvision, Dahua, AHD, Sony, Samsung etc,.



     HDTVI  to Fiber Converter can simultaneously transmit 1 channels HD-CVI/TVI/AHD over one multi-mode or single mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with 720P and 1080P resolution.





     The video optical transceivers are typically used in applications with fixed or PTZ cameras. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environments. It is now widely used in security monitoring and control system, highway, Traffic Control Photographic System, automation and intelligent residence etc.



    The function of network management is optional, and the running status of the system can be monitored by inserting just one network-managing card.


Remarks: Our product adopts modular design, it support customization, you can add kinds of signals in by customization.








Features



●  8 / 10 bit digitally encoded and non-compression video transmission



●  Available for monitoring the running status of the system with the LEDs indicating parameters status of power, link and video



●  Directly compatible with NTSC,PAL,SECAM CCTV camera systems and support RS232, RS485, RS422, and Manchester code



●  Transmission distance can reach 120km without relay in single mode



●  ndustrial-level design with SMT techniques



●  pecial ASIC design & Hot-swap function



●  Support no-damage regenerative trunk of video



●  Without electro-magnetic RF(radio frequency) and terrestrial current disturbances. Interfaces are under thunder and lightning protection



●  Stand-alone type or card-type installed in 19"2U, 4U or 5.5U rack-mount chassis



●  Network management functions are optional



●  Support customization and OEM











Typical Application




Benchmarks:

Fiber Interface
Connector FC/ SC/ ST/ LC optional
Wavelength single-mode 1310nm/1550Nm, multimode 850nm/1310nm
Transmission power ≥-9dBm
Receiving sensitivity >-34dBm(bit error rate<10 -12)
Transmission distance single-mode max 120km, multi-mode max 2km
Video
Number of Channels 1-Channel Video
Video Input/Output Impedance BNC 75Ω
Video standard PAL/NTSC/SECAM
Quantization 8/10 bit
Video Input/Output Voltage 1.0VPP (Typical value)
Video Input/Output Voltage 1.5VPP (Maximum Value)
Band width per channel ≥6.5 MHZ
Differential Gain DG < 1% (Typical value)
Differential phase DP < 1°
SNR(Signal to Noise Ratio) ≥67dB /71dB(Weighted Value)
Electrical & Mechanical
Power Input AC 100~240V,AC/DC12~48V optional
Direct-current Output DC 5V@3A
Power Protection Overvoltage Protection, Over-current Protection
Power Consumption <10W
Size(Standalone) 176 ×158 ×36mm
Environment
Working Temperature -30℃~ +70℃
Working Humidity 0~95% (Non-condensing)
Reliability
Mean Time Between Failures > 100,000 hours


    video converters are widely used for the transmission of CCTV signals over long distances and in areas exposed to harsh weather conditions. Optical fibers provide full electrical insulation and resistance to electromagnetic interference. Below there is a sample application of converters.

8 Channel BNC to Fiber Media Converter Fiber Optic Video Converter 1080P CVI TVI AHD to Fiber Video Transmitter









Certificates

Fiber optic video transmitter & receiver stand-alone AHD converter







Shipping

Fiber optic video transmitter & receiver stand-alone AHD converter


  1. Packaging : bags&caron box
  2. Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
  3. FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  4. DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.







Competitive Advantage:

Ho-Link HDTVI Converters adopt the advanced uncompressed HD composite video and

high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.







8 Channel BNC to Fiber Media Converter Fiber Optic Video Converter 1080P CVI TVI AHD to Fiber Video Transmitter
