Rack - mounted 1080P 16 Channel HDTVI AHD HDCVI to Fiber Video Transceiver with data Rs485 for for PTZ Camera

China Rack - mounted 1080P 16 Channel HDTVI AHD HDCVI to Fiber Video Transceiver with data Rs485 for for PTZ Camera supplier

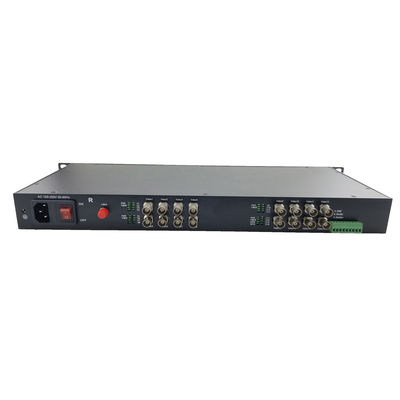

Large Image :  Rack - mounted 1080P 16 Channel HDTVI AHD HDCVI to Fiber Video Transceiver with data Rs485 for for PTZ Camera

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-TVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pairs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000Pair Per Month
Contact Now
Detailed Product Description
Number Of Channels: 16 Channels Fiber Type: Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Physical Interface: 16 Channels BNC Connector
Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm EPS: DC5V

16 Channels HDTVI Video Over Fiber Converter





Description:



HDTVI Converters adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.

Rack - mounted 1080P 16 Channel HDTVI AHD HDCVI to Fiber Video Transceiver with data Rs485 for for PTZ Camera



  • 1~16 channel HD-TVI video over one fiber
  • Support HDTV highest resolution 1080P
  • 10-bit digital video encoding and uncompressed transmission technology
  • Applied to the needs of computer long-distance transmission of industrial monitoring, large venues etc…
  • Strictly selection material and quality control in order to ensure high quality and high reliability
  • System status could be monitored by the power and other parameters LED indicator
  • Compact size
  • Excellent cost performance
  • SMT Surface Mount Technology
  • Stand-alone or rack-mount
  • Lower power consumption and free installation, debugging



Specifications:



Feature Description
Optical Fiber Type Single mode fiber
Fiber Connector FC/SC/ST
Distance 0km~80km
Wavelength Transmitter
T1310nm, R1550nm.
Receiver
T1550nm,R1310nm.
HDTVI(Transmitting) Input level >500mVp-p
self-adaptionly cable equilibrium 1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m
Input/Output Impedance 75 Ω
Physical Interface BNC
HDTVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface BNC
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate ≤<10 -7
Operation Mode Half-Duplex;Full-Duplex;RS-232
Indicators LOS,PWR,VIDEO
Mean time between failures(MTBF)



>100 000 hours

General EPS DC5V
Power Consumption ≤ 5W





Applications:

  • City traffic monitoring system
  • Public security, safe city monitoring system
  • Highway security protection, charging system
  • Building, campus monitoring net
  • Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • electric power, oilfield, television program transmission system
  • Gymnasium (live video, audio transmission)



HD Video TO Fiber Converter System connection diagram:

Rack - mounted 1080P 16 Channel HDTVI AHD HDCVI to Fiber Video Transceiver with data Rs485 for for PTZ Camera









We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
