Ho-Link 8Ch Dahua HDCVI/TVI/AHD Analog video to Optical fiber Video Converter Media Transmitter 20km

China Ho-Link 8Ch Dahua HDCVI/TVI/AHD Analog video to Optical fiber Video Converter Media Transmitter 20km supplier
Ho-Link 8Ch Dahua HDCVI/TVI/AHD Analog video to Optical fiber Video Converter Media Transmitter 20km supplier Ho-Link 8Ch Dahua HDCVI/TVI/AHD Analog video to Optical fiber Video Converter Media Transmitter 20km supplier Ho-Link 8Ch Dahua HDCVI/TVI/AHD Analog video to Optical fiber Video Converter Media Transmitter 20km supplier Ho-Link 8Ch Dahua HDCVI/TVI/AHD Analog video to Optical fiber Video Converter Media Transmitter 20km supplier Ho-Link 8Ch Dahua HDCVI/TVI/AHD Analog video to Optical fiber Video Converter Media Transmitter 20km supplier

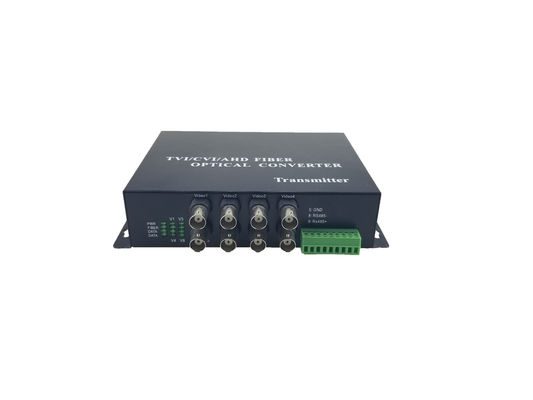

Large Image :  Ho-Link 8Ch Dahua HDCVI/TVI/AHD Analog video to Optical fiber Video Converter Media Transmitter 20km

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pairs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Certification: CE RoHS FCC Video Bandwidth: 45MHz
Fiber Connector: FC Or ST Or SC Distance: 0-80Km
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Bit Resolution: 8-Bit Digital Transmission
Fiber Type: Single Fiber Mode

8Channel HD-CVI Video Over Converter 16-Ch Combined 20km HD-CVI Video to Fiber Converter + 1-Ch Backward Data







Product Description:



CVI Video Over Fiber Converter can simultaneously transmit 1~64 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.









Features:

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~64 channels AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation




Application Diagram:





Ho-Link 8Ch Dahua HDCVI/TVI/AHD Analog video to Optical fiber Video Converter Media Transmitter 20km



  • Ø City traffic monitoring system
  • Ø Public security, safe city monitoring system
  • Ø Highway security protection, charging system
  • Ø Building, campus monitoring net
  • Ø Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Ø Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • Ø electric power, oilfield, television program transmission system
  • Ø Gymnasium (live video, audio transmission)



Order Information:


Part No. Description
H-TVI/CVI/AHD-1V-T/RF 1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF 1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF 2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF 2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF 4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF 4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF 8 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-8V1D-T/RF 8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-16V-T/RF 16 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-16V1D-T/RF 16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-32V-T/RF 32 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-32V1D-T/RF 32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data







Shipping:

Ho-Link 8Ch Dahua HDCVI/TVI/AHD Analog video to Optical fiber Video Converter Media Transmitter 20km



16ch AHD Over Fiber Optic,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter





We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.



Company Information


Company Information



Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore, Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.
16ch AHD Over Fiber Optic,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter
