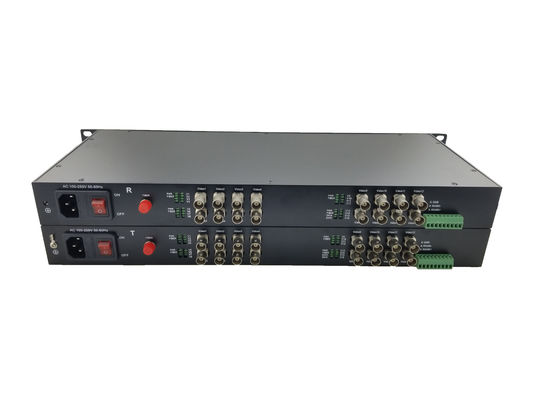

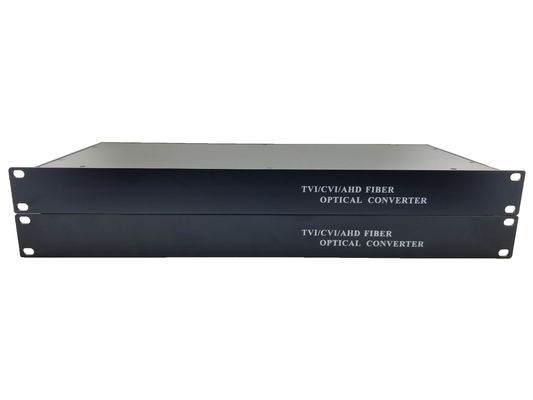

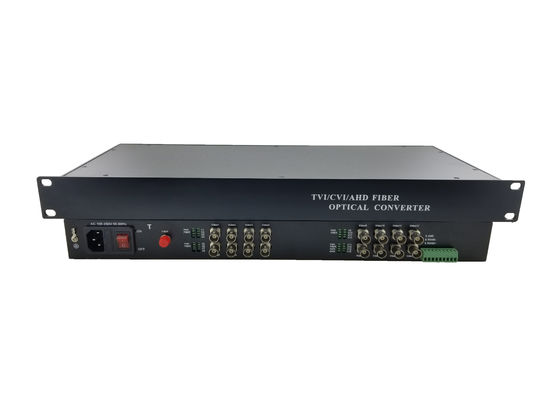

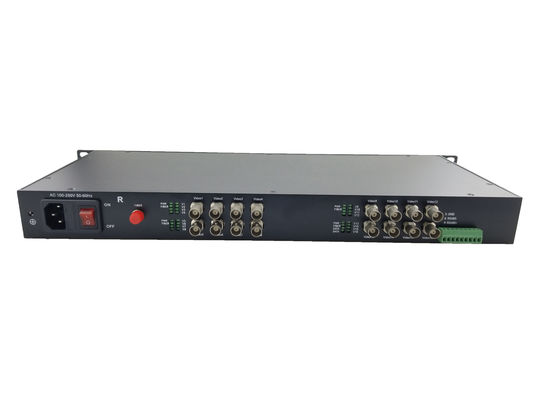

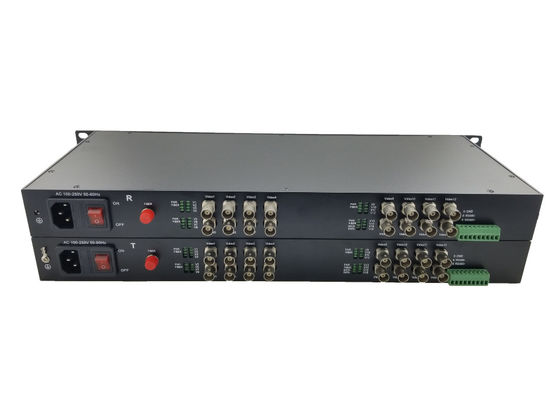

1080P 16-CH HDCVI/TVI/AHD Fiber Optic Video Transceiver 120MHz 1310nm/1550nm Single-mode Fiber 20Km FC Port
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Part Number: | H-TVI-16V1D-T/RF | Fiber Connector: | FC/SC/ST |
|---|---|---|---|
| Distance: | 20Km | Physical Interface: | BNC |
| Power Consumption: | ≤ 5W | Operation Mode: | Half-Duplex;Full-Duplex;RS-232 |
| Data Protocol: | RS485 Data | Video Bandwidth: | 60MHz |
| Transmission: | 9/125u Single Mode, 20Km | Video System: | PAL, NTSC, SECAM |
| Power: | 12V | Support Camera: | AHD HDCVI HDTVI 720P 960P 1080P |
HD video AHD CVI TVI Fiber optical converter, 16-CH 720P 960P video fiber optic transmitter, single-mode single fiber 20KM
Overview:
HD-TVI over Fiber Video Converters-Transimitter & Receiver are the perfect choice for both large and small Pro AV installations. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment.Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission over long or short distances with one fiber. In addition, the system support stereo audio, RS485 & RS232 serial data, Loopback output, Contact Closure and IP Ethernet transmission. New signals may be added or fully redundant optical transport solutions may be developed.
Features:
- 1~16 channel HD-TVI video over one fiber
- Support HDTV highest resolution 1080P
- 10-bit digital video encoding and uncompressed transmission technology
- Applied to the needs of computer long-distance transmission of industrial monitoring, large venues etc…
- Strictly selection material and quality control in order to ensure high quality and high reliability
- System status could be monitored by the power and other parameters LED indicator
- Compact size
- Excellent cost performance
- SMT Surface Mount Technology
- Stand-alone or rack-mount
- Lower power consumption and free installation, debugging
Technical Specification
Opitcal:
| Wavelength | 1310nm&1550nm |
| Output Power | -8~3dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -25dBm |
| Optical connector | FC,ST,SC (optional) |
| Distance | 0~550M (MM) / 0~80KM (SM) |
Video:
| Number of Channels | 1~16 |
| Input/output impedance | BNC 75Ω (unbalance) |
| Standard video input/output voltage | 1.0Vp-p |
| Video Bandwidth | 45MHz |
| Sampling Bandwidth | 10bit |
| Sampling Frequency | 108MHz |
| Rise and Fall time | <0.8ns |
| Optical Signal Intrinsic Jitter | <0.2 UI |
| Differential Gain | < ±1.5% |
| Differential Phase | < ±1° |
| Connector | BNC |
Applications:
- Remote OB Van/Truck Video Feeds
- Broadcast Studio Camera Feeds
- Long-haul Signal Transport
- TV station/video conference
- Lecture Hall Projector Connectivity
- Medical/Surgical Room Broadcast
- Building to video conference calling
- Small corporate campus video links
HD Video TO Fiber Converter System connection diagram
Product Certifications:
- Certificate Standard:CEView scanned certification(s)
- Certificate Number:AGC10270906SZ08-1E
- Issue Date:13-Jul-2009
- Issued By:AGC
- Expiry Date:13-Jul-2020
- Certificate Standard:FCCView scanned certification(s)
- Certificate Number:AGC10270906SZ08-1F
- Issue Date:13-Jun-2009
- Issued By:AGC
- Expiry Date:13-Jun-2020
