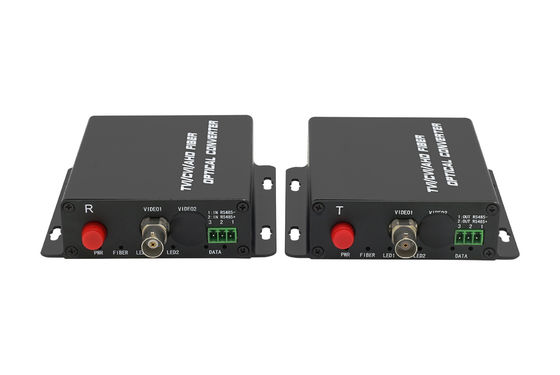

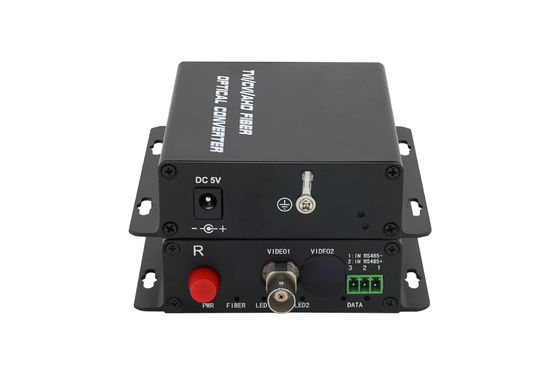

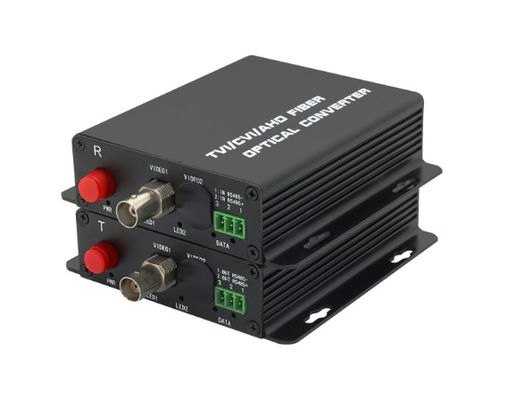

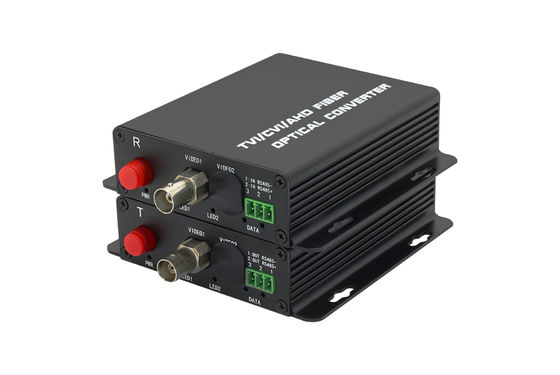

1Ch Standalone HDCVI over fiber optical transceiver HD 1080p Video Converter support Dahua CCTV camera

China 1Ch Standalone HDCVI over fiber optical transceiver HD 1080p Video Converter support Dahua CCTV camera supplier
1Ch Standalone HDCVI over fiber optical transceiver HD 1080p Video Converter support Dahua CCTV camera supplier 1Ch Standalone HDCVI over fiber optical transceiver HD 1080p Video Converter support Dahua CCTV camera supplier 1Ch Standalone HDCVI over fiber optical transceiver HD 1080p Video Converter support Dahua CCTV camera supplier 1Ch Standalone HDCVI over fiber optical transceiver HD 1080p Video Converter support Dahua CCTV camera supplier

Large Image :  1Ch Standalone HDCVI over fiber optical transceiver HD 1080p Video Converter support Dahua CCTV camera

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 3 Pair
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after payment confirmed
Payment Terms: T/T, Western Union
Supply Ability: 3,000 Pairs Per Month
Contact Now
Detailed Product Description
Function: Video To Fiber Optical Modem Optical Connector: FC/SC/ST
Power: DC5V 2A Operation Mode: Full Duplex / Half Duplex
Color: Black Warranty: 3 Years
Storage Humidity: 10%~90% RH Video Connector: BNC
Case Material: Aluminum Distance: 0~80km (Optional)
Fiber Type: Dual Fiber/Single Fiber Speed: 10/100/1000M

1Ch CVI Digital Video to Fiber Optic Converter



Introduction:



This HDCVI TO Fiber video Converter can simultaneously transmit 8 channels HDCVI and 1CH reverse RS485 over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission.In addition,ethernet/telephone/audio/contact closure can be added when you need.It support Dahua and other brand CCTV CVI cameras.



Specifications:



Opitcal:



Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~20KM (SM)



Video:



Number of Channels 4
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC



Other



Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Unit Weight 1.5KG(pair)
Dimension 175mm×154mm×30mm
Installation Wall mount
MTBF ≥ 100000Hours




HDTVI TO Fiber Converter System connection diagram:



1Ch Standalone HDCVI over fiber optical transceiver HD 1080p Video Converter support Dahua CCTV camera

1Ch Standalone HDCVI over fiber optical transceiver HD 1080p Video Converter support Dahua CCTV camera
