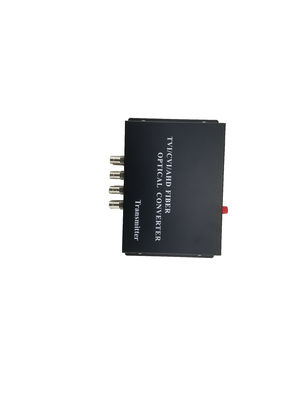

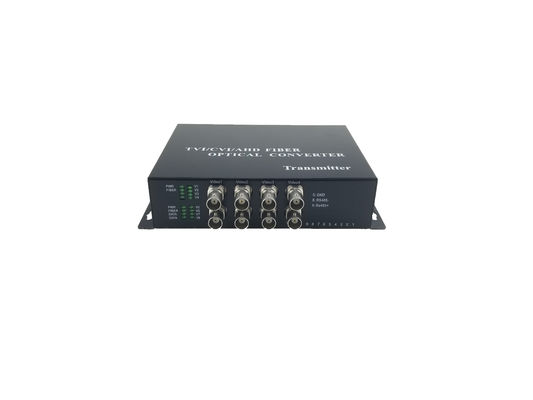

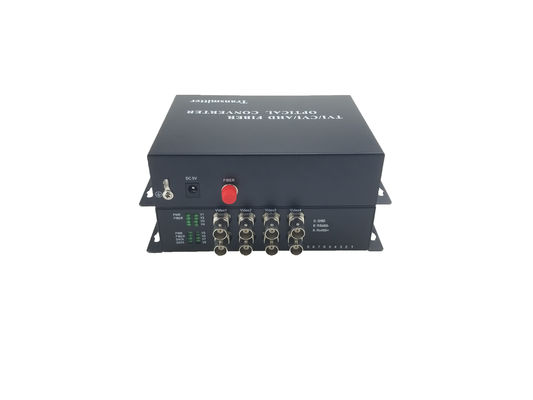

HD CVI/AHD Optical Converter with 8 CH- Fiber Optic Transmitter and Receiver. Single /Multimode, RS485/232BNC port,20KM,
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Wavelength: | 850/1310nm | Temperature: | -30ºC ~75ºC |
|---|---|---|---|
| Support: | OEM/ODM | Power: | 5V 2A |
| Sampling Bandwidth: | 10bit | Number Of Channels: | 8 |
| Highlight: | 1080p hd video converter,cctv video multiplexer |
||
HD CVI/AHD Optical Converter with 8 CH- Fiber Optic Transmitter and Receiver. Single Mode/Multimode, BNC port,20KM,
Product Description
Video & Audio to Fiber Multiplexer can simultaneously transmit 8 ch AHD/CVI/TVI/CVBS/Analog Video & 8ch Audio & more benefits(optional) over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment .
Product Features
*Signal-to-noise ratio (SNR) remains unchanged within transmission range
*Automatic power adjustment and automatic temperature compensating circuit
*Surface-mount technology
*Power and working state indication
*Plug-in and freestanding structure
*Automatic recovery of overload protection
*FC optical connector
*In conformity with NEMA specifications
*Hot swap replacement
*Ultra-optical dynamic range, and adjustment is needless in use
Description:
| Opitcal: | |
| Wavelength | 1310nm&1550nm |
| Output Power | -6~-2dBm |
| Rx sensitivity | -22dBm |
| Transmission Distance | 9/125u single mode, 20km |
| Optical connector | FC,ST,SC (optional) |
| Video: | |
| Number of Channels | 8 |
| Input/output impedance | 75Ω |
| Physical Port | BNC port |
| Standard video input/output voltage | 1.0Vp-p |
| Video Bandwidth | 60MHz |
| Sampling Bandwidth | 10bit |
| Sampling Frequency | 120MHz |
| Rise and Fall time | <0.8ns |
| Optical Signal Intrinsic Jitter | <0.2 UI |
| Differential Gain | < ±1.5% |
| Differential Phase | < ±1° |
| Data: | |
| Data protocol | RS485 |
| Data rate | 0~200 Kbps |
| Error rate | < 10-9 |
| Connector | Standard terminal lead |
| Other: | |||
| Power | DC5V 2A | ||
| Power Consumption | ≤7.5W | ||
| Temperature | -30ºC ~75ºC | ||
| Humidity | 10%~90% RH | ||
| Installation | Wall mount | ||
| MTBF | ≥ 100000Hours | ||
| Case material | Aluminum | ||
