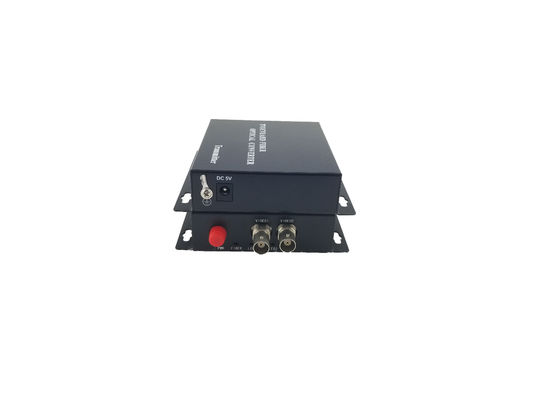

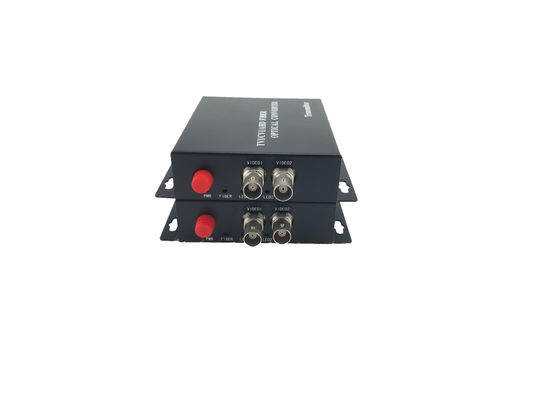

HD-CVI / AHD / TVI Fiber Video Converter 720P 1080P 2 Chs 20KM Single Mode CE RoHs
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Optic Wavelength: | 1310/1550nm | Shipping: | DHL.TNT,UPS |
|---|---|---|---|
| Encoded Type: | RS485 / RS422 / RS232 | Certificate: | CE RoHS ,FCC |
| Delivery: | 2-3 Days | Operation Humidity: | 10%~90% |
| Highlight: | optical fibre converter,video digital optical converter |
||
Supplier of HD-CVI/AHD/TVI vedio fiber converter, 720P/1080P 2Chs AHD Video to Fiber Converter,20KM single mode
Product Description
Introduction
Our Standard video transmitter/Audio/data transceiver and video receiver/Audio/data transceiver
series utilizes uncompressed digital encoding and decoding for high-quality video transmission. These
environmentally hardened units provide transmission of 2 independent video channel, 1 audio channel
and 1 bi-directional data channel over one single-mode or multimode optical fiber and are ideal for use
in unconditioned roadside or out-of-plant installations. The product is widely used in the field of CCTV,
video surveillance, national defense, ITS and etc.
Feature
- Supports point-to-point connection
- Unpressed and undistorted digital broadcasting transmission
- Free from intermodulation interference from optical transceivers
for simulated frequency, phase, and amplitude modulations
- Supports any high-resolution video signals
- Supports video nondestructive regenerated relay
- Auto compatible with PAL, NTSC, SECAM video systems
- Supports video, data, Ethernet, telephone voice parallel
transmis sion
Application
Highway, transportation, electronic police, monitoring, security protection, industrial automation, electricity, customs, water conservatncy, bank and so on
Sample time: 1-2 days after receiving the sample fee. We can make the product according to your requirment.
AHD TO Fiber Converter System connection diagram
Technical Specification
Video Digital Fiber Optic Transmitter and Receiver
Video Digital Fiber Optic Transmitter
1.good Price
2.high-quality
3.low power comsuption
4. CE,RoHs,FCC
| Fiber | FC, Single Mode Single Fiber |
| Transmition Distance | 0-120km |
| Wavelength | Transmitter: 1310nm(Tx)/1550nm(Rx) |
| Receiver: 1550nm(Tx)/1310nm(Rx) | |
| Transmitter Input Level | >500mVp-p |
| Receiver Output Level | 1Vp-p |
| Self-adaption cable equilibrium |
1080p: 75-5 coaxial cable,300m
960p: 75-5 coaxial cable,500m
720p: 75-5 coaxial cable,500m
|
| Transmitter Input Return Loss | >15dB |
| Input/Output Impedance | 75Ω |
| Video Physical Interface | BNC |
| Video Channel | 1-Ch~16-Ch |
| Video bandwidth | 50MHz |
| Sampling Bandwidth | 10 bit |
| RS485 | 1-Ch Backward RS485 (Optional) |
| Indicators | OPT, PWR, DATA, VIDEO |
| Power | DC 5V2A |
| Power Consumption | ≤7W |
| Operation Humidity | 10%~90% |
| Operation Temperature | -30°C~75°C |
