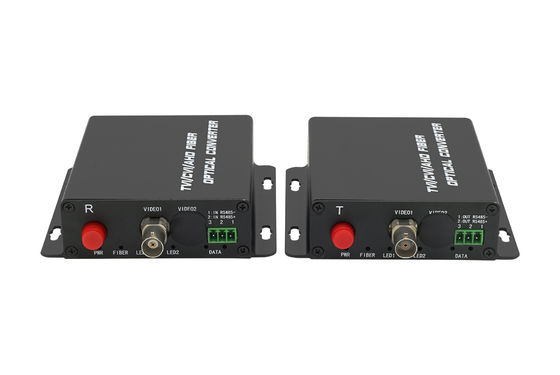

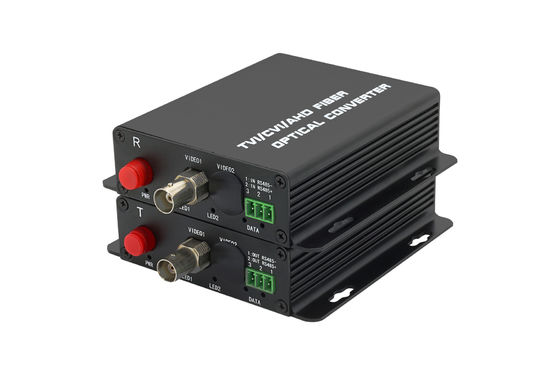

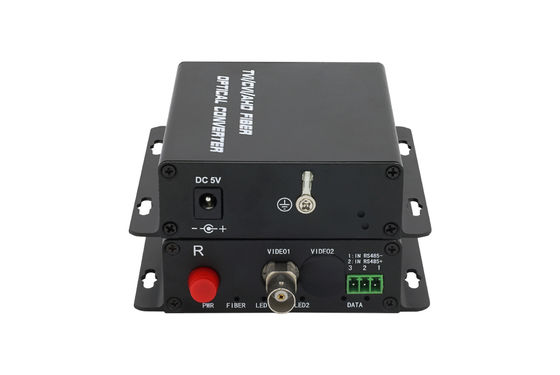

CVI TVI AHD R232 / RS422 / R485 BNC To Video Digital Optical Converter For IP Camera FC Connector
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Video Bandwidth: | 45MHz | Number Of Channels: | 4 Channels |
|---|---|---|---|
| Optical Connector: | FC,ST,SC (optional) | Output Power: | -8~3dBm |
| Control Port: | RS-485 | Power: | DC5V 2A |
| Highlight: | optical fibre converter,video digital optical converter |
||
R232/RS422/R485 BNC to fiber digital video converter for IP Camera, with FC connector 20km
Product Description
Introduction
HDCVI TO Fiber Converter can simultaneously transmit 1-16 channels HDCVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission.
Feature
- Ø Non-compression coding technology
- Ø Automatically identify formats of input videos
- Ø Support transmission of 1~16 channel AHD signal and controlling data simultaneously though coaxial cable
- Ø DC 5V power supply
- Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
- Ø Through LED indicators to inform its functional mode
- Ø Industrial wide range of operational temperature
- Ø Plug and play, simple installation
Application
² City traffic monitoring system
² Public security, safe city monitoring system
² Highway security protection, charging system
² Building, campus monitoring net
² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
² electric power, oilfield, television program transmission system
² Gymnasium (live video, audio transmission)
AHD TO Fiber Converter System connection diagram
Technical Specification
Opitcal:
| Wavelength | 1310nm&1550nm |
| Output Power | -8~3dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -25dBm |
| Optical connector | FC,ST,SC (optional) |
| Distance | 0~550M (MM) / 0~20KM (SM) |
Video
| Number of Channels | 4 |
| Input/output impedance | BNC 75Ω (unbalance) |
| Standard video input/output voltage | 1.0Vp-p 720P and 1080P optional |
| Video Bandwidth | 45MHz |
| Sampling Bandwidth | 10bit |
| Sampling Frequency | 108MHz |
| Rise and Fall time | <0.8ns |
| Optical Signal Intrinsic Jitter | <0.2 UI |
| Differential Gain | < ±1.5% |
| Differential Phase | < ±1° |
| Connector | BNC |
| Data | |
| Data protocol | RS232,RS422,RS485,Manchester,BIPHASE data |
| Data rate | 0~500 Kbps |
| Error rate | < 10-9 |
| Connector | Standard terminal lead |
Other
| Power | DC5V 2A |
| Power Consumption | ≤5W |
| Temperature | -30ºC ~75ºC |
| Humidity | 10%~90% RH |
| Unit Weight (pair) | 1.5kg |
| Dimension | 175mm×154mm×30mm |
| Package size | 30×22×9cm |
| Installation | Wall mount |
| MTBF | ≥ 100000Hours |
| Case material | Aluminum |
