AHD Video Over Fiber Converter HD 1080p Video Converter HD-CVI / AHD / TVI Converter
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Number Of Channels: | 1~16 | Atmospheric Pressure: | 86kpa~106kpa |
|---|---|---|---|
| Bit Error Rate: | <10 | Ower Consumption: | <5W |
| EPS: | DC5V | Distance: | 0km~80km (Optional) |
| Highlight: | cctv video multiplexer,bnc to fiber converter |
||

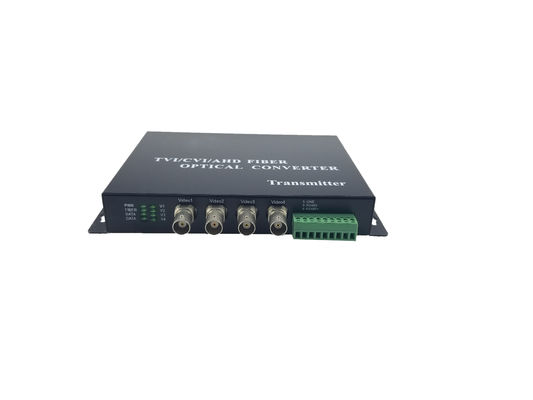

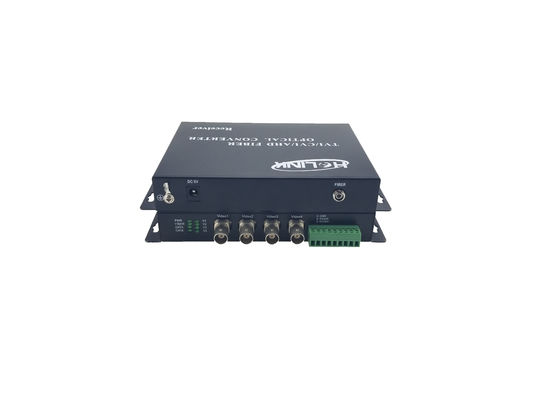

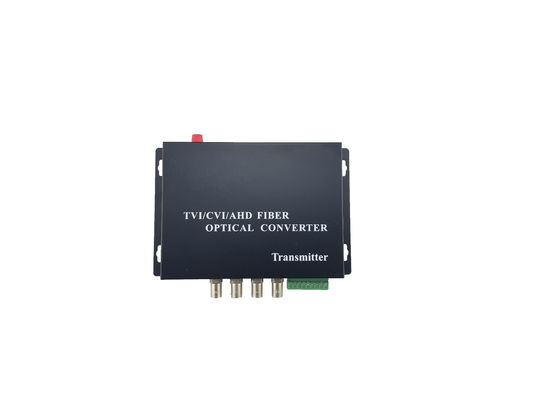

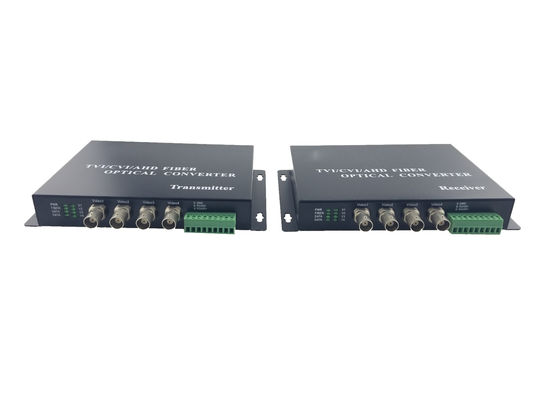

AHD Video over Fiber Converter for 720P, 1080P/4Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter
Product Description
Introduction
Video Converter can simultaneously transmit 1-16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.
Devices are available for either standalone or rack-mount installation, which is suitable for
different working environment .
Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.
Feature
- Ø Non-compression coding technology
- Ø Automatically identify formats of input videos
- Ø Support transmission of 1~16 channel AHD signal and controlling data simultaneously though coaxial cable
- Ø DC 5V power supply
- Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
- Ø Through LED indicators to inform its functional mode
- Ø Industrial wide range of operational temperature
- Ø Plug and play, simple installation
Application
n City traffic monitoring system
n Police and safe city monitoring system
n High way security protection and toll station system
n Building and campus monitoring system
n Industrial monitoring(airport, chemical plant, steel, oil, railway, irrigation works, mine and so on)
n Military monitoring(storage, frontier defense, guard, national defense and so on)
n Electronic power oil field, TV station program broadcasting system
n Gymnasium (live video and audio transmission)
Technical Specification
| Feature | Description | ||
| Optical | Fiber Type | Multi-mode fiber or Single mode fiber | |
| Fiber Connector | FC or ST or SC | ||
| Distance | 0km~80km (Optional) | ||
| Wavelength |
Transmitter T1310nm, R1550nm. Receiver T1550nm,R1310nm. |
||
| HDCVI(Transmitting) | Input level | >500mVp-p | |
| self-adaptionly cable equilibrium |
1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m |
||
| Input/Output Impedance | 75 Ω | ||
| Physical Interface | 1/2/4/8 channel BNC connector | ||
| HDCVI(Receiving) | Output level | 1Vp-p | |
| Input/Output Impedance | 75Ω | ||
| Physical Interface | 1/2/4/8 channel BNC connector | ||
| Data | Transmission Media | Coaxial cable | |
| Baud Rate | 1200~9600bit/s | ||
| Bit Error Rate | <10 | ||
| Operation Mode | Half-Duplex | ||
| Indicators | LOS,PWR,DATA,VIDEO | ||
| Mean time between failures(MTBF) |
>100 000 hours |
||
| General | EPS | DC5V | |
| Power Consumption | <5W | ||
| Operation Temperature | —40℃~75℃ | ||
| Operation Humidity | 10%~90% | ||
| Atmospheric Pressure | 86kpa~106kpa | ||
| Mounting Method | Wall mounted | ||
Ordering information
| Model Number | Product Configuration | Fiber Interface | Fiber Mode | Wavelengths | Transmission Distance |
| H-CVI-1V-T/RF | 1 Ch Forward HDCVI Video | FC/SC/ST | Single-mode |
1310/1550 nm |
20Km |
| H-CVI-1V1D-T/RF | 1 Ch Forward HDCVI Video+1 Ch Reverse Data | FC/SC/ST | Single-mode | 1310/1550 nm | 20Km |
| H-CVI-2V-T/RF | 2 Ch Forward HDCVI Video | FC/SC/ST | Single-mode |
1310/1550 nm |
20Km |
| H-CVI-2V1D-T/RF | 2 Ch Forward HDCVI Video+1 Ch Reverse Data | FC/SC/ST | Single-mode | 1310/1550 nm | 20Km |
| H-CVI-4V-T/RF | 4 Ch Forward HDCVI Video | FC/SC/ST | Single-mode |
1310/1550 nm |
20Km |
| H-CVI-4V1D-T/RF | 4 Ch Forward HDCVI Video+1 Ch Reverse Data | FC/SC/ST | Single-mode | 1310/1550 nm | 20Km |
| H-CVI-8V-T/RF | 8 Ch Forward HDCVI Video | FC/SC/ST | Single-mode |
1310/1550 nm |
20Km |
| H-CVI-8V1D-T/RF | 8 Ch Forward HDCVI Video+1 Ch Reverse Data | FC/SC/ST | Single-mode | 1310/1550 nm |
20Km |
Packaging & Shipping
1 All of our package are international standard package
2 We will deliver our products as soon as the order confirmed
