full hd video 4 Channels CVI Audio Video Converter Box High Resolution
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 4-Chs HDCVI/TVI/AHD To Fiber Converter | Optical Connector: | FC (Default), ST, SC (optional) |
|---|---|---|---|
| Rise And Fall Time: | <0.8ns | Fiber Type: | SMF |
| OEM/ODM: | Available | Video Resolution: | 720p(25/30/50/60 Pin), 1080p(25/30/50/60 Pin) |
| Highlight: | 1080p hd video converter,bnc to fiber converter |
||

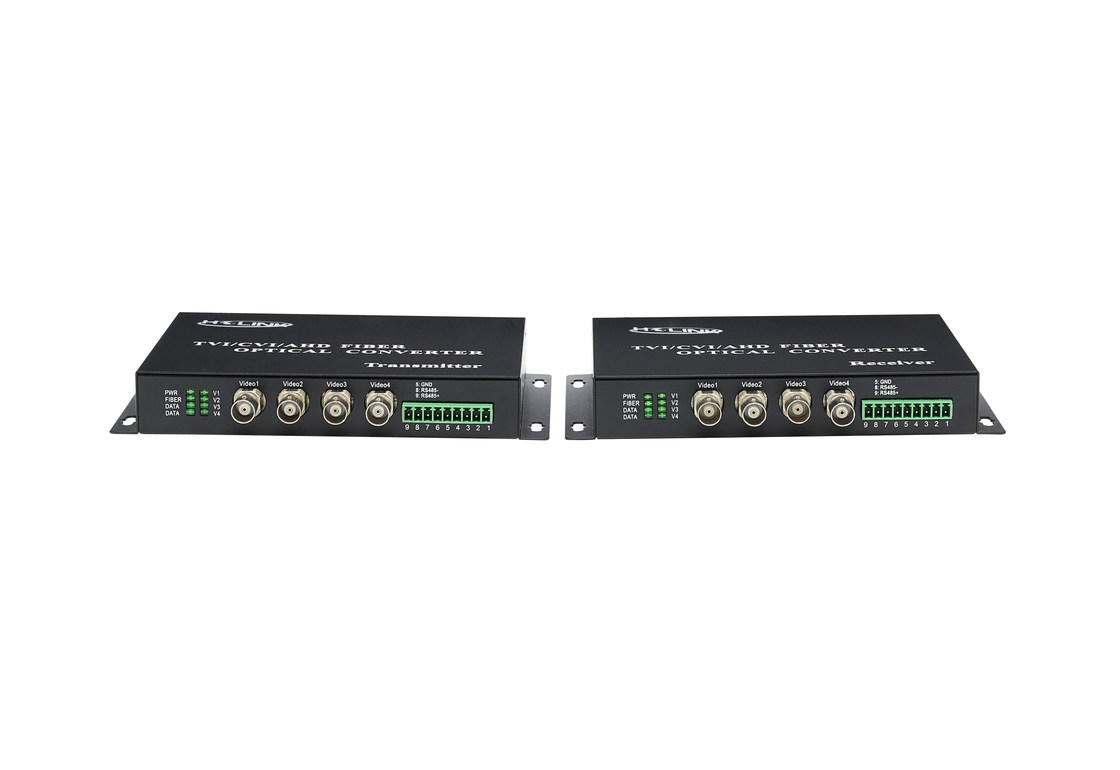

4-ch Digital HD-CVI Video Fiber Optical Converter+1Ch RS485 data
Product Description
HDCVI/TVI/AHD TO Fiber Converter adopt the advanced uncompressed HD composite video and
high velocity digital optical transmission technologies which convert the HDCVI composite
signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.
Features:
- Ø Non-compression coding technology
- Ø Automatically identify formats of input videos
- Ø Support transmission of 1~16 channel HDCVI signal and controlling data simultaneously though coaxial cable
- Ø DC 5V power supply
- Ø Support 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30 videos etc
- Ø Through LED indicators to inform its functional mode
- Ø Industrial wide range of operational temperature
- Ø Plug and play, simple installation.
HDCVI TO Fiber Converter System connection diagram
Technical Specification
| Feature | Description | |
| Optical | Fiber Type | Multi-mode fiber or Single mode fiber |
| Fiber Connector | FC or ST or SC | |
| Distance | 0km~80km (Optional) | |
| Wavelength |
Transmitter T1310nm, R1550nm. Receiver T1550nm,R1310nm. |
|
| HDCVI(Transmitting) | Input level | >500mVp-p |
| self-adaption cable equilibrium |
1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m |
|
| Input/Output Impedance | 75 Ω | |
| Physical Interface | 1~16 channel BNC connector | |
| HDCVI(Receiving) | Output level | 1Vp-p |
| Input/Output Impedance | 75Ω | |
| Physical Interface | 1~16 channel BNC connector | |
| Data | Transmission Media | Coaxial cable |
| Baud Rate | 1200~9600bit/s | |
| Bit Error Rate | less than10 | |
| Operation Mode | Half-Duplex | |
| Indicators | LOS,PWR,DATA,VIDEO | |
| Mean time between failures(MTBF) |
>100 000 hours |
|
| General | EPS | DC5V |
| Power Consumption | less than 5W | |
| Operation Temperature | —40℃~75℃ | |
| Operation Humidity | 10%~90% | |
| Atmospheric Pressure | 86kpa~106kpa | |
| Mounting Method | Wall mounted | |
Application:
² City traffic monitoring system
² Public security, safe city monitoring system
² Highway security protection, charging system
² Building, campus monitoring net
² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
² electric power, oilfield, television program transmission system
² Gymnasium (live video, audio transmission)
