Full HD 1 Channel CCTV video digital optical c Support 720p/960p/1080p Ptz controlling 4-Ch HDCVI/TVI/AHD to Fiber video
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 1-Ch HDCVI/TVI/AHD To Fiber Converter | Transmission Distance: | 20Km |
|---|---|---|---|
| Certification: | Fcc/CE/Rohs | Operation Temperature: | -40℃~+75℃ |
| Optical Wavelength: | Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm | Video Resolution: | 720p(25/30/50/60 Pin), 1080p |
| Highlight: | 1080p hd video converter,bnc to fiber converter |
||

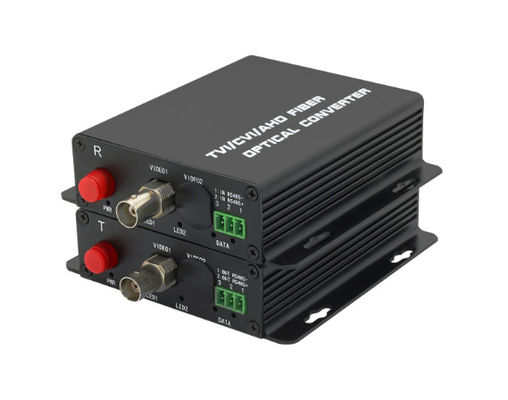

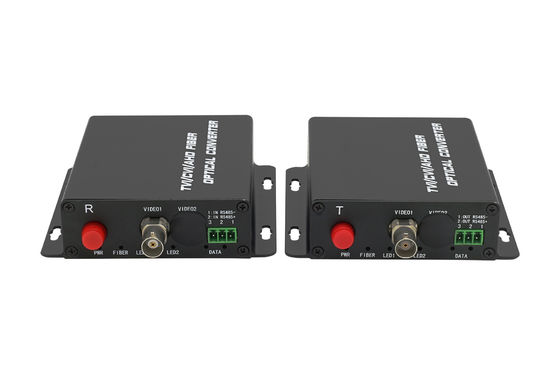

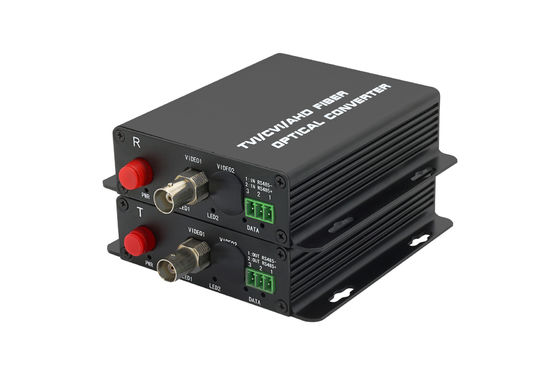

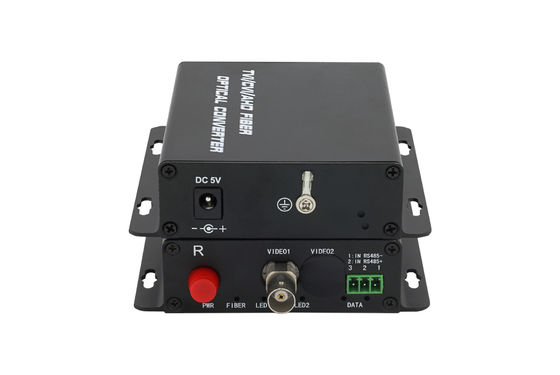

1-ch Digital HD-CVI Video Fiber Optical Converter+1Ch RS485 data
Product Description:
AHD Video Over Fiber Converter can simultaneously transmit 1~64 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.
Features:
- Ø Non-compression coding technology
- Ø Automatically identify formats of input videos
- Ø Support transmission of 1~64 channels AHD signal and controlling data simultaneously though coaxial cable
- Ø DC 5V power supply
- Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
- Ø Through LED indicators to inform its functional mode
- Ø Industrial wide range of operational temperature
- Ø Plug and play, simple installation
Technical Specification
| Feature | Description | |
| Optical | Fiber Type | Multi-mode fiber or Single mode fiber |
| Fiber Connector | FC or ST or SC | |
| Distance | 0km~80km (Optional) | |
| Wavelength |
Transmitter T1310nm, R1550nm. Receiver T1550nm,R1310nm. |
|
| HDCVI(Transmitting) | Input level | >500mVp-p |
| self-adaption cable equilibrium |
1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m |
|
| Input/Output Impedance | 75 Ω | |
| Physical Interface | 1~16 channel BNC connector | |
| HDCVI(Receiving) | Output level | 1Vp-p |
| Input/Output Impedance | 75Ω | |
| Physical Interface | 1~16 channel BNC connector | |
| Data | Transmission Media | Coaxial cable |
| Baud Rate | 1200~9600bit/s | |
| Bit Error Rate | less than10 | |
| Operation Mode | Half-Duplex | |
| Indicators | LOS,PWR,DATA,VIDEO | |
| Mean time between failures(MTBF) |
>100 000 hours |
|
| General | EPS | DC5V |
| Power Consumption | less than 5W | |
| Operation Temperature | —40℃~75℃ | |
| Operation Humidity | 10%~90% | |
| Atmospheric Pressure | 86kpa~106kpa | |
| Mounting Method | Wall mounted | |
Application Diagram:
- Ø City traffic monitoring system
- Ø Public security, safe city monitoring system
- Ø Highway security protection, charging system
- Ø Building, campus monitoring net
- Ø Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
- Ø Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
- Ø electric power, oilfield, television program transmission system
- Ø Gymnasium (live video, audio transmission)
Order Information:
| Part No. | Description |
| H-TVI/CVI/AHD-1V-T/RF | 1 Ch Forward TVI/CVI/ AHD Video |
| H-TVI/CVI/AHD-1V1D-T/RF | 1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data |
| H-TVI/CVI/AHD-2V-T/RF | 2 Ch Forward TVI / CVI / AHD Video |
| H-TVI/CVI/AHD-2V1D-T/RF | 2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data |
| H-TVI/CVI/AHD-4V-T/RF | 4 Ch Forward TVI /CVI / AHD Video |
| H-TVI/CVI/AHD-4V1D-T/RF | 4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data |
| H-TVI/CVI/AHD-8V-T/RF | 8 Ch Forward TVI /CVI / AHD Video |
| H-TVI/CVI/AHD-8V1D-T/RF | 8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data |
| H-TVI/CVI/AHD-16V-T/RF | 16 Ch Forward TVI /CVI / AHD Video |
| H-TVI/CVI/AHD-16V1D-T/RF | 16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data |
| H-TVI/CVI/AHD-32V-T/RF | 32 Ch Forward TVI /CVI / AHD Video |
| H-TVI/CVI/AHD-32V1D-T/RF | 32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data |
We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
