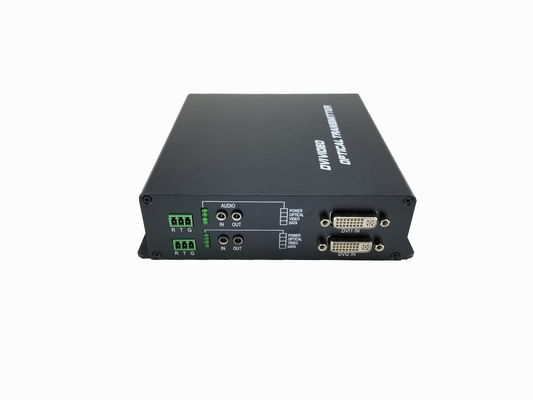

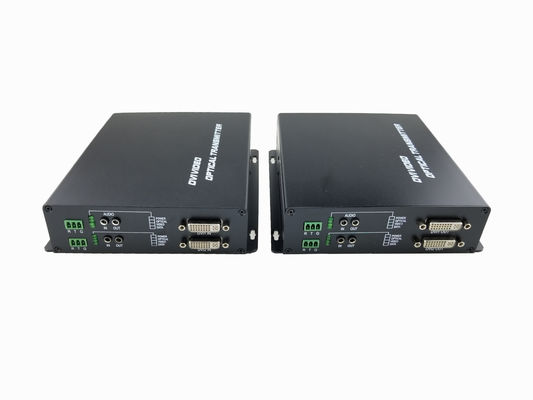

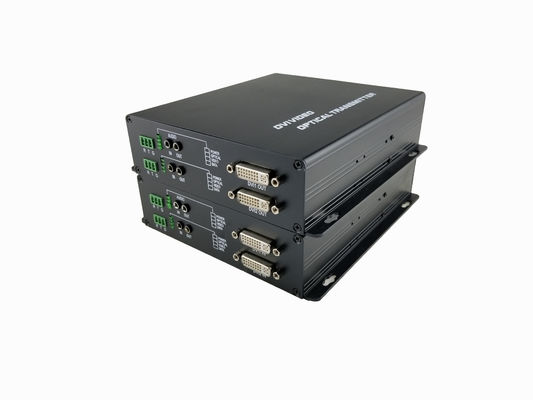

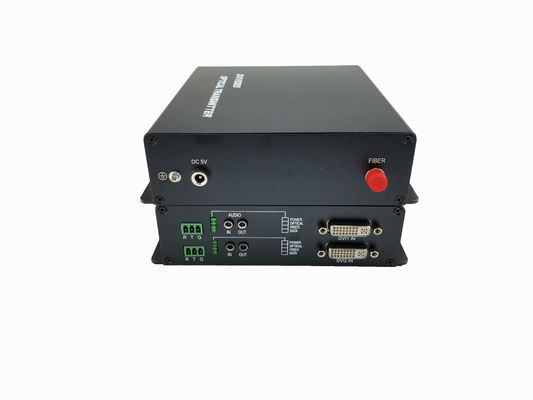

2channel HD DVI digital video to fiber optic media converter, 10km on SMF,HDCP 1.2, support RS-232, RS-422, RS-485
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Standard: | DVI 1.0; HDCP 1.2 | Wavelength: | Single Mode-1310nm |
|---|---|---|---|
| Type: | Single Mode | Max Resolution: | 1920*1080 |
| Operating Humidity Range: | 5% ~ 90% | Dimension: | 94.5*73*26mm |
| Highlight: | dvi fiber optic extender,dvi video converter |
||
4ch HD DVI digital video to fiber optic media converter, 10km on SMF
Overview:
H-DVI-1V1D1A-T/RL Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced.
It can transfer signal source(computer signal source,VGA signal source high digital DVD/DVR and various resolution DVI signal…) to long distance terminal easily,with strong anti-interferance performance,ensure the signal completed and stable
Each LED indicator lamp:
| Indicator Light | DVI Transmitter | DVI Receiver | |
| VIDEO | On | Video signal on | |
| Off | Video signal off | ||
| LOCK | On | Fixed video signal | |
| Off | Not fixed video signal | ||
| RUN | On | Device works smoothly | |
| Off | Device not works smoothly | ||
| POWER | On | Power on | |
| Off | Power off | ||
Specifications:
| Parameter | Description | |
| Video | Standards | DVI 1.0; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution range | Up to 1920X1200@60Hz | |
| Connector | DVI-D | |
| Impedance | 100Ω | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode | |
| Wavelength | Single-mode 1310nm(optional) | |
| Interface bandwidth | 10Gbps | |
| Transmission distance | Single-mode fiber: standard 2km;maximum 10km | |
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | MAX 5W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 94.5*73*26mm | |
| The warranty |
1 year free warranty |
|
Main features:
1, Full digital, Uncompressed HD optical fiber transmission
2, Support Full HD 1920*1080@60Hz
3, The attenuation of optical module SFP low to -3db
4, Support DVI 1.3b Protocal
5, Support KVM
6, Automatic equalization inside, stable and clear graphics.
7, ESD protection circuit inside, to ensure the ESD damage.
8, Easily to installation, plug and play, no need to set up
9, Transmit 1-Ch DVI video & 1-ch stereo audio & 1-CH RS232 DATA over one fiber
Applications:
