2 channel CVI cctv camera video converter HD 1080p Video Converter Uncompressed Digital Composite Video
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model Number: | H-CVI-2V1D-T/RF | Frequency Response: | 10 Hz~29kHz @±3dB |
|---|---|---|---|
| MTBF: | ≥ 100000Hours | Certification: | CE/FCC/RoHs Compliant |
| Distance: | 0~80km | Operation Mode: | Half-Duplex;Full-Duplex;RS-232 |
| Input/output Impedance: | BNC 75Ω (unbalance) | Power Consumption : | ≤ 5W |
| Highlight: | 1080p hd video converter,cctv video multiplexer |
||

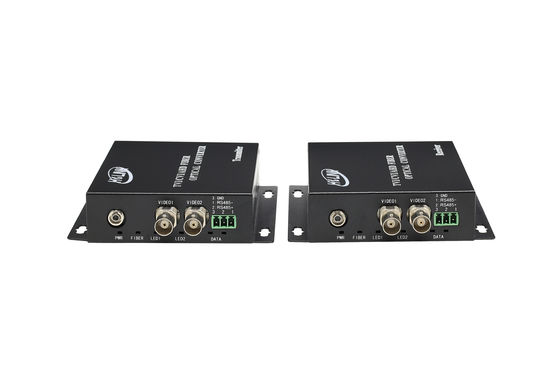

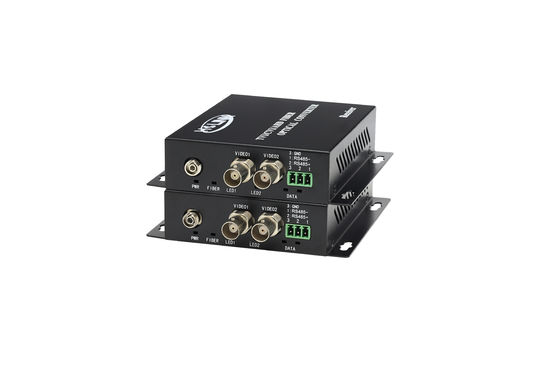

2Ch CVI Video to Fiber Optic Converter
Introduction:
HDCVI TO Fiber video Converter can simultaneously transmit 8 channels HDCVI and 1CH reverse RS485 over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission.In addition,ethernet/telephone/audio/contact closure can be added when you need.It support Dahua and other brand CCTV CVI cameras.
Features:
- 1~16 channel HD-CVI video over one fiber
- Support HDTV highest resolution 1080P
- 10-bit digital video encoding and uncompressed transmission technology
- Applied to the needs of computer long-distance transmission of industrial monitoring, large venues etc…
- Strictly selection material and quality control in order to ensure high quality and high reliability
- System status could be monitored by the power and other parameters LED indicator
- Compact size
- Excellent cost performance
- SMT Surface Mount Technology
- Stand-alone or rack-mount
- Lower power consumption and free installation, debugging
Key Features:
- Support Point-to-Point or Daisy-Chain connection
- Uncompressed Digital Composite Video over one fiber
- Compatible with all PAL, NTSC,SECAM Video Systems
- Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
- Single-Mode Fiber Support for Distances up to 100 km
- LED Status Provide Rapid Indication of Operating Parameters
- No EMI or RFI and no ground loops
- Support Coarse Wavelength Division Multiplexing (CWDM)
- Stand alone
- Produce according to customer's specifications,providing OEM
Technical Indexes:
| Fiber | FC, Single Mode Single Fiber |
| Transmition Distance | 0-120km |
| Wavelength | Transmitter: 1310nm(Tx)/1550nm(Rx) |
| Receiver: 1550nm(Tx)/1310nm(Rx) | |
| Transmitter Input Level | >500mVp-p |
| Receiver Output Level | 1Vp-p |
| Self-adaption cable equilibrium |
1080p: 75-5 coaxial cable,300m
960p: 75-5 coaxial cable,500m
720p: 75-5 coaxial cable,500m
|
| Transmitter Input Return Loss | >15dB |
| Input/Output Impedance | 75Ω |
| Video Physical Interface | BNC |
| Video Channel | 1-Ch~16-Ch |
| Video bandwidth | 50MHz |
| Sampling Bandwidth | 10 bit |
| RS485 | 1-Ch Backward RS485 (Optional) |
| Indicators | OPT, PWR, DATA, VIDEO |
| Power | DC 5V2A |
| Power Consumption | ≤7W |
| Operation Humidity | 10%~90% |
| Operation Temperature |
-30°C~75°C |
Order Information:
| Part Number | Description | Reach |
| HD-TVI-1VF-T/R | 1ch CVI video | 0~20Km |
| HD-TVI-1V1DF-T/R | 1ch CVI video with 1ch data | 0~20Km |
| HD- TVI-2VF-T/R | 2ch CVI video | 0~20Km |
| HD-TVI-2V1DF-T/R | 2ch CVI video with 1ch data | 0~20Km |
| HD-TVI-4VF-T/R | 4ch CVI video | 0~20Km |
| HD-TVI-4V1DF-T/R | 4ch CVI video with 1ch data | 0~20Km |
| HD-TVI-8VF-T/R | 8ch CVI video | 0~20Km |
| HD-TVI-8V1DF-T/R | 8ch CVI video with 1ch data | 0~20Km |
