Optical digital audio receiver HDMI to Video Converter 1Chanel 1920 * 1080P@60Hz 3G Bandwidth

Campus/Metro CCTV Security HDMI to Video Converter 1920*1080P&60hz for Advertising,Low Cost,3G Fiber Bandwidth

Overview:

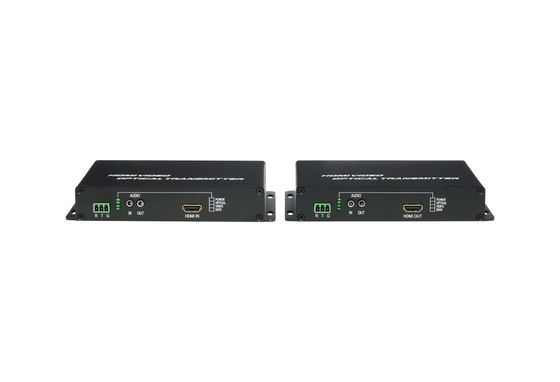

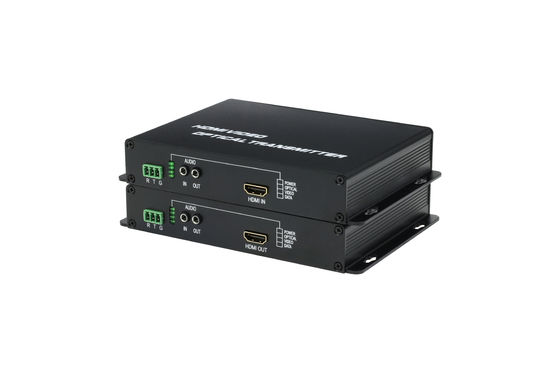

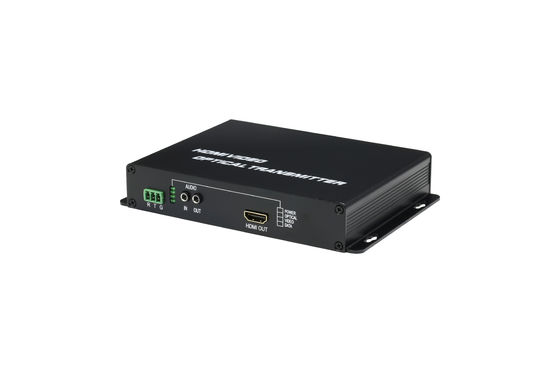

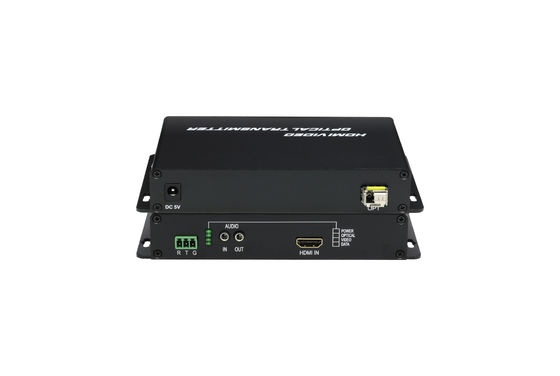

      H-HDMI-1V1D1A-T/RL Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source(computer signal source,VGA signal source high digital DVD/DVR and various resolution HDMI signal…) to long distance terminal easily,with strong anti-interferance performance,ensure the signal completed and stable

Specifications:

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Resolution	1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz
	Connector	Female HDMI type A
	Impedance	100
Audio	Interface	3.5mm earphone seat
	Signal type	Stereo
RS232	Interface	Industrial terminal
	Baud rate	Self-adaptive, Max:115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	3Gbps
	Transmission distance	standard 10km







Order Information:





Key Features:


1, Full digital, Uncompressed HD optical fiber transmission
2, Support Full HD 1920*1080@60Hz
3, The attenuation of optical module SFP low to -3db
4, Support HDMI 1.3b Protocal
5, Support KVM
6, Automatic equalization inside, stable and clear graphics.
7, ESD protection circuit inside, to ensure the ESD damage.
8, Easily to installation, plug and play, no need to set up
9, Transmit 1-ch HDMI video & 1-ch stereo audio & 1-CH RS232 DATA over one fiber

Application Diagram:

1, Extends HDMI video and embedded audio signals to
2, very long distances over a single fiber via 3G video Optical Transceiver
3, Complies with HDMI 1.3b and earlier standards
4, Real-time status LED indicators for troubleshooting and monitoring
5, Hot-Swappable
6, Available with DVI, VGA interfaces and features

How to control quality?

Every products must be tested one by one before shipment.Your any question will be responed within 24 hours.
