16-channels HD video AHD CVI TVI Fiber optical converter, 720P 960P ,single-mode single fiber 20KM
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Number Of Channels: | 8 | Fiber Type: | Single Mode Fiber |
|---|---|---|---|
| Fiber Connector: | FC Or ST Or SC | Distance: | 10km~80km (Optional) |
| Input Level: | >500mVp-p | Self-adaption Cable Equilibrium: | 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m |
| Input/Output Impedance: | 75 Ω | Physical Interface: | 8 Channels BNC Connector |
| Wavelength: | Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm | EPS: | DC5V |
| Highlight: | Fiber Optic Transmitter Receiver,digital video transmitter |
||
16-CH HD video AHD CVI TVI Fiber optical converter, 720P 960P ,single-mode single fiber 20KM
Product Description
TVI TO Fiber Converter can simultaneously transmit 8 channels TVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with 720p/50,720p/60,1080p/25,1080p/30. Lossless non-compression real time transmission.
Features
1. High definition, Lossless non-compression real time transmission
2. Auto recognition of input video format as 25/30/50/60fps@720P & 25/30fps@1080P
3. UPnP, easy installation
4. Constant input optical power, and large dynamic range , no electrical or optical adjustments required .
5. Industry-grade of operating temperature from -30℃to 75℃
6. Stand-alone type or card-type installed in 19’’ 2U rack-mount chassis.
7. Optical interface: FC,ST, SC (optional)
Specifications
Opitcal:
| Wavelength | 1310nm&1550nm |
| Output Power | -8~3dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -22dBm |
| Optical connector | FC,ST,SC (optional) |
| Distance | 0~550M (MM) / 0~20KM (SM) |
Video:
| Number of Channels | 8 |
| Input/output impedance | BNC 75Ω (unbalance) |
| Standard video input/output voltage | 1.0Vp-p |
| Video Bandwidth | 60MHz |
| Sampling Bandwidth | 10bit |
| Sampling Frequency | 120MHz |
| Rise and Fall time | <0.8ns |
| Optical Signal Intrinsic Jitter | <0.2 UI |
| Differential Gain | < ±1.5% |
| Differential Phase | < ±1° |
| Connector | BNC |
Other
| Power | DC5V 2A |
| Power Consumption | ≤5W |
| Temperature | -40ºC ~75ºC |
| Humidity | 10%~90% RH |
| Unit Weight | 1ch :0.75kg, 2ch/4ch/8ch: 1.5KG(pair) |
| Dimension |
1 : 104mm×104mm×28mm 2ch /4ch/8ch: 183mm×154mm×30mm |
| Installation | Wall mount |
| MTBF | ≥ 100000Hours |
Can be customized the customer brand or without a trademark
Note:
• The Optical Power Budget data fit Mulit-mode(62.5/125 μm),Single-Mode(9/125 μm).
• When using 50/125 μm multimode fiber, subtract 3 dB from the optical power budget.
• Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
• Maximum transmission distance is also limited by fiber bandwidth.
• Power adapter is manufactured by third party and is supplied with fitted screw-terminal output cables.Power adapter included (for standalone) US, European, UK or Australian power plug.
• Please feel free to consult factory for any special requirement and customization.
• Due to continuous improvement, all fiber optic transmission systems and video over fiber product specifications are subject to change without further notice.
Certificates
Shipping
- Packaging : bags&caron box
- Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
- FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
- DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

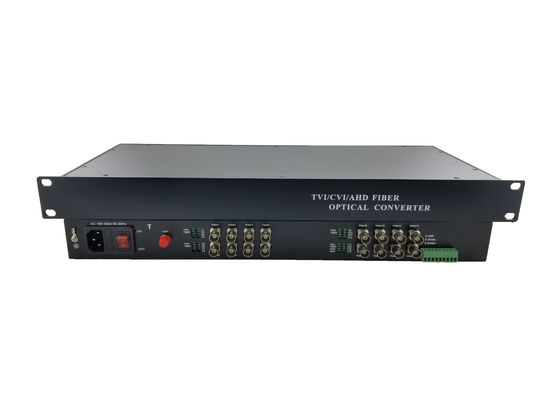

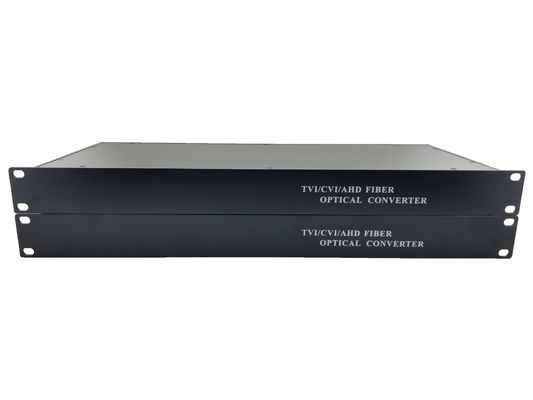

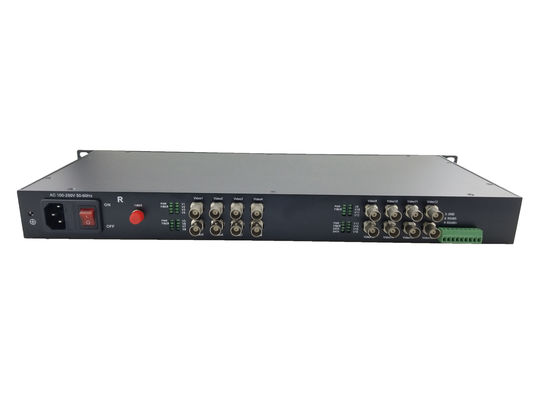

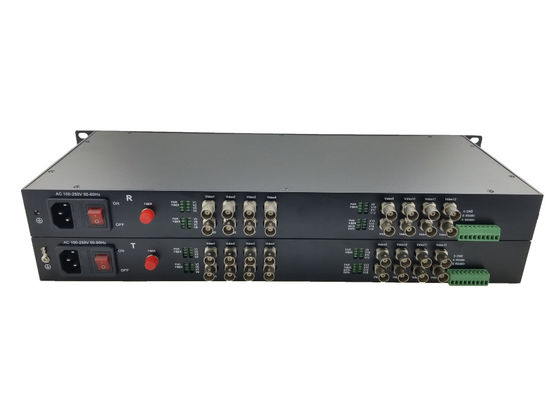

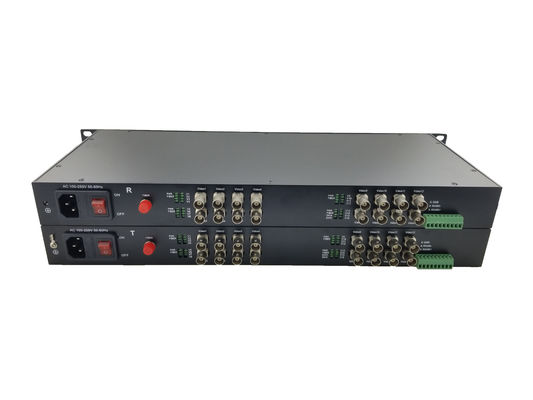

Photo Display
Competitive Advantage:
Ho-Link HDTVI Converters adopt the advanced uncompressed HD composite video and
high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.
HDTVI TO Fiber Converter System connection diagram
