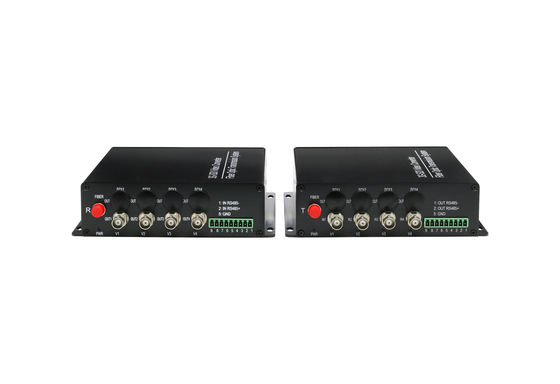

4 ch hd-sdi to fiber/4 channel hd-sdi over fiber optic Extender 3G/HD/SD-SDI

Large Image : 4 ch hd-sdi to fiber/4 channel hd-sdi over fiber optic Extender 3G/HD/SD-SDI

Product Details:

Place of Origin:	China
Brand Name:	Ho-link/OEM
Certification:	CE/ROHS/FCC
Model Number:	HL-1V-20T/R/3G-SDI

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pair
Price:	Negotiable
Packaging Details:	Neutral /Standard/Customized packing
Delivery Time:	3 working days after received your payment
Payment Terms:	T/T or western Union or Paypal
Supply Ability:	6000pairs per month

Contact Now

Detailed Product Description

Product Name:	3G-SDI Video Over Fiber Converter	Application:	3G SDI HDTV Live System
Video Channel:	1	Video Bandwidth:	2.97Gbps
Standard:	CE/ROHS/FCC	Warranty:	3 Years
Highlight:	3g hd sdi , cctv camera video converter

HDTV live broadcast system 1Ch 1080P 3G SDI to Fiber Converter transmitter receiver 85mm x 76mm x 30mm

Overview:

Ho-link 1Ch 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.

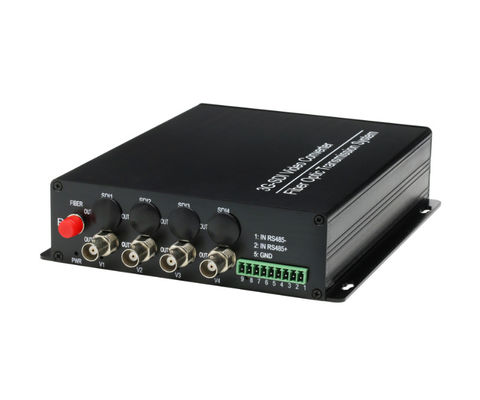

4 ch hd-sdi to fiber/4 channel hd-sdi over fiber optic Extender 3G/HD/SD-SDI

Feature:

« 1-ch unidirectional HD-SDI video with embedded audio over one fiber

« Range from 19.4Mb/s to 1.485Gb/s

« SMPTE 292M (1.485Gb/s) clock recovery

« Support all SMPTE 295M standard, 143Mb/s - 360Mb/s

« Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard

« Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)

« 150m automatic cable equalization, allthe1.485 Gb/sratebelow(Belden 1694A)

« Optional network management system

« LED status indicators monitor the critical parameters

Specification:

Serial TV BNC Input
TV signal standard	SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s - 1.485Gb/s)
Input channel	1
Reflection loss	>15DB
Equilibrium	0-150m @ 1.485Gb/s
Connector	75Ω BNC

Optic Output
Channel	1
Type	Single-mode fiber (multimode optional)
Wavelength	1310nm /1550nm
Reflection loss	> 15dB
Jitter	< 0.2UI
Connector	FC/PC(SC/PC optional)
Ethernet	1-port 1000M or 100M RJ45 optional

Serial TV BNC Output (EO/OE)
Output channels	1
Signal level	800mV nominal
Rise/fall time	200Ps nominal
Overshoot	<10% amplitude
Reflection loss	> 15dB
Jitter	< 0.2UI
Connector	75Ω BNC

Power and environmental indicator
Operating temperature	-45℃~+50℃
Pressure	220VAC to 12VDC/1A
Power	12W
EMI/RFI	FCC Part 15 Class A, EU EMC standard
Average time trouble-free	>100000 hours

Other
Stand alone Dimension	483mm x270mm x45mm
Weight	2Kg

Application:

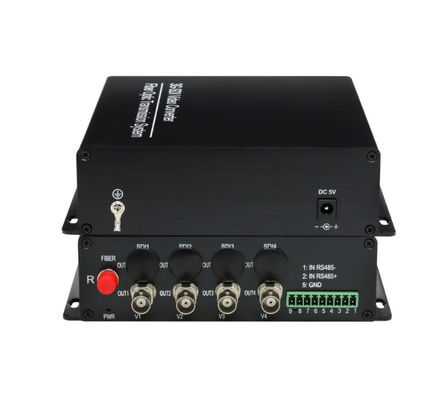

4 ch hd-sdi to fiber/4 channel hd-sdi over fiber optic Extender 3G/HD/SD-SDI
